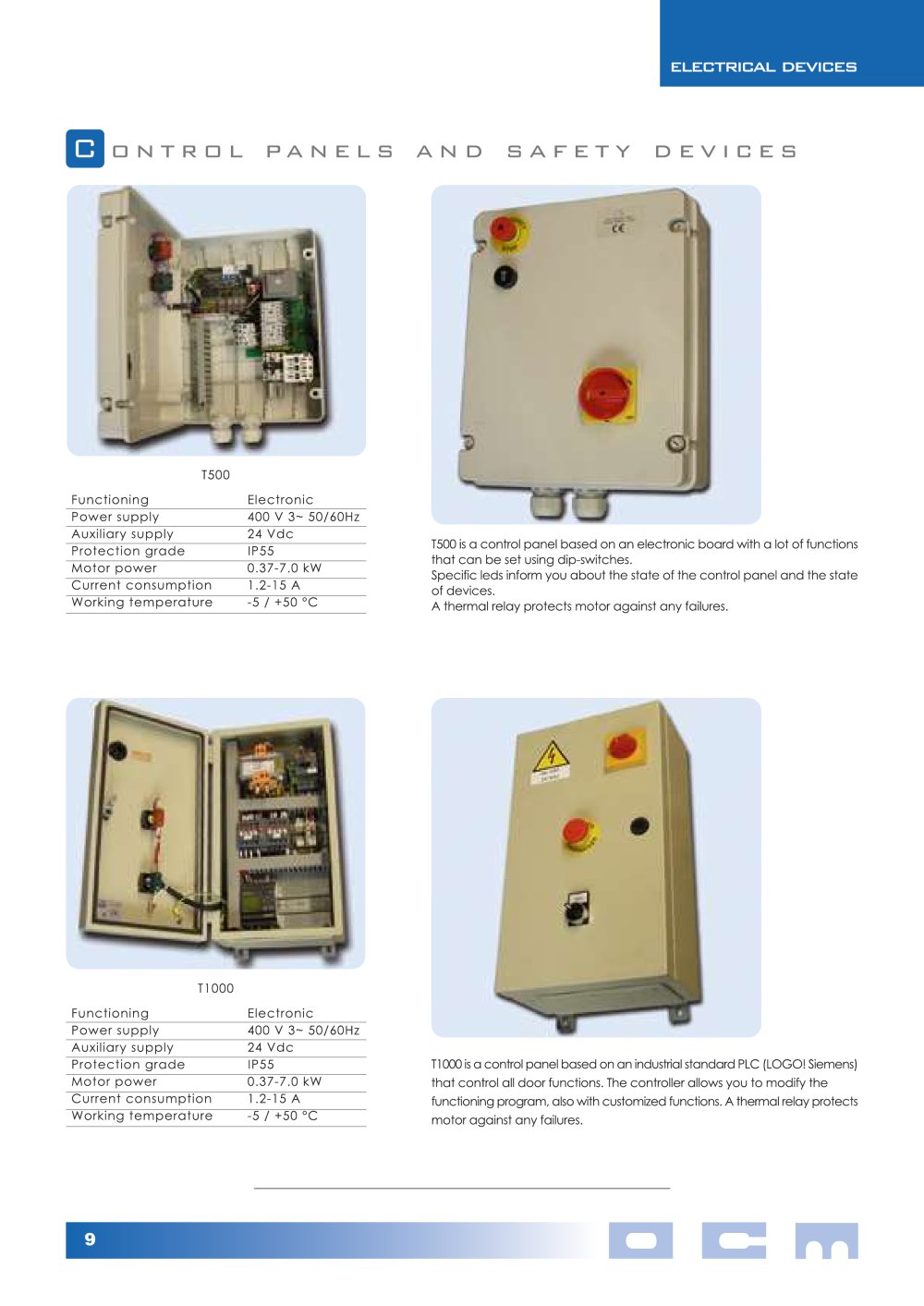

| ELECTRICAL DEVICES | ||||||||||||||||||||||||
| R □ l_ PANELS | AND | SAFE | D E V | |||||||||||||||||||||
| T500 | ||||||||||||||||||||||||
| Functioning Power supply Auxiliary supply Protection grade Motor power Current consumption Working temperature | Electronic 400 V 3~ 50/60HZ 24 Vdc_ IP55 0.37-7.0 kW 1.2-15 A -5 / +50 °C | |||||||||||||||||||||||
| T500 is a control panel based on an electronic board with a lot of functions that can be set using dip-switches. Specific leds inform you about the state of the control panel and the state of devices. A thermal relay protects motor against any failures. | ||||||||||||||||||||||||
| T1000 | ||||||||||||||||||||||||
| Electronic 400 V 3- 50/60HZ 24 Vdc_ IP55 0.37-7.0 kW 1.2-15 A -5 / +50 °C | ||||||||||||||||||||||||
| Functioning Power supply Auxiliary supply Protection grade Motor power Current consumption Working temperature | ||||||||||||||||||||||||
| Tl 000 is a control panel based on an industrial standard PLC (LOGO! Siemens] that control all door functions. The controller allows you to modify the functioning program, also with customized functions. A thermal relay protects motor against any failures. | ||||||||||||||||||||||||
| E3 c= m | ||||||||||||||||||||||||
