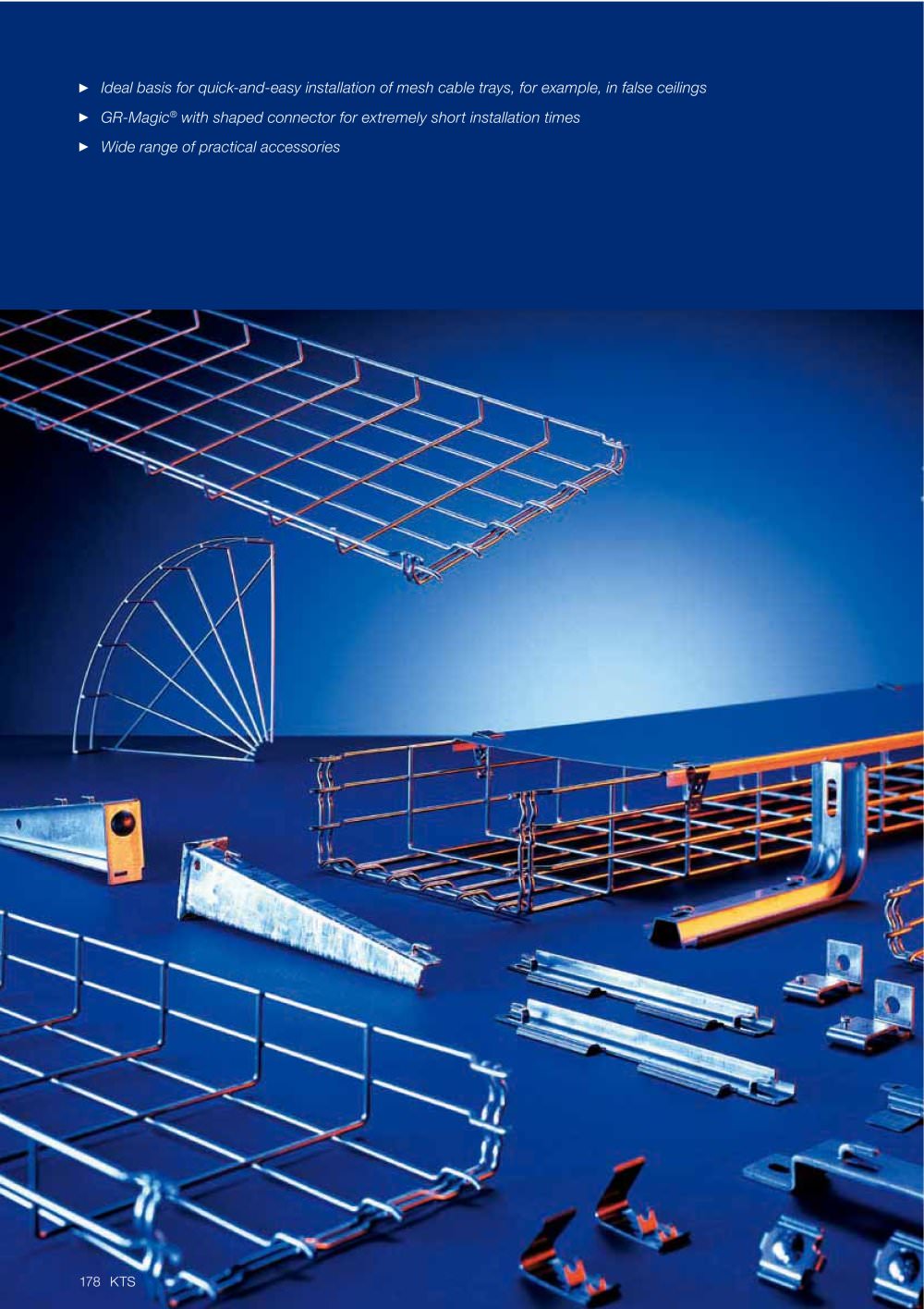

► Ideal basis for quick-and-easy installation of mesh cable trays, for example, in false ceilings ► GR-Magic® with shaped connector for extremely short installation times ► Wide range of practical accessories

 Open the catalogue to page 1

Mesh cable tray systems GR-Magic® type overview and components 182 System overview Mesh cable tray system 35 Mesh cable tray system 55 Mesh cable tray system 105 C mesh cable tray system 50

 Open the catalogue to page 2

Quick and exible. Increased installation performance Installation performance with GR-Magic® Installation performance with standard mesh cable tray

 Open the catalogue to page 3

For a purely straight connection, neither connection components nor installation tools are required. The right shape means that location Child's play: simply push one of the mesh caPle trays into the other from tached just as easily. The finished straight connection is as staple as a traditional screw con- nection - with the same perfect electrical properties. system GR-Magic® Installation time is Pecoming ever more important in the decision for or against a product. OBO has made a decisive improvement to previous systems, and thus redefined the term quick installation. The OBO GR-Magic® mesh...

 Open the catalogue to page 4

Type overview and components GR-Magic®mesh cable tray systems Mesh cable tray widths Galvanisation type: electro galvanisation, hot-dip galvanisation Mesh cable tray widths: Galvanisation types: electro galvanisation, hot-dip galvanisation, steel galvanisation Irrespective of side height

 Open the catalogue to page 5

System overview GR-Magic® Mesh cable tray system Side height 35, 55, 105 mm

 Open the catalogue to page 7

C mesh cable tray system Side height 50 mm

 Open the catalogue to page 8

Mesh cable tray systems Mesh cable tray system Mesh cable tray system GRMagic® Mesh cable trays Type GRM Side height: 35, 55, 105 mm Surface: G, F, FT Fittings: According to side heights Connecting parts Only with cut mesh cable trays Classification According to DIN EN 61537 OBO Bettermann's mesh cable tray systems are the ideal basis for quick, safe and economical cable routing in all areas of professional electrical installations. The GR-Magic® mesh cable tray system with shaped connector for screwless quick mounting guarantees the shortest possible installation times, even for complex installation...

 Open the catalogue to page 9

Mesh cable tray systems Mesh cable tray system Straight connection of Magic® mesh cable tray Creation of a screwless straight connection of the mesh cable tray, type GR-Magic®, by interconnecting two stock lengths. Ceiling mounting with TP support and bracket Screwless mounting of a mesh cable tray on brackets of type TPSAG/... Screwless straight connection with quick connectors Creation of a screwless straight connection of mesh cable trays using a quick connector, type GRV. 04_KTS_Katalog_2008 / en / 29/10/2008 (LLExport_00004) Installation of a mesh cable tray bend Installation of a mesh cable...

 Open the catalogue to page 10

Mesh cable tray systems Mesh cable tray system Suspension of a mesh cable tray using threaded rod, type 2078, and central hanger, type K12 1818. Use with widths of up to 200 mm. Suspension with central hanger Suspension of a mesh cable tray with central hanger, type GMS, and clamp, type GKS 50. Mounting plate Screwless quick fastening of the mounting plate, type MP UNI. Vertical mesh cable tray installation Vertical mesh cable tray mounting, fixed with beam clamp, type BFK, and clamp, type GKS 50, to steel girder. 188 KTS Trapeze suspension Wall mounting of mesh cable trays Suspension of a mesh...

 Open the catalogue to page 11

Mesh cable tray systems Mesh cable tray system Creation of a mesh cable tray bend - angular - After appropriate cutting of the mesh cable trays, they can, together with joint connectors, type GSV 34, and a bent slotted steel strap, be combined to a non-overlapping, angular mesh cable tray bend. Creation of a mesh cable tray tee After cutting the side rails and bending the straps, the corner connector, type GEV 36, and the joint connector, type GSV 34, can be used to create tees. Creation of a reduction Cutting out every second grid allows the creation of mesh cable tray bends with a larger radius....

 Open the catalogue to page 12

OBQ Mesh cable tray systems Mesh cable tray system 35 Mesh cable tray GR-Magic® Barrier strip Mesh cable tray with shaped connector of side height 35 mm. No additional connection components are required for the mesh cable tray, it is simply interlocked. Load diagram, GR-Magic mesh cable tray, type GRM 35 Rail bend in mm at permitted Max. possible cable load at greatest possible width Permitted cable tray / ladder load in kN/m without man load Cable tray/ladder width in mm System accessories: DRLU Cover Barrier strip for separation of cables of different voltages or functions. Always indicate the...

 Open the catalogue to page 13

Mesh cable tray systems QBO Mesh cable tray system 55 Mesh cable tray GR-Magic® Mesh cable tray with shaped connector of side height 55 mm. No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 55/50 = 20 x 100 mm). Load diagram, GR-Magic mesh cable tray, type GRM 55 Rail bend in mm at permitted Max. possible cable load at greatest possible width Permitted cable tray / ladder load in kN/m without man load Cable tray/ladder width in mm Mesh cable tray GR-Magic® with barrier strip Mesh cable tray with shaped...

 Open the catalogue to page 14

OBQ Mesh cable tray systems Mesh cable tray system 55 Mesh cable tray GR-Magic® with barrier strip Mesh cable tray with shaped connector and two welded barrier strips of side height 55 mm. No additional connection components are required for the mesh cable tray, it is simply interlocked. Load diagram, GR-Magic mesh cable tray, type GRM-2T 55 Rail bend in mm at permitted Max. possible cable load at greatest possible width Permitted cable tray / ladder load in kN/m without man load Cable tray/ladder width in mm Barrier strip Barrier strip for separation of cables of different voltages or functions. 90°...

 Open the catalogue to page 15

Mesh cable tray systems QBO Mesh cable tray system 105 Mesh cable tray GR-Magic® perm, load: Mesh cable tray with shaped connector of side height 105 mm. No additional connection components are required for the mesh cable tray, it is simply interlocked Load diagram, mesh cable tray, type GRM 105 Rail bend in mm at permitted Max. possible cable load at greatest possible width Permitted cable tray / ladder load in kN/m without man load Cable tray/ladder width in mm Barrier strip for separation of cables of different voltages or functions. System accessories: Always indicate the item number when...

 Open the catalogue to page 16
