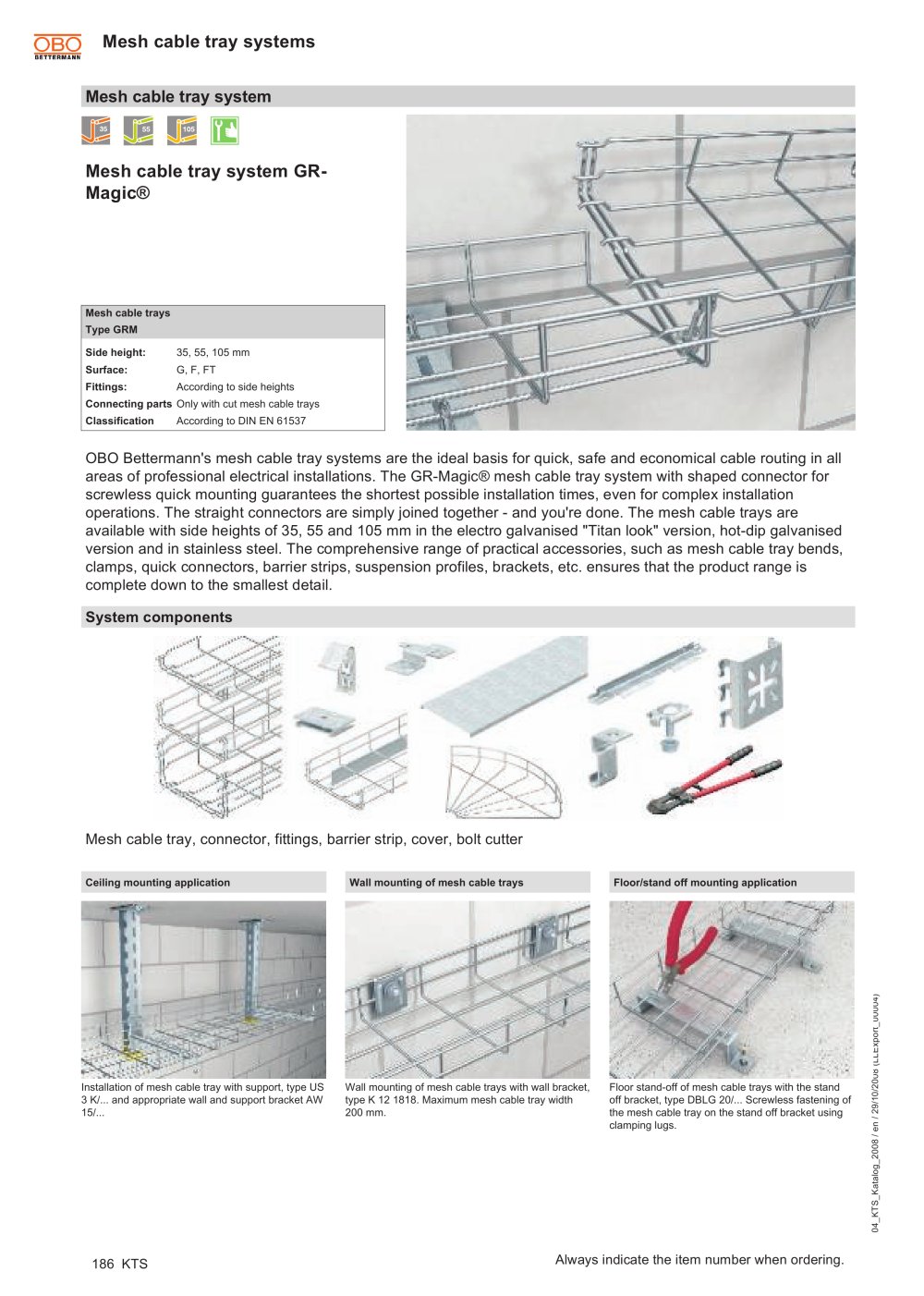

186 KTS 04_KTS_Katalog_2008 / en / 29/10/2008 (LLExport_00004) Mesh cable tray systems Always indicate the item number when ordering. Mesh cable tray system Mesh cable tray, connector, fittings, barrier strip, cover, bolt cutter System components OBO Bettermann's mesh cable tray systems are the ideal basis for quick, safe and economical cable routing in all areas of professional electrical installations. The GR-Magic® mesh cable tray system with shaped connector for screwless quick mounting guarantees the shortest possible installation times, even for complex installation operations. The straight connectors are simply joined together - and you're done. The mesh cable trays are available with side heights of 35, 55 and 105 mm in the electro galvanised "Titan look" version, hot-dip galvanised version and in stainless steel. The comprehensive range of practical accessories, such as mesh cable tray bends, clamps, quick connectors, barrier strips, suspension profiles, brackets, etc. ensures that the product range is complete down to the smallest detail. Mesh cable tray system GRMagic ® Mesh cable trays Type GRM Side height: 35, 55, 105 mm Surface: G, F, FT Fittings: According to side heights Connecting parts Only with cut mesh cable trays Classification According to DIN EN 61537 Ceiling mounting application Installation of mesh cable tray with support, type US 3 K/... and appropriate wall and support bracket AW 15/... Wall mounting of mesh cable trays Wall mounting of mesh cable trays with wall bracket, type K 12 1818. Maximum mesh cable tray width 200 mm. Floor/stand off mounting application Floor stand-off of mesh cable trays with the stand off bracket, type DBLG 20/... Screwless fastening of the mesh cable tray on the stand off bracket using clamping lugs.
