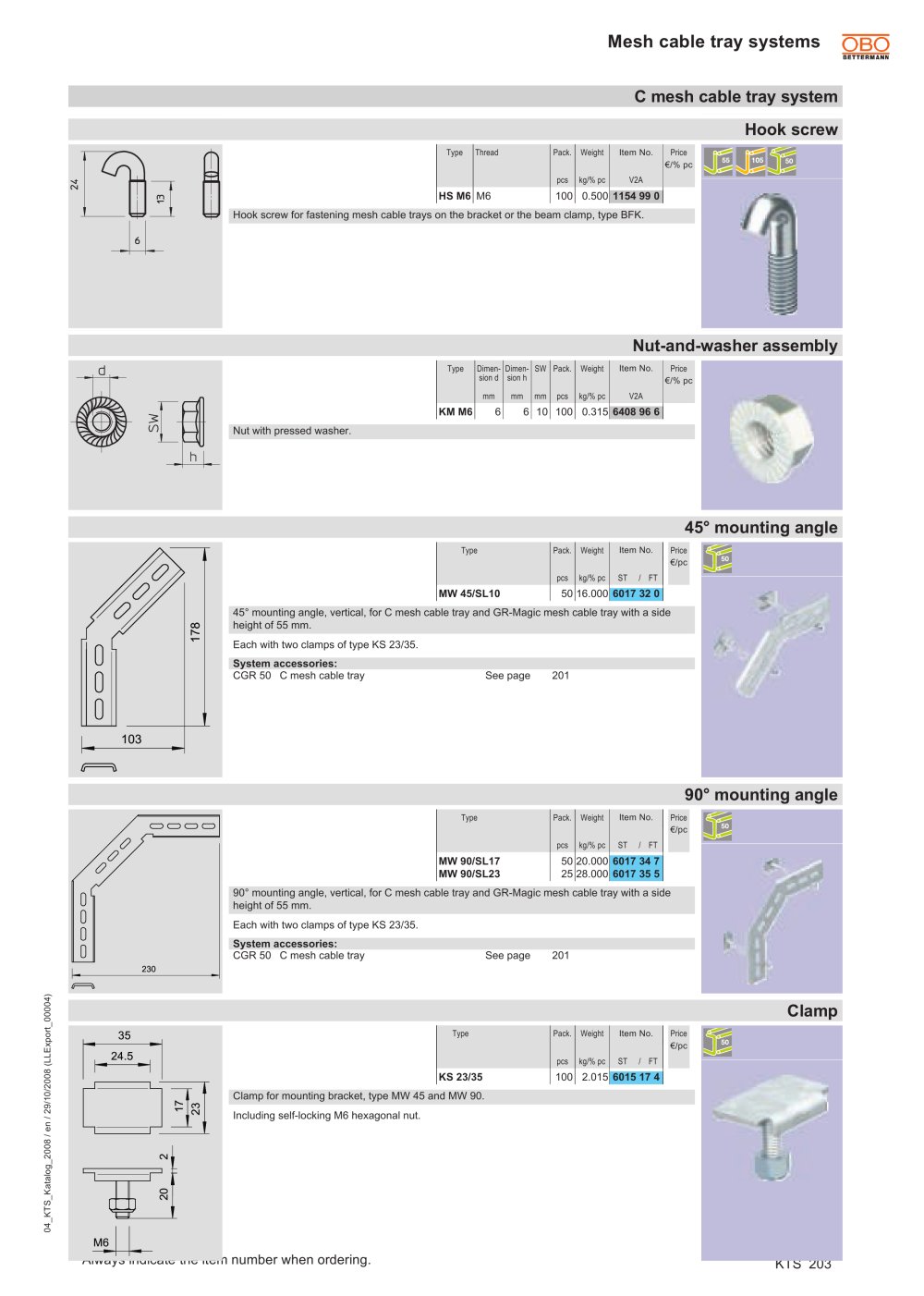

KTS 203 04_KTS_Katalog_2008 / en / 29/10/2008 (LLExport_00004) Mesh cable tray systems Always indicate the item number when ordering. C mesh cable tray system Hook screw for fastening mesh cable trays on the bracket or the beam clamp, type BFK. Hook screw Thread M6 HS M6 Type 1154 99 0 Item No. V2A 0.500 kg/% pc Weight 100 pcs Pack. Price €/% pc Nut with pressed washer. Nut-and-washer assembly mm Dimension d 6 mm Dimension h 6 mm SW 10 KM M6 Type 6408 96 6 Item No. V2A 0.315 kg/% pc Weight 100 pcs Pack. Price €/% pc Each with two clamps of type KS 23/35. 45° mounting angle, vertical, for C mesh cable tray and GR-Magic mesh cable tray with a side height of 55 mm. CGR 50 C mesh cable tray See page 2÷01 System accessories: 45° mounting angle MW 45/SL10 Type 6017 32 0 Item No. ST / FT 16.000 kg/% pc Weight 50 pcs Pack. Price €/pc 178 103 Each with two clamps of type KS 23/35. 90° mounting angle, vertical, for C mesh cable tray and GR-Magic mesh cable tray with a side height of 55 mm. CGR 50 C mesh cable tray See page 2÷01 System accessories: 90° mounting angle MW 90/SL17 Type 6017 34 7 Item No. ST / FT 20.000 kg/% pc Weight 50 pcs Pack. M W 90/SL23 25 28.000 6017 35 5 Price €/pc 230 Including self-locking M6 hexagonal nut. Clamp for mounting bracket, type MW 45 and MW 90. Clamp KS 23/35 Type 6015 17 4 Item No. ST / FT 2.015 kg/% pc Weight 100 pcs Pack. Price €/pc 2 20 M6 17 23 24.5 35
