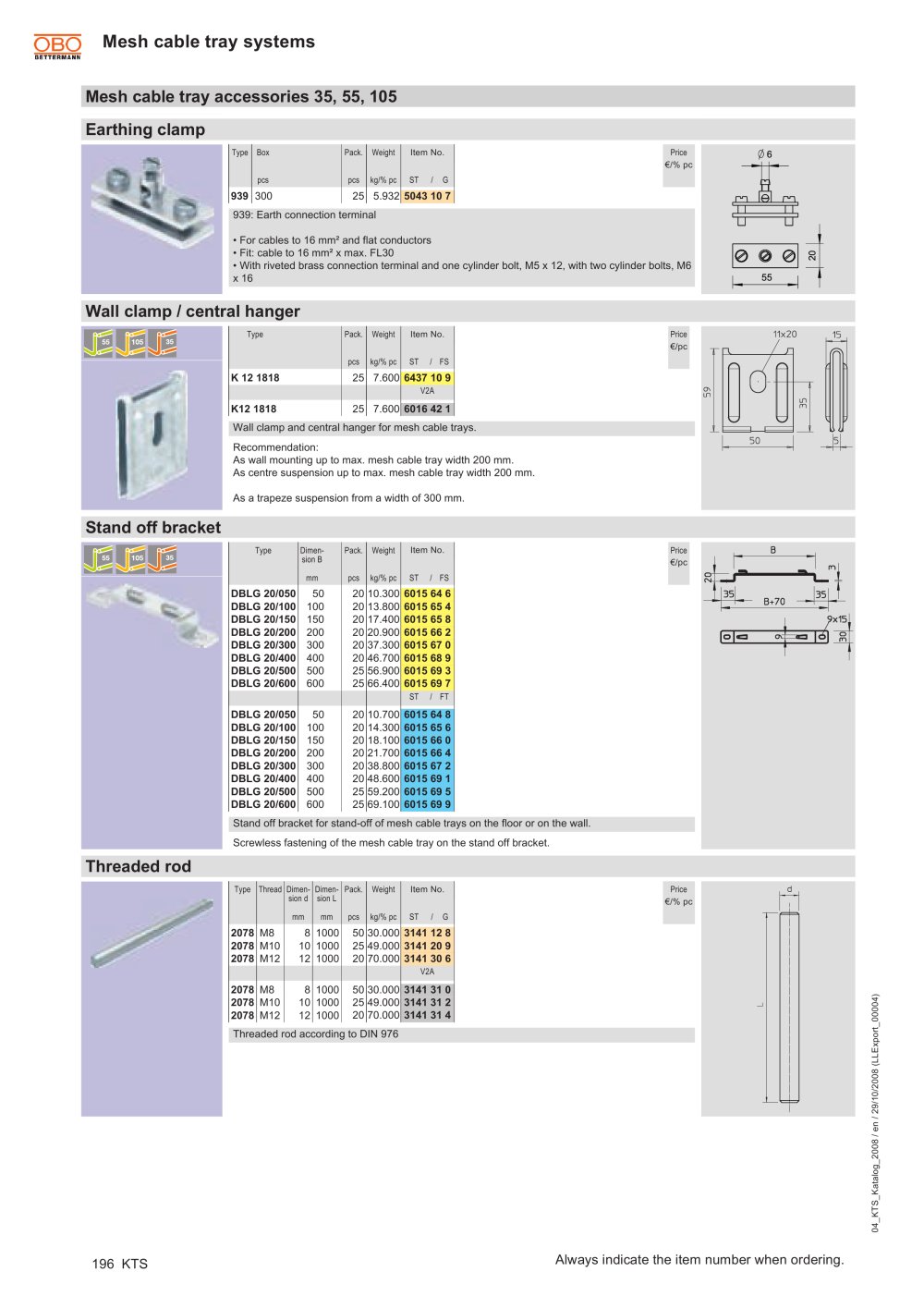

196 KTS 04_KTS_Katalog_2008 / en / 29/10/2008 (LLExport_00004) Mesh cable tray systems Always indicate the item number when ordering. Mesh cable tray accessories 35, 55, 105 939: Earth connection terminal • For cables to 16 mm² and flat conductors • Fit: cable to 16 mm² x max. FL30 • With riveted brass connection terminal and one cylinder bolt, M5 x 12, with two cylinder bolts, M6 x 16 Earthing clamp pcs Box 300 939 Type 5043 10 7 Item No. ST / G 5.932 kg/% pc Weight 25 pcs Pack. Price €/% pc 6 20 55 Recommendation: As wall mounting up to max. mesh cable tray width 200 mm. As centre suspension up to max. mesh cable tray width 200 mm. As a trapeze suspension from a width of 300 mm. Wall clamp and central hanger for mesh cable trays. Wall clamp / central hanger K 12 1818 Type 6437 10 9 Item No. ST / FS 7.600 kg/% pc Weight 25 pcs Pack. K12 1818 6016 42 1 V2A 7.600 25 Price €/pc Screwless fastening of the mesh cable tray on the stand off bracket. Stand off bracket for stand-off of mesh cable trays on the floor or on the wall. Stand off bracket mm Dimension B 50 DBLG 20/050 Type 6015 64 6 Item No. ST / FS 10.300 kg/% pc Weight 20 pcs Pack. D BLG 20/100 100 20 13.800 6015 65 4 D BLG 20/150 150 20 17.400 6015 65 8 D BLG 20/200 200 20 20.900 6015 66 2 D BLG 20/300 300 20 37.300 6015 67 0 D BLG 20/400 400 20 46.700 6015 68 9 D BLG 20/500 500 25 56.900 6015 69 3 D BLG 20/600 600 25 66.400 6015 69 7 50 DBLG 20/050 6015 64 8 ST / FT 10.700 20 D BLG 20/100 100 20 14.300 6015 65 6 D BLG 20/150 150 20 18.100 6015 66 0 D BLG 20/200 200 20 21.700 6015 66 4 D BLG 20/300 300 20 38.800 6015 67 2 D BLG 20/400 400 20 48.600 6015 69 1 D BLG 20/500 500 25 59.200 6015 69 5 D BLG 20/600 600 25 69.100 6015 69 9 Price €/pc Threaded rod according to DIN 976 Threaded rod Thread M8 mm Dimension d 8 mm Dimension L 1000 2078 Type 3141 12 8 Item No. ST / G 30.000 kg/% pc Weight 50 pcs Pack. 2 078 M 10 10 1 000 25 49.000 3141 20 9 2 078 M 12 12 1 000 20 70.000 3141 30 6 M8 8 1000 2078 3141 31 0 V2A 30.000 50 2 078 M 10 10 1 000 25 49.000 3141 31 2 2 078 M 12 12 1 000 20 70.000 3141 31 4 Price €/% pc
