OBO

BETTERNIANN

Adapter plates


400
	320
		240
		160

14 x 28

L3 Type


L1	L2	A	B	L3	L4
40	60	140	35	60	30
50	65	270	40	65	42

KA-AW 30 KA-AW 80

Adapter plate for bracket type AW30, AW55 and AW80

The adapter plate Is used In particular to take high loads with large, unsupported spans.

Suitable for all standard brackets of series AW 30, AW 55 and AW 80 according to the load table.

Can be used individually,

a) clamped to steel supports using clamping angles, suitable for flange widths 120 - 300 mm.

b) fixing to concrete, taking into account load classes and anchor ratings.


Type	Pack. qty	Weight kg/pc	Ord. no. FT

KA-AW 30 KA-AW 80	1 1	2.600 4.500	6346 71 5 6346 73 1

KA-AW 30 suitable for

AW 30/21-61 AW 55/21-41

KA-AW 80 suitable for

AW 55/51-101 AW 80/21-81

Mounting accessories,

anchors, clamping angles and brackets with associated bolts must be ordered separately as required.

For mounting the bracket to the adapter plate, mounting bolts type SKS 1240 GF M12 x 40 complete with nut, washer and large area washer must be ordered separately.

The large area washer is only required for AW 80/...

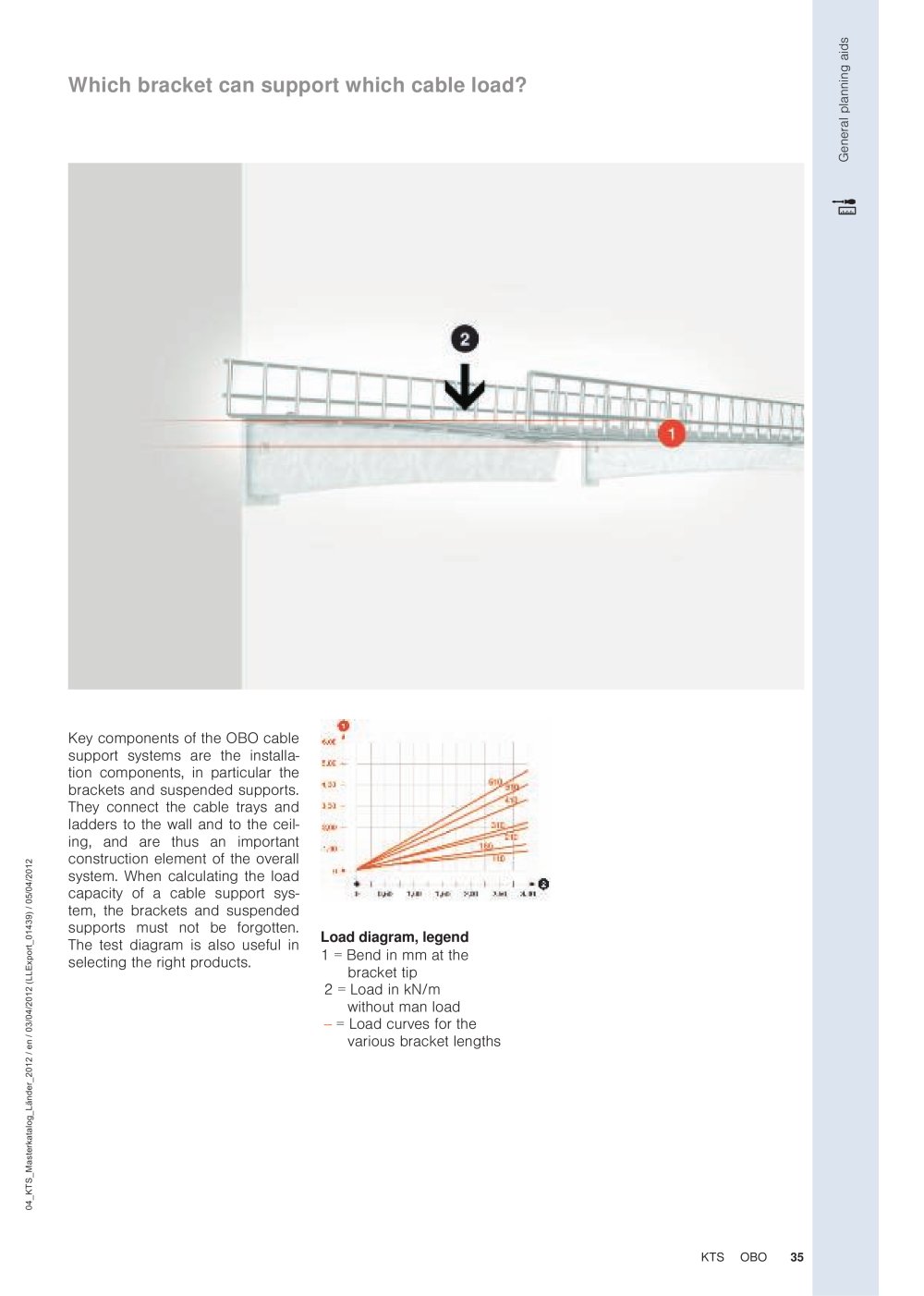

The table below gives the load-bearing capacity of the brackets, reduced in some cases:


Bracket type	Adap. type	Fmax./kN Bracket type		Adap. type	Fmax./kN
AW-30/21-61	KA-AW-30	3.0	AW-80/21	KA-AW-80	7.87
AW-55/21-41	KA-AW-30	5.5	AW-80/31	KA-AW-80	7.66
AW-55/51	KA-AW-80	5.5	AW-80/41	KA-AW-80	7.19
AW-55/61	KA-AW-80	5.5	AW-80/51	KA-AW-80	7.04
AW-55/71	KA-AW-80	5.5	AW-80/61	KA-AW-80	6.65
AW-55/81	KA-AW-80	4.65	AW-80/71	KA-AW-80	5.99
AW-55/91	KA-AW-80	4.34	AW-80/81	KA-AW-80	5.52
AW-55/101	KA-AW-80	4.03

FT Steel, hot-dip galvanised to DIN EN ISO 1461

Hexagon head bolt


Type	Pack. qty	Weight kg/pc	Ord. no. F
SKS 1240 GF	10	0.098	3164 02 0

F Steel, hot-dip galvanised to DIN 267 Part 10

M12 x 40 with nut, large area washer and washer

Please always state the ordering number when ordering.
