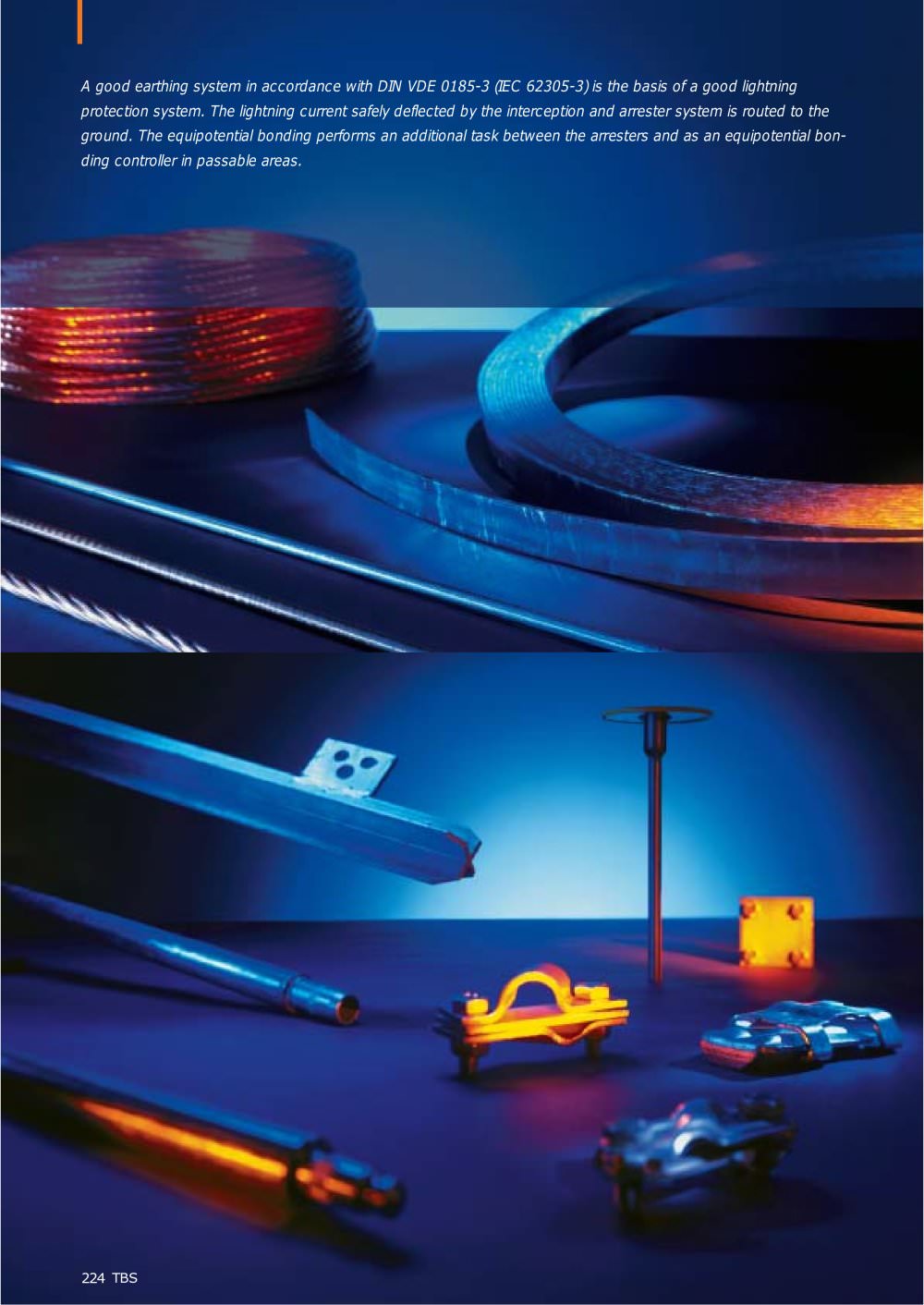

A good earthing system in accordance with DIN VDE 0185-3 (IEC 62305-3) is the basis of a good lightning protection system. The lightning current safely deflected by the interception and arrester system is routed to the ground. The equipotential bonding performs an additional task between the arresters and as an equipotential bonding controller in passable areas. 224 TBS

 Open the catalogue to page 1

Earthing systems System overview from page 226 Principles from page 228 Products from page 230 TBS 225

 Open the catalogue to page 2

Earthing systems System overview Potential equalisation from P. 166 systems Earth fixing point from P. 240 Conducter material from P. 228 Connection termin 226 TBS

 Open the catalogue to page 3

nal Corrosionproofing band from P. 243 from P. 239 TBS 227

 Open the catalogue to page 4

Planning an earthing system The earthing system is part of the external lightning protection system, which routes the lightning current into the ground where it is to be distributed. The key criteria for an even lightning current distribution without dangerous surges occurring are form and dimensions. In accordance with DIN VDE 0185 Part 3 (IEC 60305-3) Section 4.4.1, a lower earthing resistance < 10 ⍀ is generally recommended. An earthing system can be constructed from one of the three arrangements described below. It is possible to connect different earthing arrangements, although the risk of...

 Open the catalogue to page 5

Ring earthers (surface earthers) Outside the building, at least 80% of the ring earther´s overall length must be in contact with the ground. It must be installed as a closed ring at a distance of 1.0 m and a depth of 0.5 m around the external foundation of the building. A ring earther is an earther according to arrangement type B. The following materials can be used: ᮣ ᮣ ᮣ ᮣ ᮣ Flat conductor galvanised steel 30 x 3.5 mm Flat conductor stainless steel 30 x 3.5 mm Round conductor copper, Ø 8 mm Round conductor Ø 10 mm, galvanised steel Round conductor Ø 10 mm, stainless steel In potentially corrosive...

 Open the catalogue to page 6

Earthing systems Flat conductor, steel galvanised 5052: Flat conductor/strip steel in rings • Zinc layer: 225 g/m2 (approx. 30 |jm) Application: foundation earthing, not laid in ground. Flat conductor, steel galvanised for ground 5052: Flat conductor/strip steel in rings (conforms to DIN EN 50164-2) • Zinc layer: 500 g/m2 (approx. 70 urn) Area of application: Lightning protection and earthing Flat conductors, stainless steel 5052VA: Flat conductor/strip steel in rings 1 Conforms to the requirements according to DIN V VDE V 0185-3, Table t ■ From stainless steel, for use in potentially corrosive...

 Open the catalogue to page 7

Conduction material Conduction material Conduction material Conduction material Conduction material Earthing systems • RD 10 can also be used in earth • Galvanised steel • Zinc coating: 50 urn average value (approx. 350 g/m2) Round conductor, copper • Conforms to the requirements according to VDE V 0185-305, (IEC 62305) • Conforms to the requirements according to VDE V 0185-305, (IEC 62305) • From stainless steel V4A, for use in ground Round conductor with PVC sheathing • Conforms to the requirements according to VDE V 0185-305, (IEC 62305) • Conforms to the requirements according to VDE V 0185-305,...

 Open the catalogue to page 8

Earthing systems Deep earther and plate earther Length Outer-0 Pack. Weight Item No 219/.. ST: Earthing rod connection for standard applications: • High corrosion resistance • With peg and bore for linking together • Round pegs with two knurls • Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305) Deep earther and plate earther • Expandable earthing rod system for erecting earthing connections type A) • High corrosion protection with reinforced zinc layer • Also suitable for difficult soil conditions • The LightEarth earthing system is connected using the pre-mounted sleeve •...

 Open the catalogue to page 9

Deep earther and plate earther Earthing systems Earthing rod system OMEX 219/..: Earthing rod connection in robust design • DIN 48852, Form Z, "OMEX" system • With peg and bore for linking together • With hardened steel pins • Version FT with zinc support, min. 60 urn • Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305) Deep earther and plate earther Impact point for earthing rod system LE point 0 25 mm: Striking point for mounting on earthing rods • Suitable for LightEarth system 1819/..BP: Striking point for mounting on earthing rod connection 1819/...: Striking point for...

 Open the catalogue to page 10

Earthing systems Deep earther and plate earther 2510/20: Hammer insert for vibration hammers • Manufactured by Atlas Copco, type FB 60 S-Super • Fits earthing rod system ST, BP and OMEX Hammer inserts for vibration hammers of other types and manufacturer on request. 2535/...: Hammer insert for vibration hammers • Fits earthing rod system ST, BP and OMEX • Fits earthing rod system ST, BP and OMEX Always indicate the article number when ordering.

 Open the catalogue to page 11

Deep earther and plate earther Earthing systems Hammer insert for earthing rod LE hammer: Hammer insert for vibration hammers • Suitable for LightEarth system • 3043618 for Atlas Copco (Sechskantaufnahme) Deep earther and plate earther Prices according to DEL notation; see material references. 101/A...: Interception rods, rounded ends • Both ends rounded 101/F...: Interception rod with connection tabs • With 2 attaching holes 0 12 mm 200: Both ends rounded 204/KS: Multi-purpose ground insertion rod • With flange-welded connection lug Rd 10 (final metre) • With mounted heat-shrunk hose (corrosion...

 Open the catalogue to page 12

Earthing systems Earth entry rods Deep earther and plate earther Prices according to DEL notation; see material references. 204/KL: Ground insertion rod, steel, hot-dip galvanised with separating piece 223/DIN and 204/KL-CU: Ground insertion rod, copper with separating piece 223/MS-DIN and connector Profile rod earth connection Deep earther and plate earther Earthing plate • With 2 m round conductor lugs Rd 10 • Does not conform to DIN 48852, Part 1 Deep earther and plate earther Always indicate the article number when ordering.
