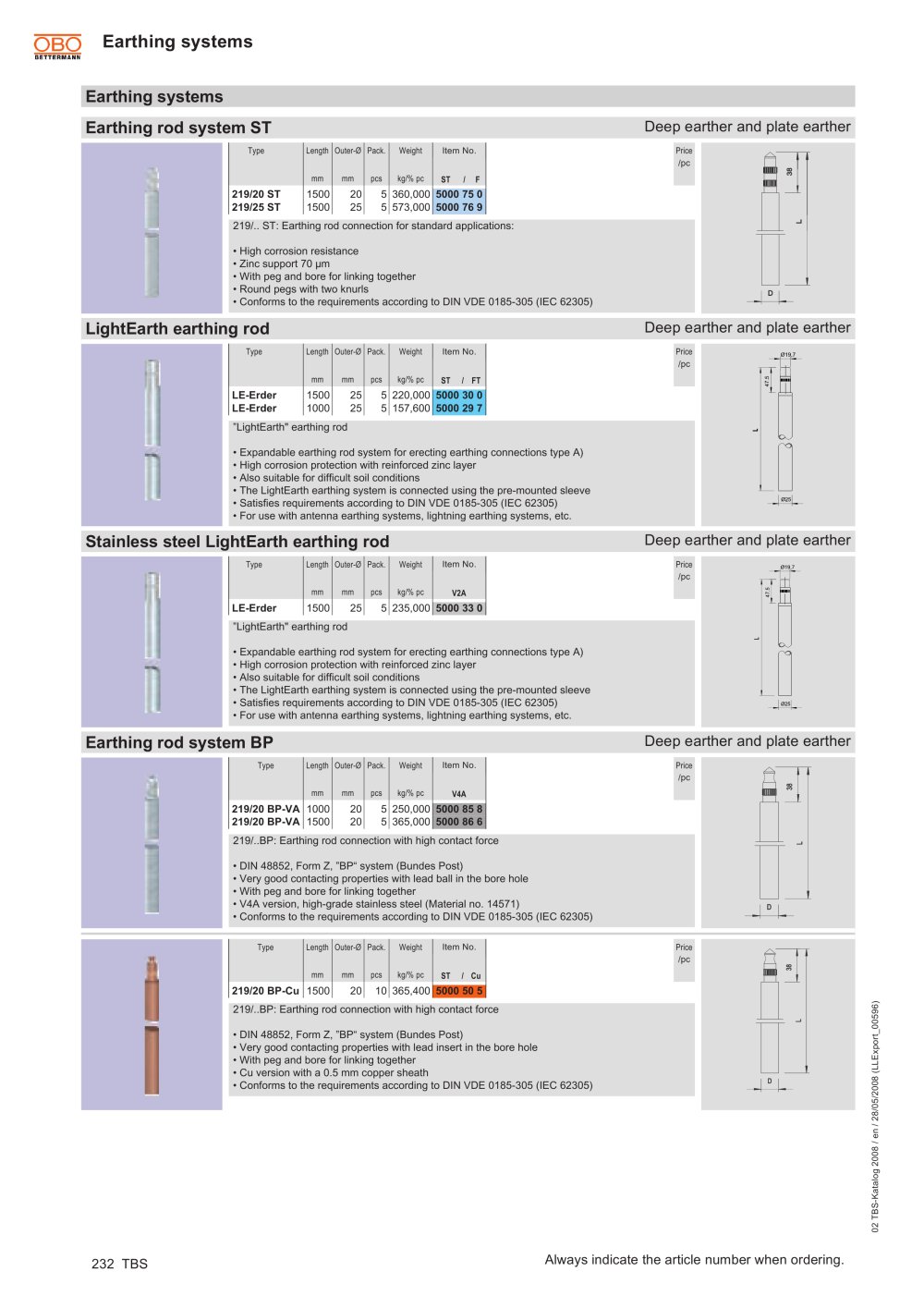

232 TBS 02 TBS-Katalog 2008 / en / 28/05/2008 (LLExport_00596) Earthing systems Always indicate the article number when ordering. Earthing systems 219/.. ST: Earthing rod connection for standard applications: • High corrosion resistance • Zinc support 70 ìm • With peg and bore for linking together • Round pegs with two knurls • Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305) Earthing rod system ST Deep earther and plate earther 219/20 ST Type mm Length 1500 mm Outer-Ø 20 5000 75 0 Item No. ST / F 5 pcs Pack. 360,000 kg/% pc Weight 2 19/25 ST 1 500 25 5 573,000 5000 76 9 Price /pc ”LightEarth" earthing rod • Expandable earthing rod system for erecting earthing connections type A) • High corrosion protection with reinforced zinc layer • Also suitable for difficult soil conditions • The LightEarth earthing system is connected using the pre-mounted sleeve • Satisfies requirements according to DIN VDE 0185-305 (IEC 62305) • For use with antenna earthing systems, lightning earthing systems, etc. LightEarth earthing rod Deep earther and plate earther LE-Erder Type mm Length 1500 mm Outer-Ø 25 5000 30 0 Item No. ST / FT 5 pcs Pack. 220,000 kg/% pc Weight L E-Erder 1 000 25 5 157,600 5000 29 7 Price /pc ”LightEarth" earthing rod • Expandable earthing rod system for erecting earthing connections type A) • High corrosion protection with reinforced zinc layer • Also suitable for difficult soil conditions • The LightEarth earthing system is connected using the pre-mounted sleeve • Satisfies requirements according to DIN VDE 0185-305 (IEC 62305) • For use with antenna earthing systems, lightning earthing systems, etc. Stainless steel LightEarth earthing rod Deep earther and plate earther LE-Erder Type mm Length 1500 mm Outer-Ø 25 5000 33 0 Item No. V2A 5 pcs Pack. 235,000 kg/% pc Weight Price /pc 219/..BP: Earthing rod connection with high contact force • DIN 48852, Form Z, ”BP“ system (Bundes Post) • Very good contacting properties with lead ball in the bore hole • With peg and bore for linking together • V4A version, high-grade stainless steel (Material no. 14571) • Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305) Earthing rod system BP Deep earther and plate earther 219/20 BP-VA Type mm Length 1000 mm Outer-Ø 20 5000 85 8 Item No. V4A 5 pcs Pack. 250,000 kg/% pc Weight 2 19/20 BP-VA 1 500 20 5 365,000 5000 86 6 Price /pc 219/..BP: Earthing rod connection with high contact force • DIN 48852, Form Z, ”BP“ system (Bundes Post) • Very good contacting properties with lead insert in the bore hole • With peg and bore for linking together • Cu version with a 0.5 mm copper sheath • Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305) 219/20 BP-Cu Type mm Length 1500 mm Outer-Ø 20 5000 50 5 Item No. ST / Cu 10 pcs Pack. 365,400 kg/% pc Weight Price /pc
