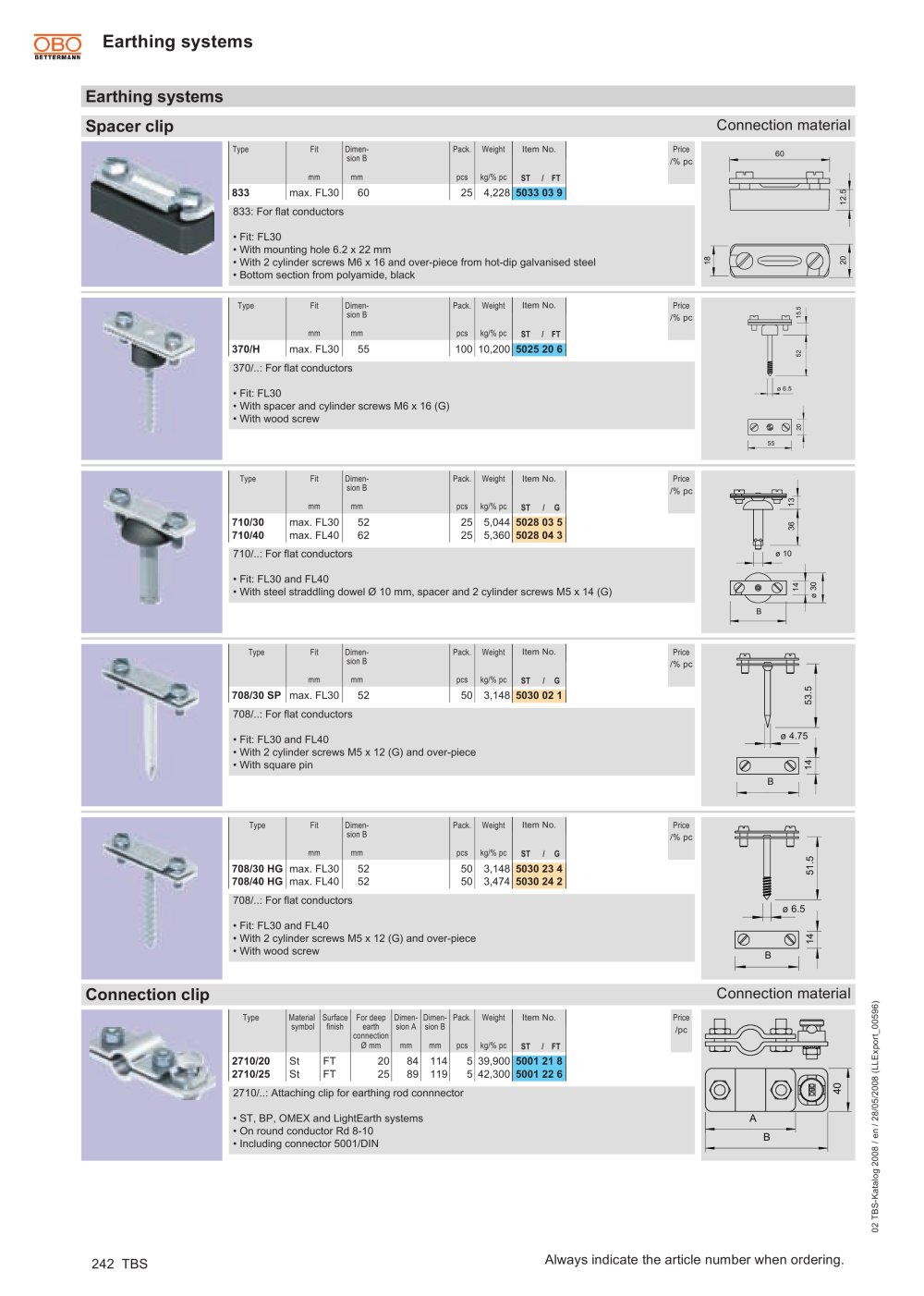

242 TBS 02 TBS-Katalog 2008 / en / 28/05/2008 (LLExport_00596) Earthing systems Always indicate the article number when ordering. Earthing systems 833: For flat conductors • Fit: FL30 • With mounting hole 6.2 x 22 mm • With 2 cylinder screws M6 x 16 and over-piece from hot-dip galvanised steel • Bottom section from polyamide, black Spacer clip Connection material 833 Type mm Fit max. FL30 mm Dimension B 60 5033 03 9 Item No. ST / FT 25 pcs Pack. 4,228 kg/% pc Weight Price /% pc 20 12.5 18 60 370/..: For flat conductors • Fit: FL30 • With spacer and cylinder screws M6 x 16 (G) • With wood screw 370/H Type mm Fit max. FL30 mm Dimension B 55 5025 20 6 Item No. ST / FT 100 pcs Pack. 10,200 kg/% pc Weight Price /% pc ø 6.5 52 15.5 20 55 710/..: For flat conductors • Fit: FL30 and FL40 • With steel straddling dowel Ø 10 mm, spacer and 2 cylinder screws M5 x 14 (G) 710/30 Type mm Fit max. FL30 mm Dimension B 52 5028 03 5 Item No. ST / G 25 pcs Pack. 5,044 kg/% pc Weight 7 10/40 m ax. FL40 62 25 5,360 5028 04 3 Price /% pc ø 10 14 ø 30 B 36 13 708/..: For flat conductors • Fit: FL30 and FL40 • With 2 cylinder screws M5 x 12 (G) and over-piece • With square pin 708/30 SP Type mm Fit max. FL30 mm Dimension B 52 5030 02 1 Item No. ST / G 50 pcs Pack. 3,148 kg/% pc Weight Price /% pc B 14 53.5 ø 4.75 708/..: For flat conductors • Fit: FL30 and FL40 • With 2 cylinder screws M5 x 12 (G) and over-piece • With wood screw 708/30 HG Type mm Fit max. FL30 mm Dimension B 52 5030 23 4 Item No. ST / G 50 pcs Pack. 3,148 kg/% pc Weight 7 08/40 HG m ax. FL40 52 50 3,474 5030 24 2 Price /% pc ø 6.5 B 51.5 14 2710/..: Attaching clip for earthing rod connnector • ST, BP, OMEX and LightEarth systems • On round conductor Rd 8-10 • Including connector 5001/DIN Connection clip Connection material 2710/20 Type Material symbol St Surface finish FT Ø mm For deep earth connection 20 mm Dimension A 84 mm Dimension B 114 5001 21 8 Item No. ST / FT 5 pcs Pack. 39,900 kg/% pc Weight 2 710/25 S t F T 25 89 119 5 42,300 5001 22 6 Price /pc 40 A B
