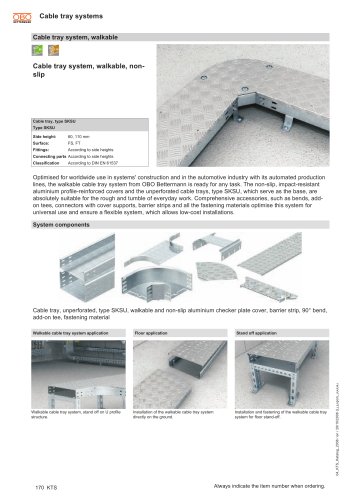

Cable tray system, walkable
Cable tray system, walkable, nonslip
Cable tray, type SKSU
Type SKSU
Side height:
60, 110 mm
Surface:
FS, FT
Fittings:
According to side heights
Connecting parts According to side heights
Classification
According to DIN EN 61537
Optimised for worldwide use in systems' construction and in the automotive industry with its automated production
lines, the walkable cable tray system from OBO Bettermann is ready for any task. The non-slip, impact-resistant
aluminium profile-reinforced covers and the unperforated cable trays, type SKSU, which serve as the base, are
absolutely suitable for the rough and tumble of everyday work. Comprehensive accessories, such as bends, addon tees, connectors with cover supports, barrier strips and all the fastening materials optimise this system for
universal use and ensure a flexible system, which allows low-cost installations.
System components
Cable tray, unperforated, type SKSU, walkable and non-slip aluminium checker plate cover, barrier strip, 90° bend,
add-on tee, fastening material
Walkable cable tray system, stand off on U profile
structure.
170 KTS
Floor application
Installation of the walkable cable tray system
directly on the ground.
Stand off application
Installation and fastening of the walkable cable tray
system for floor stand-off.
