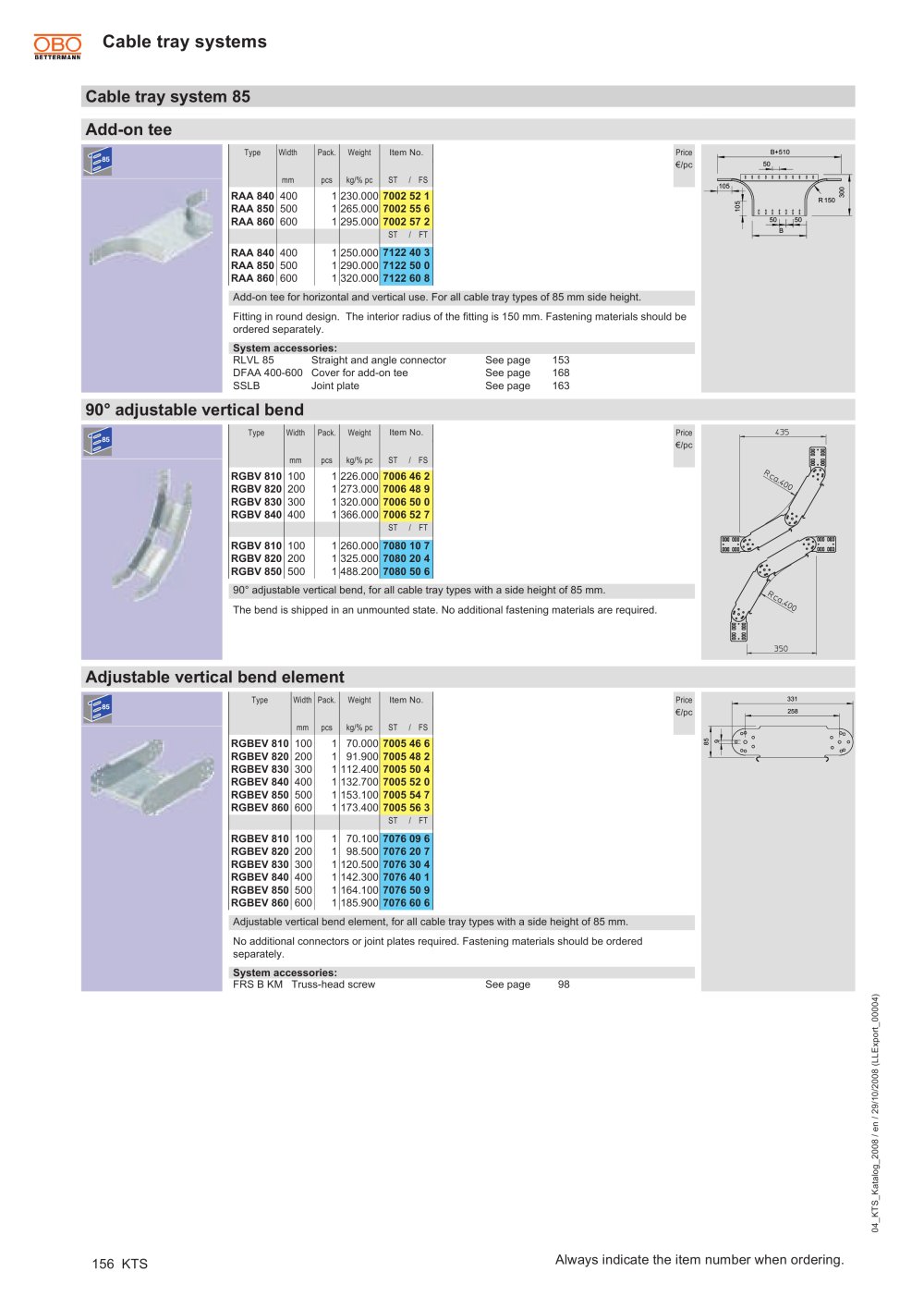

156 KTS
04_KTS_Katalog_2008 / en / 29/10/2008 (LLExport_00004)
Cable tray systems
Always indicate the item number when ordering.
Cable tray system 85
Fitting in round design. The interior radius of the fitting is 150 mm. Fastening materials should be
ordered separately.
Add-on tee for horizontal and vertical use. For all cable tray types of 85 mm side height.
RLVL 85 Straight and angle connector See page 1÷53
System accessories:
DFAA 400-600 Cover for add-on tee See page 1÷68
SSLB Joint plate See page 1÷63
Add-on tee
mm
Width
400
RAA 840
Type
7002 52 1
Item No.
ST / FS
230.000
kg/% pc
Weight
1
pcs
Pack.
R AA 850 500 1 265.000 7002 55 6
R AA 860 600 1 295.000 7002 57 2
400
RAA 840
7122 40 3
ST / FT
250.000
1
R AA 850 500 1 290.000 7122 50 0
R AA 860 600 1 320.000 7122 60 8
Price
€/pc 50
B+510
50 50
105
105
B
300
R150
The bend is shipped in an unmounted state. No additional fastening materials are required.
90° adjustable vertical bend, for all cable tray types with a side height of 85 mm.
90° adjustable vertical bend
mm
Width
100
RGBV 810
Type
7006 46 2
Item No.
ST / FS
226.000
kg/% pc
Weight
1
pcs
Pack.
R GBV 820 200 1 273.000 7006 48 9
R GBV 830 300 1 320.000 7006 50 0
R GBV 840 400 1 366.000 7006 52 7
100
RGBV 810
7080 10 7
ST / FT
260.000
1
R GBV 820 200 1 325.000 7080 20 4
R GBV 850 500 1 488.200 7080 50 6
Price
€/pc
No additional connectors or joint plates required. Fastening materials should be ordered
separately.
Adjustable vertical bend element, for all cable tray types with a side height of 85 mm.
FRS B KM Truss-head screw See page ÷98
System accessories:
Adjustable vertical bend element
mm
Width
100
RGBEV 810
Type
7005 46 6
Item No.
ST / FS
70.000
kg/% pc
Weight
1
pcs
Pack.
R GBEV 820 200 1 91.900 7005 48 2
R GBEV 830 300 1 112.400 7005 50 4
R GBEV 840 400 1 132.700 7005 52 0
R GBEV 850 500 1 153.100 7005 54 7
R GBEV 860 600 1 173.400 7005 56 3
100
RGBEV 810
7076 09 6
ST / FT
70.100
1
R GBEV 820 200 1 98.500 7076 20 7
R GBEV 830 300 1 120.500 7076 30 4
R GBEV 840 400 1 142.300 7076 40 1
R GBEV 850 500 1 164.100 7076 50 9
R GBEV 860 600 1 185.900 7076 60 6
Price
€/pc
331
258
85
9
