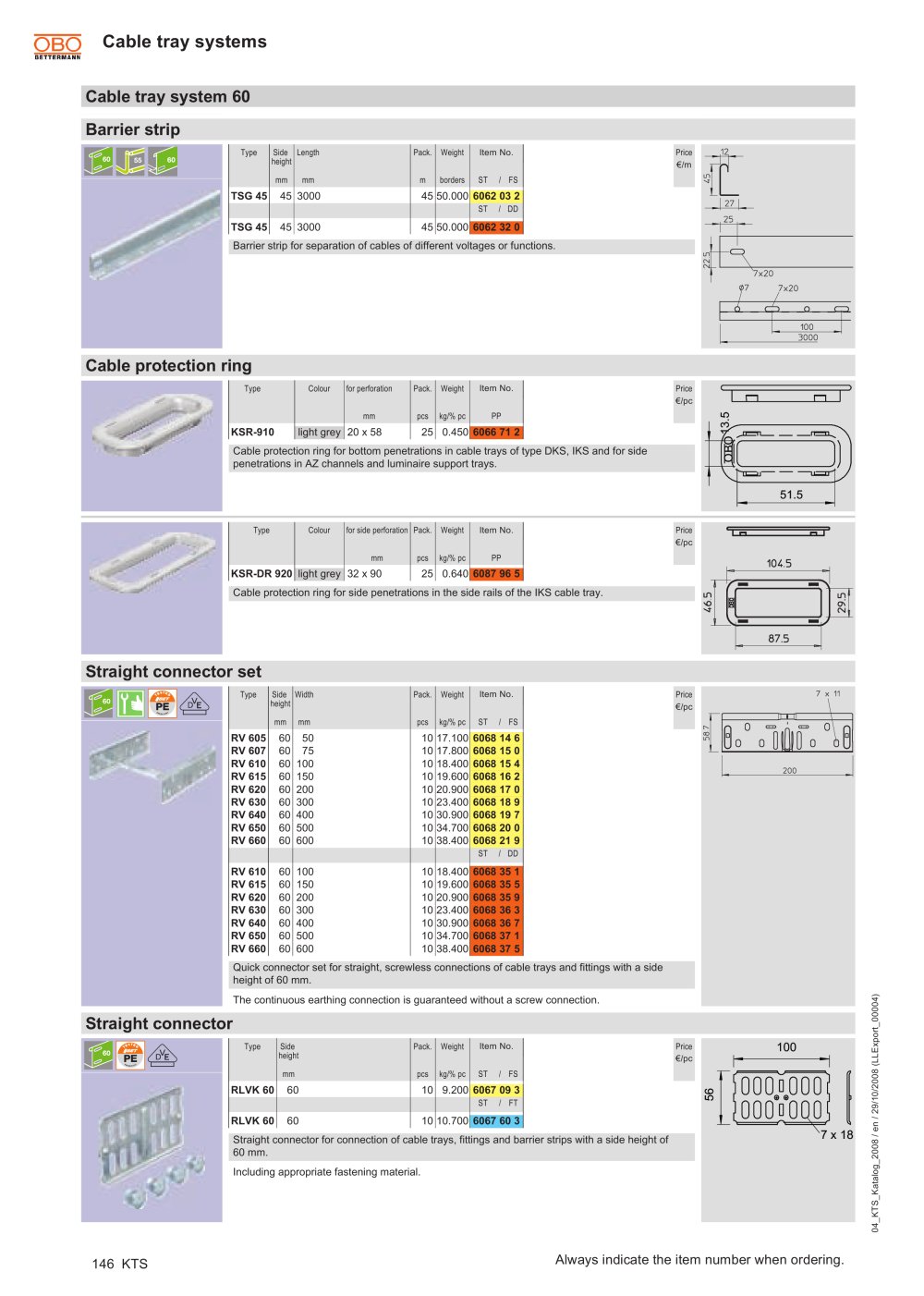

146 KTS
04_KTS_Katalog_2008 / en / 29/10/2008 (LLExport_00004)
Cable tray systems
Always indicate the item number when ordering.
Cable tray system 60
Barrier strip for separation of cables of different voltages or functions.
Barrier strip
mm
Side
height
45
mm
Length
3000
TSG 45
Type
6062 03 2
Item No.
ST / FS
50.000
borders
Weight
45
m
Pack.
45
3000
TSG 45
6062 32 0
ST / DD
50.000
45
Price
€/m
Cable protection ring for bottom penetrations in cable trays of type DKS, IKS and for side
penetrations in AZ channels and luminaire support trays.
Cable protection ring
Colour
light grey
mm
for perforation
20 x 58
KSR-910
Type
6066 71 2
Item No.
PP
0.450
kg/% pc
Weight
25
pcs
Pack.
Price
€/pc
OBO13.5
51.5
Cable protection ring for side penetrations in the side rails of the IKS cable tray.
Colour
light grey
mm
for side perforation
32 x 90
KSR-DR 920
Type
6087 96 5
Item No.
PP
0.640
kg/% pc
Weight
25
pcs
Pack.
Price
€/pc
The continuous earthing connection is guaranteed without a screw connection.
Quick connector set for straight, screwless connections of cable trays and fittings with a side
height of 60 mm.
Straight connector set
mm
Side
height
60
mm
Width
50
RV 605
Type
6068 14 6
Item No.
ST / FS
17.100
kg/% pc
Weight
10
pcs
Pack.
R V 607 60 75 10 17.800 6068 15 0
R V 610 60 100 10 18.400 6068 15 4
R V 615 60 150 10 19.600 6068 16 2
R V 620 60 200 10 20.900 6068 17 0
R V 630 60 300 10 23.400 6068 18 9
R V 640 60 400 10 30.900 6068 19 7
R V 650 60 500 10 34.700 6068 20 0
R V 660 60 600 10 38.400 6068 21 9
60
100
RV 610
6068 35 1
ST / DD
18.400
10
R V 615 60 150 10 19.600 6068 35 5
R V 620 60 200 10 20.900 6068 35 9
R V 630 60 300 10 23.400 6068 36 3
R V 640 60 400 10 30.900 6068 36 7
R V 650 60 500 10 34.700 6068 37 1
R V 660 60 600 10 38.400 6068 37 5
Price
€/pc
Including appropriate fastening material.
Straight connector for connection of cable trays, fittings and barrier strips with a side height of
60 mm.
Straight connector
mm
Side
height
60
RLVK 60
Type
6067 09 3
Item No.
ST / FS
9.200
kg/% pc
Weight
10
pcs
Pack.
60
RLVK 60
6067 60 3
ST / FT
10.700
10
Price
€/pc
7 x 18
56
100
