Cable tray systems
Always indicate the item number when ordering.

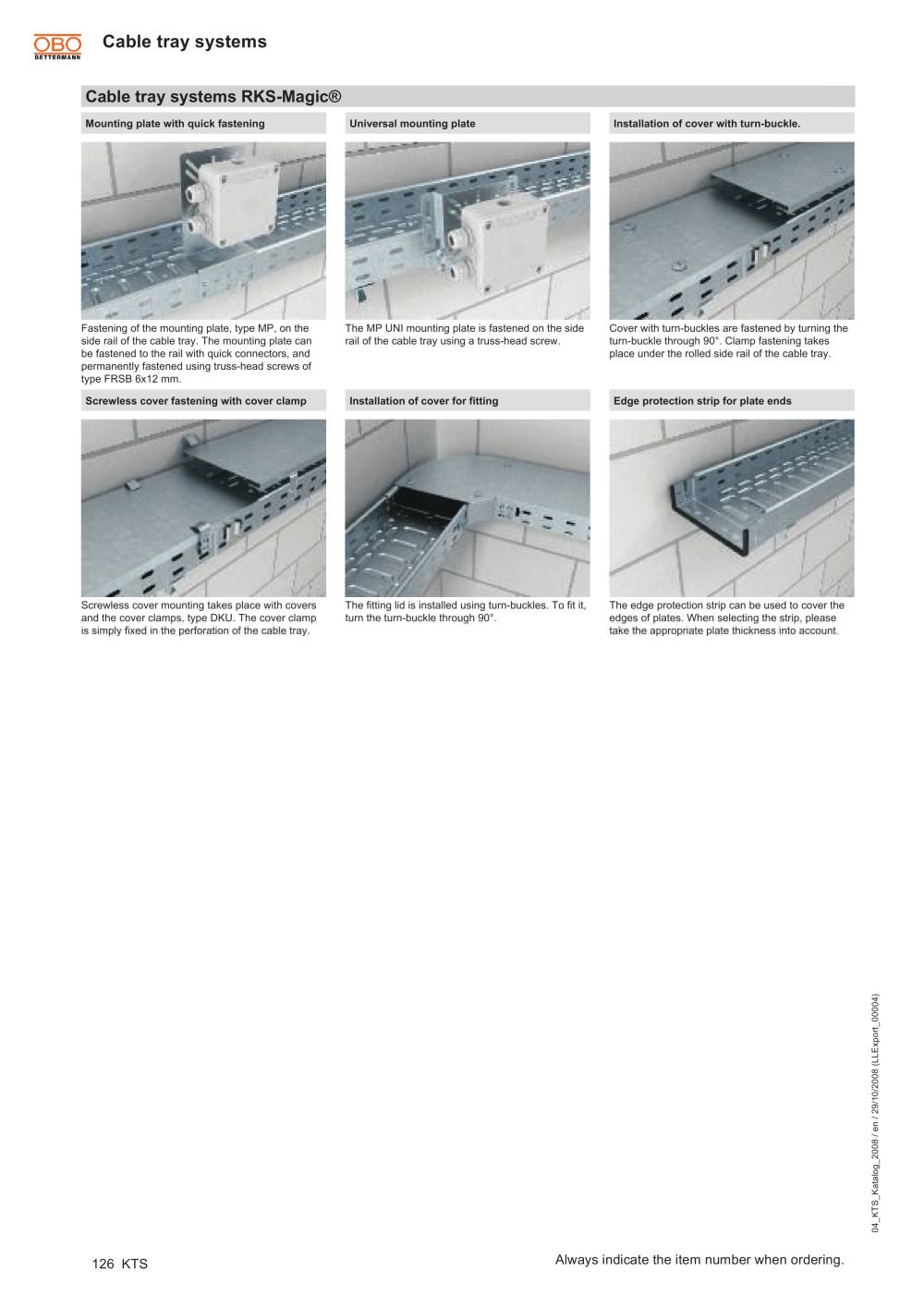

Cable tray systems RKS-Magic®
Mounting plate with quick fastening
Fastening of the mounting plate, type MP, on the
side rail of the cable tray. The mounting plate can
be fastened to the rail with quick connectors, and
permanently fastened using truss-head screws of
type FRSB 6x12 mm.
Universal mounting plate
The MP UNI mounting plate is fastened on the side
rail of the cable tray using a truss-head screw.
Installation of cover with turn-buckle.
Cover with turn-buckles are fastened by turning the
turn-buckle through 90°. Clamp fastening takes
place under the rolled side rail of the cable tray.
Screwless cover fastening with cover clamp
Screwless cover mounting takes place with covers
and the cover clamps, type DKU. The cover clamp
is simply fixed in the perforation of the cable tray.
Installation of cover for fitting
The fitting lid is installed using turn-buckles. To fit it,
turn the turn-buckle through 90°.
Edge protection strip for plate ends
The edge protection strip can be used to cover the
edges of plates. When selecting the strip, please
take the appropriate plate thickness into account.
