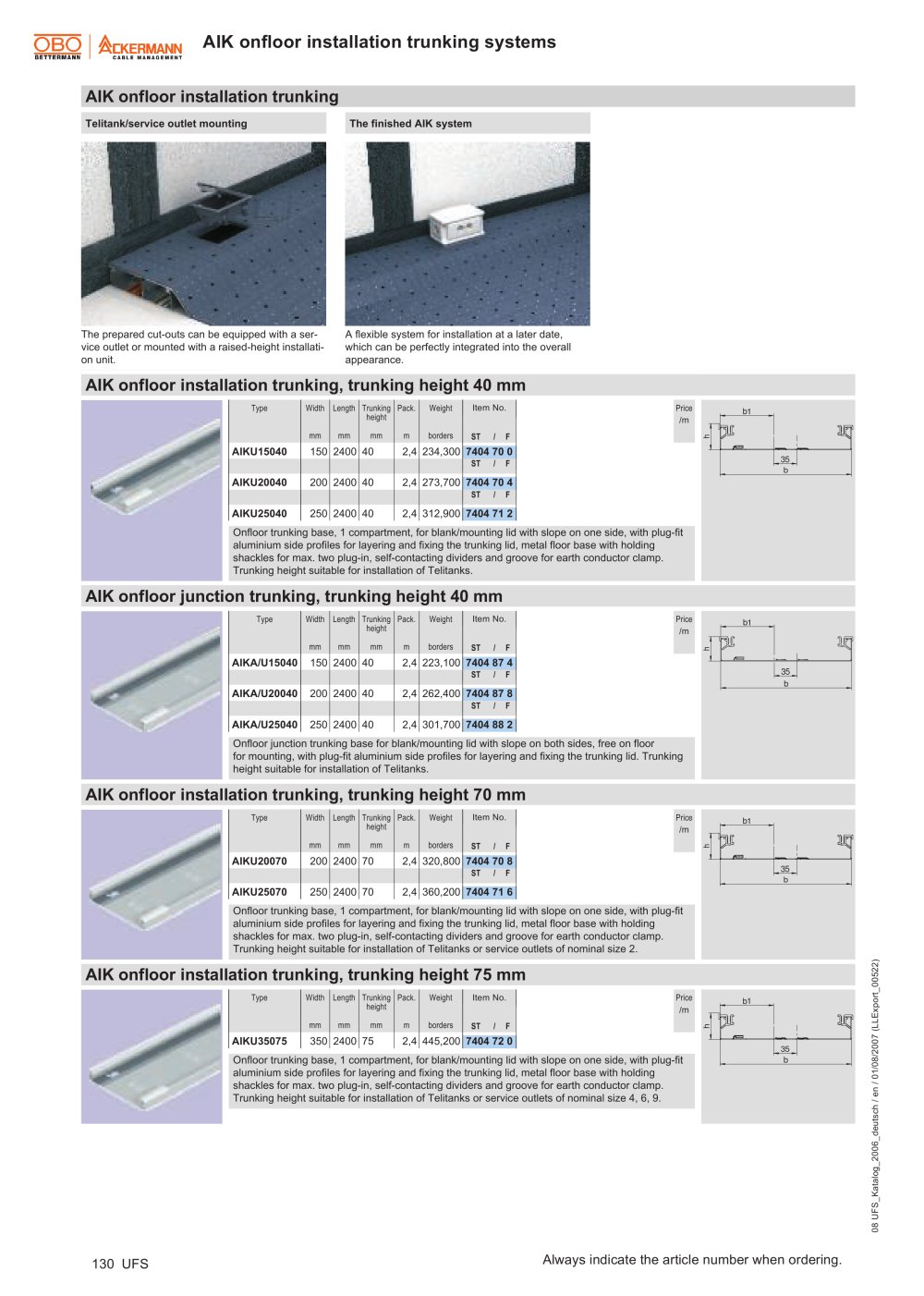

OBO I Ackermann AIK onfloor installation trunking systems
SETTERMAHN
AIK onfloor installation trunking
Telitank/service outlet mounting
The finished AIK system
The prepared cut-outs can be equipped with a ser­vice outlet or mounted with a raised-height installati­on unit.
A flexible system for installation at a later date, which can be perfectly integrated into the overall appearance.
AIK onfloor installation trunking, trunking height 40 mm
Type
Width
Length
Trunking
Pack.
Weight
Item No.
mm
mm
height mm
m
borders
ST / F
AIKU15040
150
2400
40
2,4
234,300
7404 70 0
ST / F
AIKU20040
200
2400
40
2,4
273,700
7404 70 4
ST / F
AIKU25040
250
2400
40
2,4
312,900
7404 71 2
Price
Im
Onfloor trunking base, 1 compartment, for blank/mounting lid with slope on one side, with plug-fit aluminium side profiles for layering and fixing the trunking lid, metal floor base with holding shackles for max. two plug-in, self-contacting dividers and groove for earth conductor clamp. Trunking height suitable for installation of Telitanks.
AIK onfloor junction trunking, trunking height 40 mm
Type
Width
Length
Trunking
Pack.
Weight
Item No.
mm
mm
height mm
m
borders
ST / F
AIKA/U15040
150
2400
40
2,4
223,100
7404 87 4
ST / F
AIKA/U20040
200
2400
40
2,4
262,400
7404 87 8
ST / F
AIKA/U25040
250
2400
40
2,4
301,700
7404 88 2
Price
Im
I Onfloorjunction trunking base for blank/mounting lid with slope on both sides, free on floor
I for mounting, with plug-fit aluminium side profiles for layering and fixing the trunking lid. Trunking
I height suitable for installation of Telitanks.
AIK onfloor installation trunking, trunking height 70 mm
Type
Width
Length
Trunking
Pack.
Weight
Item No.
mm
mm
height mm
m
borders
ST / F
AIKU20070
200
2400
70
2,4
320,800
7404 70 8
ST / F
AIKU25070
250
2400
70
2,4
360,200
7404 71 6
Price
Im
Onfloor trunking base, 1 compartment, for blank/mounting lid with slope on one side, with plug-fit aluminium side profiles for layering and fixing the trunking lid, metal floor base with holding shackles for max. two plug-in, self-contacting dividers and groove for earth conductor clamp. Trunking height suitable for installation of Telitanks or service outlets of nominal size 2.
tM tM
in o
o
Q.
LU _J _l
AIK onfloor installation trunking, trunking height 75 mm
Type
Width
Length
Trunking
Pack.
Weight
Item No.
mm
mm
height mm
m
borders
ST / F
AIKU35075
350
2400
75
2,4
445,200
7404 72 0
Price
/m
O O
M
g 5
Onfloor trunking base, 1 compartment, for blank/mounting lid with slope on one side, with plug-fit aluminium side profiles for layering and fixing the trunking lid, metal floor base with holding shackles for max. two plug-in, self-contacting dividers and groove for earth conductor clamp. Trunking height suitable for installation of Telitanks or service outlets of nominal size 4, 6, 9.
CD
Always indicate the article number when ordering.
