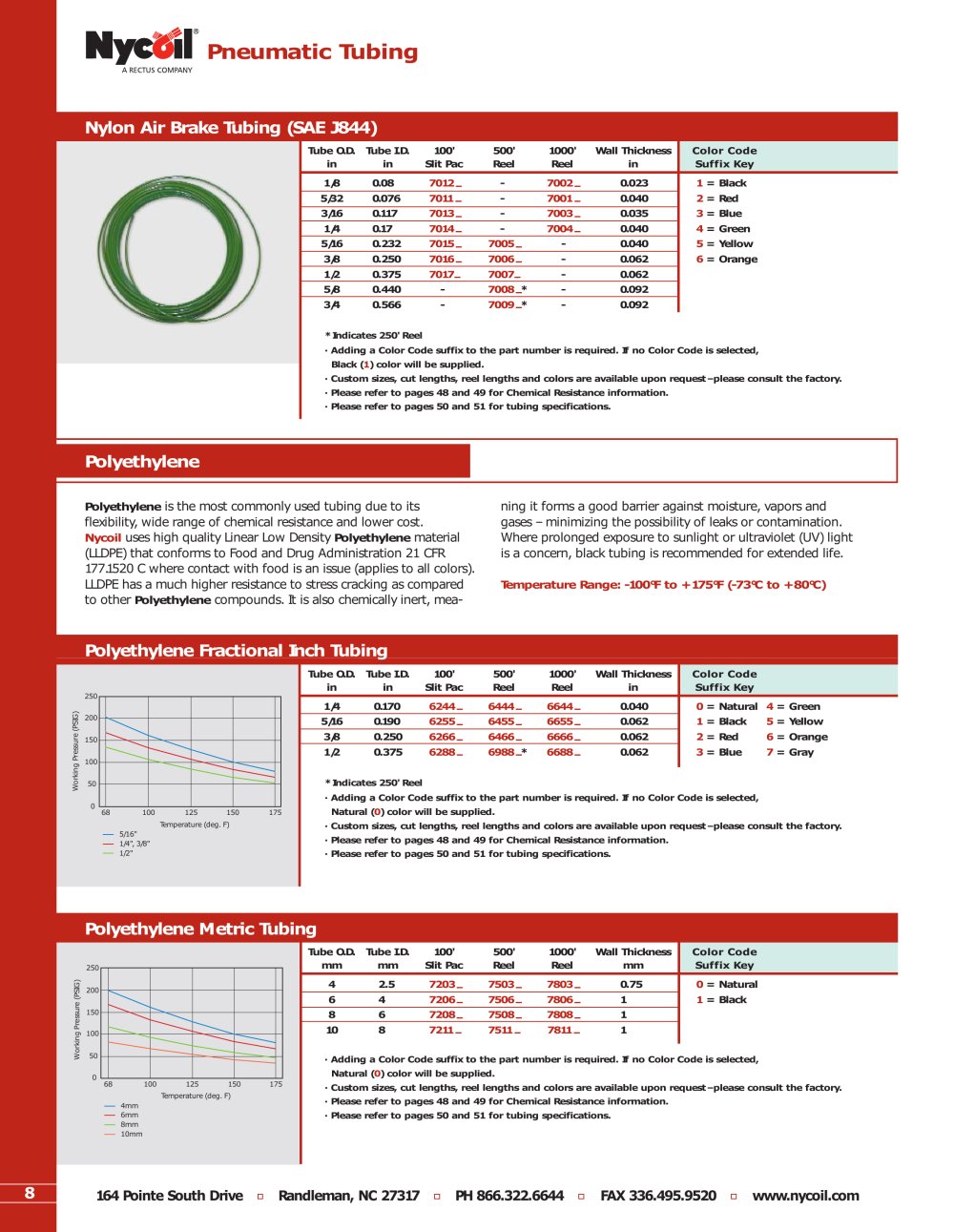

Pneumatic Tubing

Nylon Air Brake Tubing (SAE J844)


Tube OlD.	Tube I.D.	100'	500'	1000'	Wall Thickness	Color Code
in	in	Slit Rae	Reel	Reel	in	Suffix Key
1/8	0.08	7012_	-	7002_	0.023	1 = Black
5/32	0.076	7011_	-	7001 _	0.040	2 = Red
3/16	0.117	7013_	-	7003_	0.035	3 = Blue
1/4	0.17	7014_	-	7004 _	0.040	4 = Green
5/16	0.232	7015_	7005_	-	0.040	5 = Yellow
3/8	0.250	7016_	7006_	-	0.062	6 = Orange
1/2	0.375	7017_	7007_	-	0.062
5/8	0.440	-	7008 _*	-	0.092
3/4	0.566	■	7009 _*	■	0.092

* Indicates 250' Reel

' Adding a Color Code suffix to the part number is required. If no Color Code is selected,

Black (1) color will be supplied. ' Custom sizes, cut lengths, reel lengths and colors are available upon request-please consult the factory. ' Please refer to pages 48 and 49 for Chemical Resistance information. ' Please refer to pages 50 and 51 for tubing specifications

Polyethylene

Polyethylene is the most commonly used tubing due to its flexibility, wide range of chemical resistance and lower cost. Nycoil uses high quality Linear Low Density Polyethylene material (LLDPE) that conforms to Food and Drug Administration 21 CFR 177.1520 C where contact with food is an issue (applies to all colors). LLDPE has a much higher resistance to stress cracking as compared to other Polyethylene compounds. It is also chemically inert, mea-

ning it forms a good barrier against moisture, vapors and gases - minimizing the possibility of leaks or contamination. Where prolonged exposure to sunlight or ultraviolet (UV) light is a concern, black tubing is recommended for extended life.

Temperature Range: -1001= to + 1751= (-73C to + 80<C )

Polyethylene Fractional Inch Tubi


Tube O.D.	Tube I.D.	100'	500'	1000'	Wall Thickness	Color Code
in	in	Slit Rae	Reel	Reel	in	Suffix Key
1/4	0.170	6244 _	6444 _	6644 _	0.040	0 = Natural	4 =	Green
5/16	0.190	6255_	6455_	6655_	0.062	1 = Black	5 =	Yellow
3/8	0.250	6266_	6466_	6666_	0.062	2 = Red	6 =	Orange
1/2	0.375	6288_	6988 _*	6688_	0.062	3 = Blue	7 =	Gray

* Indicates 250' Reel

' Adding a Color Code suffix to the part number is required. If no Color Code is selected,

Natural (0) color will be supplied. ' Custom sizes, cut lengths, reel lengths and colors are available upon request-please consult the factory. ' Please refer to pages 48 and 49 for Chemical Resistance information. ' Please refer to pages 50 and 51 for tubing specifications

Polyethylene Metric Tubing


Tube OD.	Tube I.D.	100'	500'	1000'	Wall Thickness	Color Code
mm	mm	Slit Rae	Reel	Reel	mm	Suffix Key
4	2.5	7203_	7503_	7803_	0.75	0 = Natural
6	4	7206_	7506_	7806_	1	1 = Black
CO	6	7208_	7508_	7808_	1
10	00	7211 _	7511 _	7811_	1

' Adding a Color Code suffix to the part number is required. If no Color Code is selected,
