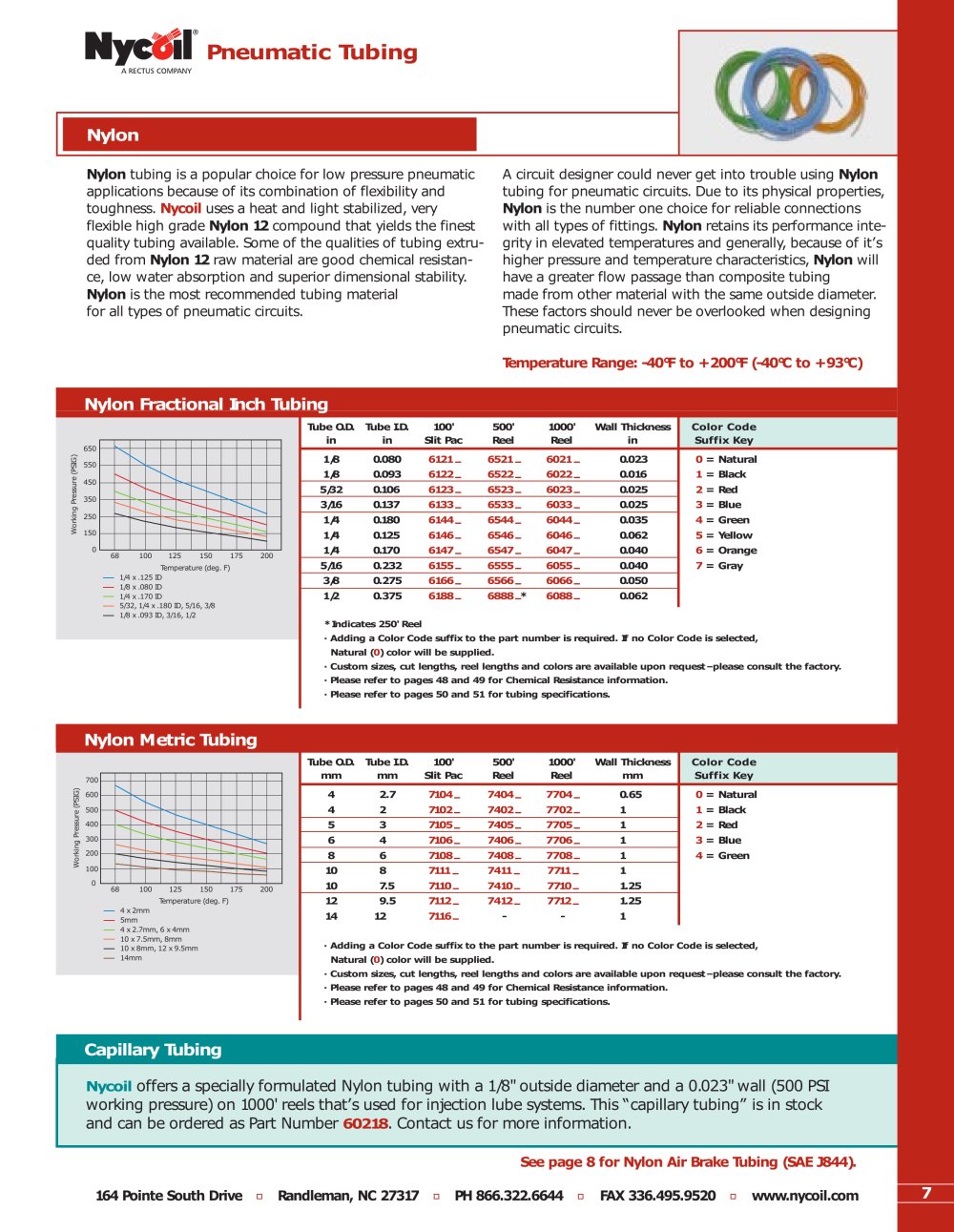

Nyctil

Pneumatic Tubing

A RECTUS COMPANY

A circuit designer could never get into trouble using Nylon tubing for pneumatic circuits. Due to its physical properties, Nylon is the number one choice for reliable connections with all types of fittings. Nylon retains its performance integrity in elevated temperatures and generally, because of it's higher pressure and temperature characteristics, Nylon will have a greater flow passage than composite tubing made from other material with the same outside diameter. These factors should never be overlooked when designing pneumatic circuits.

Nylon tubing is a popular choice for low pressure pneumatic applications because of its combination of flexibility and toughness. NycoM uses a heat and light stabilized, very flexible high grade Nylon 12 compound that yields the finest quality tubing available. Some of the qualities of tubing extruded from Nylon 12 raw material are good chemical resistance, low water absorption and superior dimensional stability. Nylon is the most recommended tubing material for all types of pneumatic circuits.

Temperature Range: -40Tto + 200T (-40Cto + 93C)

Nylon Fractional Inch Tubing


Tube O.D.	Tube I.D.	100'	500'	1000'	Wall Thickness	Color Code
in	in	Slit Rae	Reel	Reel	in	Suffix Key
1/8	0.080	6121 _	6521_	6021 _	0.023	0 = Natural
1/8	0.093	6122_	6522_	6022_	0.016	1 = Black
5/32	0.106	6123_	6523_	6023_	0.025	2 = Red
3/16	0.137	6133_	6533_	6033_	0.025	3 = Blue
1/4	0.180	6144 _	6544_	6044 _	0.035	4 = Green
1/4	0.125	6146_	6546_	6046_	0.062	5 = Yellow
1/4	0.170	6147_	6547_	6047_	0.040	6 = Orange
5/16	0.232	6155_	6555_	6055_	0.040	7 = Gray
3/8	0.275	6166_	6566_	6066_	0.050

Temperature (deg. F) 1/4 x .125 ID 1/8 x .080 ID 1/4 x .170 ID

5/32, 1/4 x .180 ID, 5/16,3/8 1/8 x.093 ID, 3/16,1/2

1/2

0.375

6188_

6888.

6088_

0.062

* Indicates 250' Reel

' Adding a Color Code suffix to the part number is required. If no Color Code is selected,

Natural (0) color will be supplied. ' Custom sizes, cut lengths, reel lengths and colors are available upon request-please consult the factory. ' Please refer to pages48 and 49 for Chemical Resistance information. ' Please refer to pages 50 and 51 for tubing specifications

Nylon Metric Tubing


Tube O.D.	Tube I.D.	100'	500'	1000'	Wall Thickness
mm	mm	Slit Rae	Reel	Reel	mm
4	2.7	7104_	7404_	7704_	0.65
4	2	7102_	7402_	7702_	1
5	3	7105_	7405_	7705_	1
6	4	7106_	7406_	7706_	1
co	6	7108_	7408_	7708_	1
10	8	7111 _	7411_	7711 _	1
10	7.5	7110_	7410_	7710 _	1.25
12	9.5	7112_	7412_	7712 _	1.25
14	12	7116_	■	■	1

Color Code Suffix Key

0 = Natural

1 = Black

2 = Red

3 = Blue

4 = Green

■ 4 x 2.7mm, 6x4

■ 10x7.5mm,8mm

■ 10 x8mm, 12 x9.5

' Adding a Color Code suffix to the part number is required. If no Color Code is selected,

Capillary Tubing

Nycoil offers a specially formulated Nylon tubing with a 1/8" outside diameter and a 0.023" wall (500 PSI working pressure) on 1000' reels that's used for injection lube systems. This "capillary tubing" is in stock and can be ordered as Part Number 60218. Contact us for more information.

See page 8 for Nylon Air Brake Tubing (SAE J844). 164 Pointe South Drive □ Randleman, NC 27317 □ PH 866.322.6644 □ FAX 336.495.9520 □ www.nycoil.com
