Nyctfff
A RECTUS COMPANY

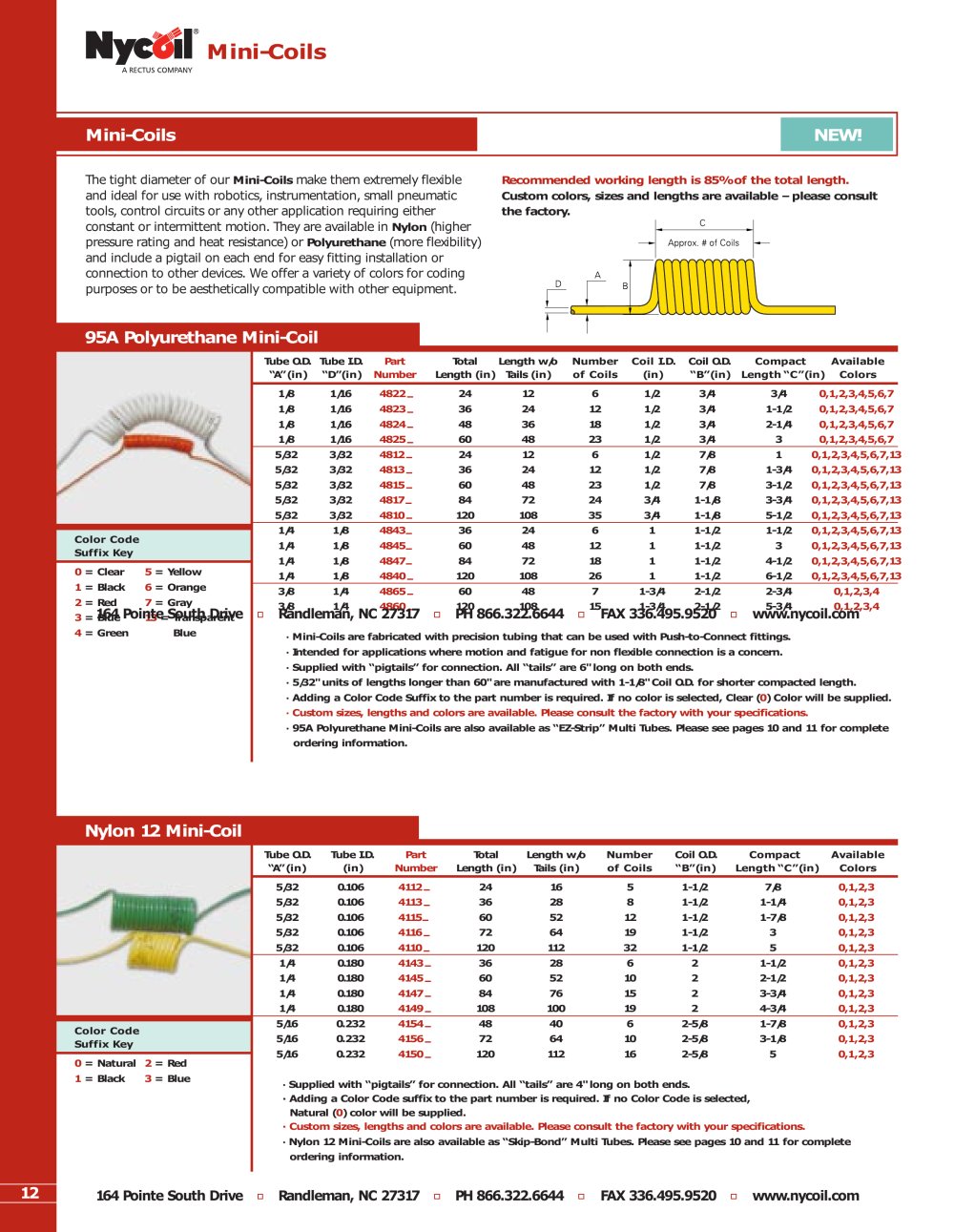

Mini-Coils
The tight diameter of our Mini-Coils make them extremely flexible and ideal for use with robotics, instrumentation, small pneumatic tools, control circuits or any other application requiring either constant or intermittent motion. They are available in Nylon (higher pressure rating and heat resistance) or Polyurethane (more flexibility) and include a pigtail on each end for easy fitting installation or connection to other devices. We offer a variety of colors for coding purposes or to be aesthetically compatible with other equipment.
Recommended working length is 85% of the total length. Custom colors, sizes and lengths are available - please consult the factory.
95A Polyurethane Mini-Coil
Tube O.D.
Tube I.D.
Part
Tota
Length w/o
Number
Coil I.D.
Coil O.D.
Compact
Available
"A"(in)
"D"(in)
Number
Length
in) Tails(in)
of Coils
(in)
"B"(in)
Length "C"(
in) Colors
1/8
1/16
4822_
24
12
6
1/2
3/4
3/4
0,1,2,3,4,5,6,7
1/8
1/16
4823_
36
24
12
1/2
3/4
1-1/2
0,1,2,3,4,5,6,7
1/8
1/16
4824_
48
36
18
1/2
3/4
2-1/4
0,1,2,3,4,5,6,7
1/8
1/16
4825_
60
48
23
1/2
3/4
3
0,1,2,3,4,5,6,7
5/32
3/32
4812_
24
12
6
1/2
7/8
1
0,1,2,3,4,5,6,7,13
5/32
3/32
4813_
36
24
12
1/2
7/8
1-3/4
0,1,2,3,4,5,6,7,13
5/32
3/32
4815_
60
48
23
1/2
7/8
3-1/2
0,1,2,3,4,5,6,7,13
5/32
3/32
4817_
84
72
24
3/4
1-1/8
3-3/4
0,1,2,3,4,5,6,7,13
5/32
3/32
4810_
120
108
35
3/4
1-1/8
5-1/2
0,1,2,3,4,5,6,7,13
1/4
1/8
4843_
36
24
6
1
1-1/2
1-1/2
0,1,2,3,4,5,6,7,13
1/4
1/8
4845_
60
48
12
1
1-1/2
3
0,1,2,3,4,5,6,7,13
1/4
1/8
4847_
84
72
18
1
1-1/2
4-1/2
0,1,2,3,4,5,6,7,13
1/4
1/8
4840_
120
108
26
1
1-1/2
6-1/2
0,1,2,3,4,5,6,7,13
3/8
1/4
4865_
60
48
7
1-3/4
2-1/2
2-3/4
0,1,2,3,4
□ F^andleman, NC^3î7
□ m
866.32?.Ì644
□ 15FAX
5-3/4 ., 0,1,2,3,4
www.nycoil. córti
Color Code Suffix Key
Clear Black Red
5 = Yellow
6 = Orange
7 = Gray
3 = ttfe PoinSfcSpiitìfcJ&ÀYe
4 = Green Blue
Mini-Coils are fabricated with precision tubing that can be used with Push-to-Connect fittings. Intended for applications where motion and fatigue for non flexible connection is a concern. Supplied with "pigtails" for connection. All "tails" are 6" long on both ends.
5/32" units of lengths longer than 60" are manufactured with 1-1/8" Coil O.D. for shorter compacted length. Adding a Color Code Suffix to the part number is required. If no color is selected, Clear (0) Color will be supplied. Custom sizes, lengths and colors are available. Please consult the factory with your specifications. 95A Polyurethane Mini-Coils are also available as "EZ-Strip" Multi Tubes. Please see pages 10 and 11 for complete ordering information.
Nylon 12 Mini-Coil
Tube O.D.
Tube I.D
Total
Length w/o
Number
Coil O.D.
Compact
Available
"A" (in)
(in)
Number
Length (in)
Tails (in)
of Coils
"B"(in)
Length "C"(in|
Colors
5/32
0.106
4112_
24
16
5
1-1/2
7/8
0,1,2,3
5/32
0.106
4113_
36
28
8
1-1/2
1-1/4
0,1,2,3
5/32
0.106
4115_
60
52
12
1-1/2
1-7/8
0,1,2,3
5/32
0.106
4116_
72
64
19
1-1/2
3
0,1,2,3
5/32
0.106
4110_
120
112
32
1-1/2
5
0,1,2,3
1/4
0.180
4143_
36
28
6
2
1-1/2
0,1,2,3
1/4
0.180
4145_
60
52
10
2
2-1/2
0,1,2,3
1/4
0.180
4147_
84
76
15
2
3-3/4
0,1,2,3
1/4
0.180
4149_
108
100
19
2
4-3/4
0,1,2,3
5/16
0.232
4154_
48
40
6
2-5/8
1-7/8
0,1,2,3
5/16
0.232
4156_
72
64
10
2-5/8
3-1/8
0,1,2,3
5/16
0.232
4150_
120
112
16
2-5/8
5
0,1,2,3
Color Code Suffix Key
0 = Natural 2 :
1 = Black 3 ■■
Red Blue
Supplied with "pigtails" for connection. All "tails" are 4" long on both ends.
■ Adding a Color Code suffix to the part number is required. If no Color Code is selected, Natural (0) color will be supplied.
■ Custom sizes, lengths and colors are available. Please consult the factory with your specifications.
Nylon 12 Mini-Coils are also available as "Skip-Bond" Multi Tubes. Please see pages 10 and 11 for complete ordering information.
164 Pointe South Drive □ Randleman, NC 27317
PH 866.322.6644 □ FAX 336.495.9520
www.nycoil.com
