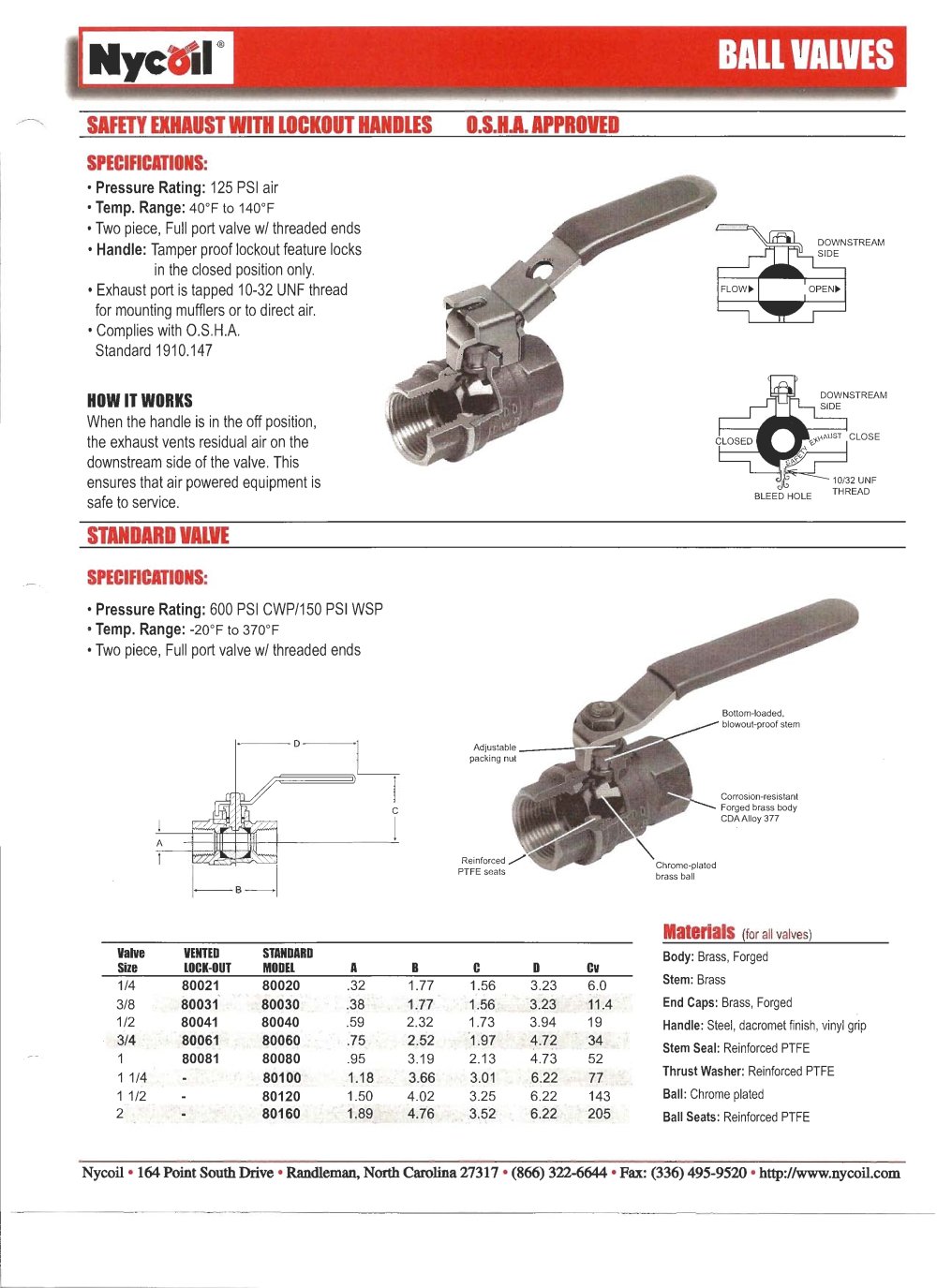

BALL VALVES

SAFETY EXHAUST WITH LOCKOUT HANDLES O.S.H.A. APPROVED

SPECIFICATIONS:

• Pressure Rating: 125 PSI air

• Temp. Range: 40°F to 140°F

• Two piece, Full port valve w/ threaded ends

• Handle: Tamper proof lockout feature locks

in the closed position only.

• Exhaust port is tapped 10-32 UNF thread for mounting mufflers or to direct air.

•Complies with O.S.H.A. Standard 1910.147

HOW IT WORKS

When the handle is in the off position, the exhaust vents residual air on the downstream side of the valve. This ensures that air powered equipment is safe to service.

^~~HIT^L~~i DOWNSTREAM

r^^slc

DOWNSTREAM SIDE

BLEED HOLE

STANDARD VALVI

SPECIFICATIONS:

• Pressure Rating: 600 PSI CWP/150 PSI WSP

• Temp. Range: -20°F to 370°F

• Two piece, Full port valve w/ threaded ends

Bottom-loaded, blowout-proof stem

Corrosion-resistant Forged brass body CDAAIIoy377

Chrome-plated brass ball

Materials (for all valves)


Valve	VENTED	STANDARD						Body: Brass, Forged
Size	LOCK-OUT	MODEL	A	В	n	D	Cv	Body: Brass, Forged
1/4	80021	80020	.32	1.77	1.56	3.23	6.0	Stem: Brass
3/8	80031	80030	.38	1.77	1.56	3.23	11.4	End Caps: Brass, Forged
1/2	80041	80040	.59	2.32	1.73	3.94	19	Handle: Steel, dacromet finish, vinyl grip
3/4	80061	80060	.75	2.52	1.97	4.72	34	Stem Seal: Reinforced PTFE
1	80081	80080	.95	3.19	2.13	4.73	52
1 1/4	-	80100	1.18	3.66	3.01	6.22	77	Thrust Washer: Reinforced PTFE
1 1/2	-	80120	1.50	4.02	3.25	6.22	143	Ball: Chrome plated
2	-	80160	1.89	4.76	3.52	6.22	205	Ball Seats: Reinforced PTFE

Nycoil • 164 Point South Drive • Randleman, North Carolina 27317 * (866) 322-6644 * Fax: (336) 495-9520 • http://www.nycoil.com
