Tx

TM

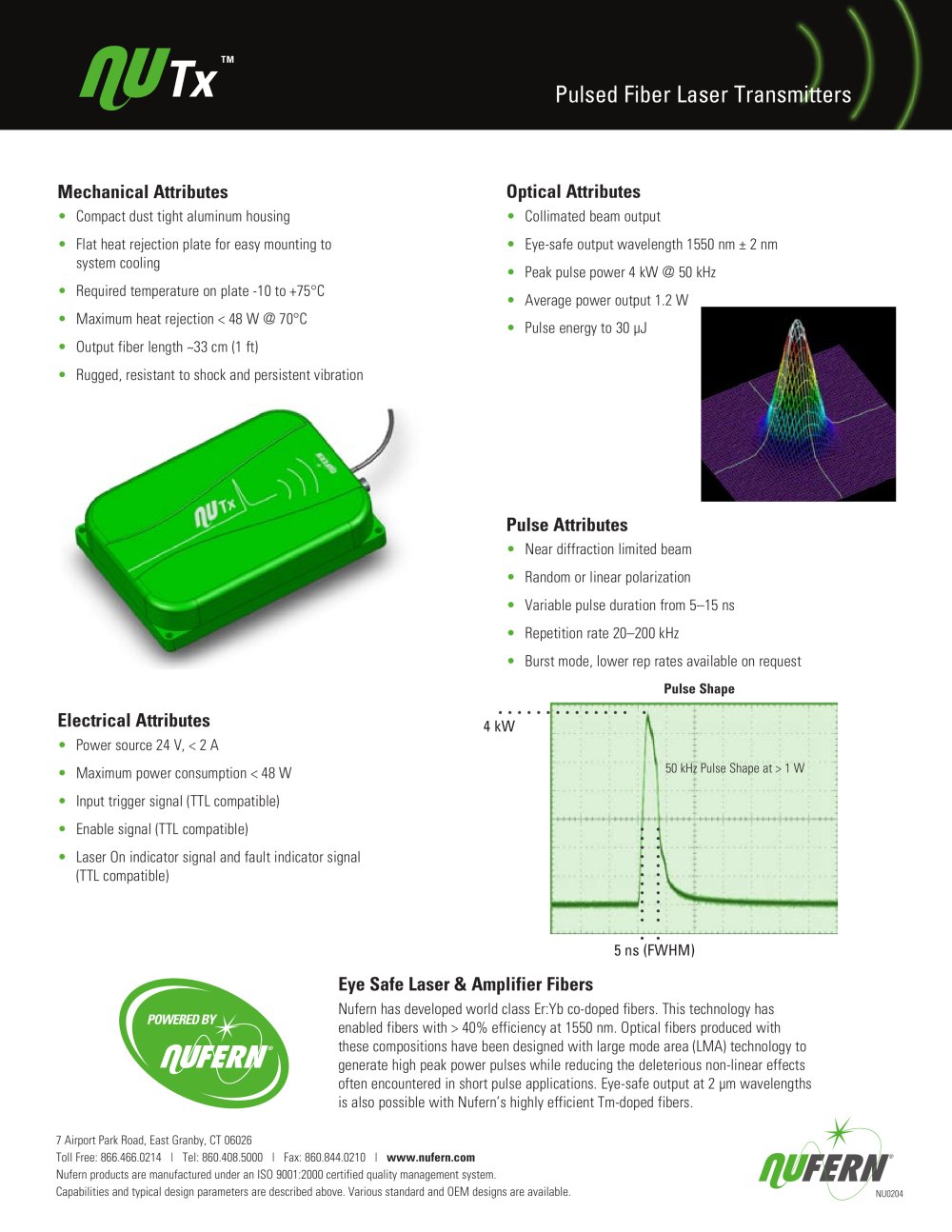

Pulsed Fiber Laser Transmitters

Mechanical Attributes Optical Attributes

• Compact dust tight aluminum housing • Collimated beam output • Flat heat rejection plate for easy mounting to system cooling • Eye-safe output wavelength 1550 nm ± 2 nm • Peak pulse power 4 kW @ 50 kHz • Required temperature on plate -10 to +75°C • Average power output 1.2 W • Maximum heat rejection

Pulse Attributes

• Near diffraction limited beam • Random or linear polarization • Variable pulse duration from 5–15 ns • Repetition rate 20–200 kHz • Burst mode, lower rep rates available on request
Pulse Shape

Electrical Attributes

4 kW 5 ns (FWHM) • Power source 24 V,
50 kHz Pulse Shape at > 1 W • Input trigger signal (TTL compatible) • Enable signal (TTL compatible) • Laser On indicator signal and fault indicator signal (TTL compatible)

Eye Safe Laser & Amplifier Fibers

Nufern has developed world class Er:Yb co-doped fibers. This technology has enabled fibers with > 40% efficiency at 1550 nm. Optical fibers produced with these compositions have been designed with large mode area (LMA) technology to generate high peak power pulses while reducing the deleterious non-linear effects often encountered in short pulse applications. Eye-safe output at 2 µm wavelengths is also possible with Nufern’s highly efficient Tm-doped fibers.
7 Airport Park Road, East Granby, CT 06026 Toll Free: 866.466.0214 | Tel: 860.408.5000 | Fax: 860.844.0210 | www.nufern.com ® Nufern products are manufactured under an ISO 9001:2000 certified quality management system. Capabilities and typical design parameters are described above. Various standard and OEM designs are available. NU0204
