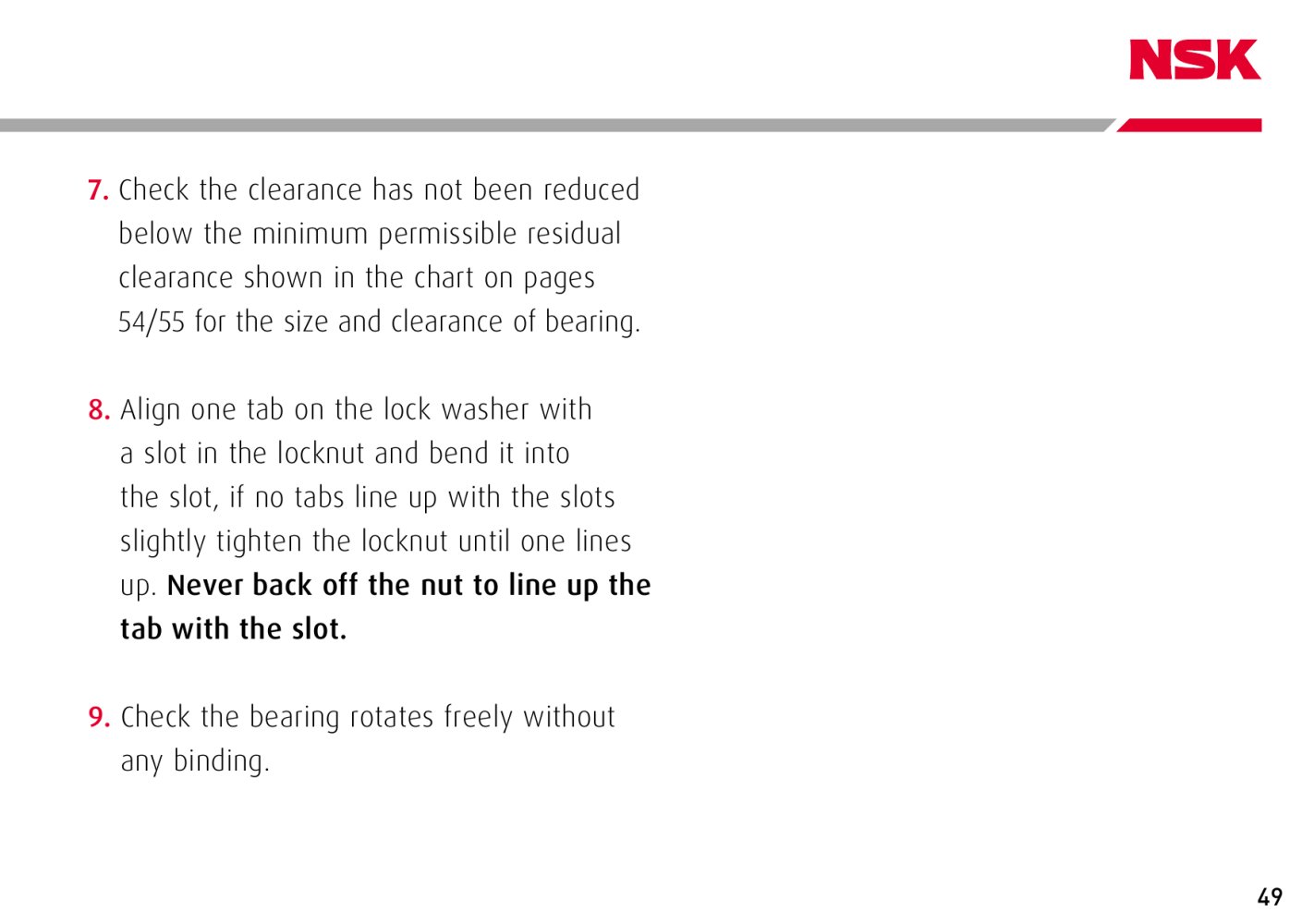

7. Check the clearance has not been reduced
below the minimum permissible residual
clearance shown in the chart on pages
54/55 for the size and clearance of bearing.
8. Align one tab on the lock washer with
a slot in the locknut and bend it into
the slot, if no tabs line up with the slots
slightly tighten the locknut until one lines
up. Never back off the nut to line up the
tab with the slot.
9. Check the bearing rotates freely without
any binding.
49
