29

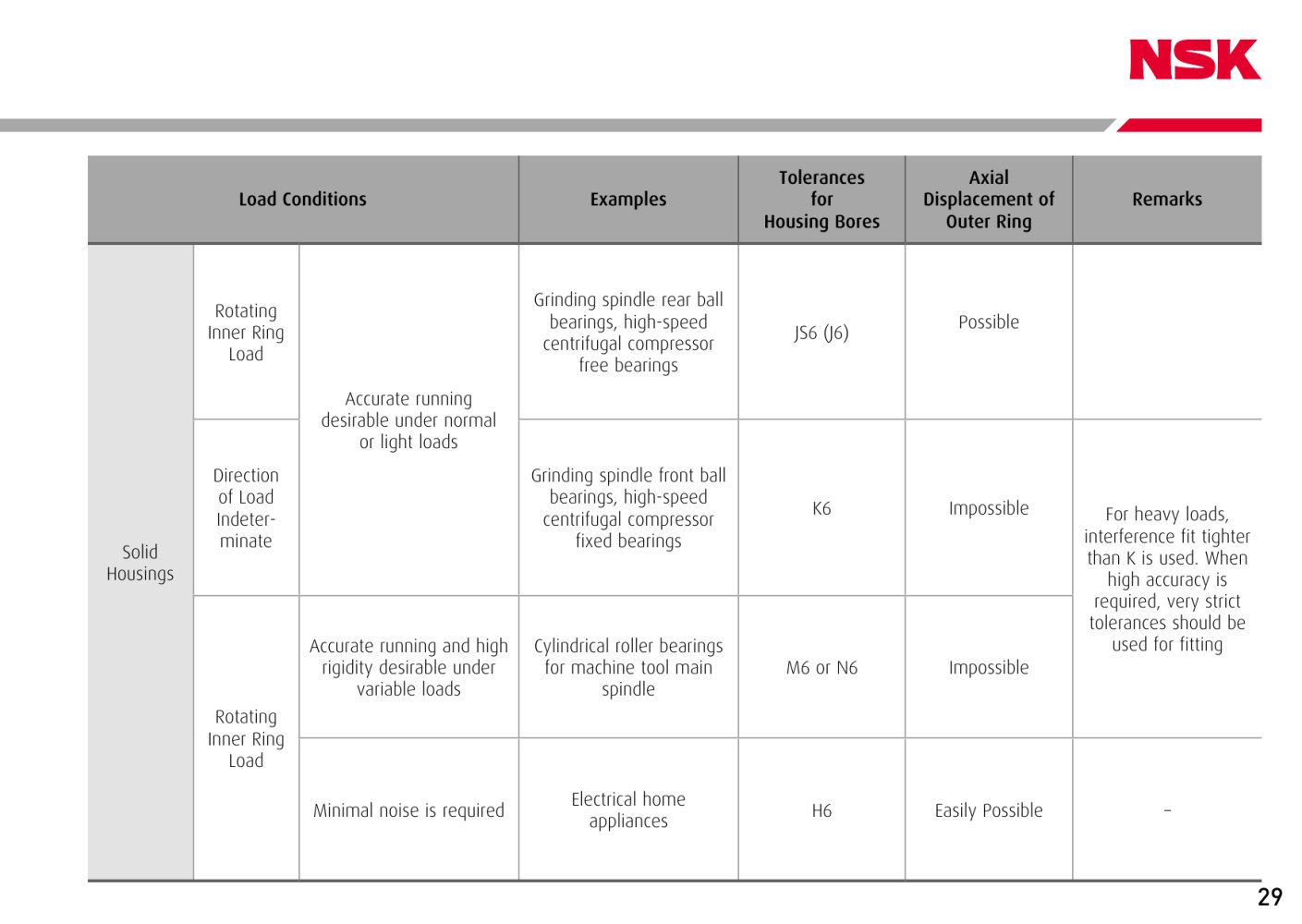

Load Conditions Examples
Tolerances
for
Housing Bores
Axial
Displacement of
Outer Ring
Remarks
Solid
Housings
Rotating
Inner Ring
Load
Accurate running
desirable under normal
or light loads
Grinding spindle rear ball
bearings, high-speed
centrifugal compressor
free bearings
JS6 (J6) Possible
Direction
of Load
Indeterminate
Grinding spindle front ball
bearings, high-speed
centrifugal compressor
fixed bearings
K6 Impossible For heavy loads,
interference
fit tighter
than K is used. When
high accuracy is
required, very strict
tolerances should be
used for fitting
Rotating
Inner Ring
Load
Accurate running and high
rigidity desirable under
variable loads
Cylindrical roller bearings
for machine tool main
spindle
M6 or N6 Impossible
Minimal noise is required Electrical home
appliances H6 Easily Possible –
