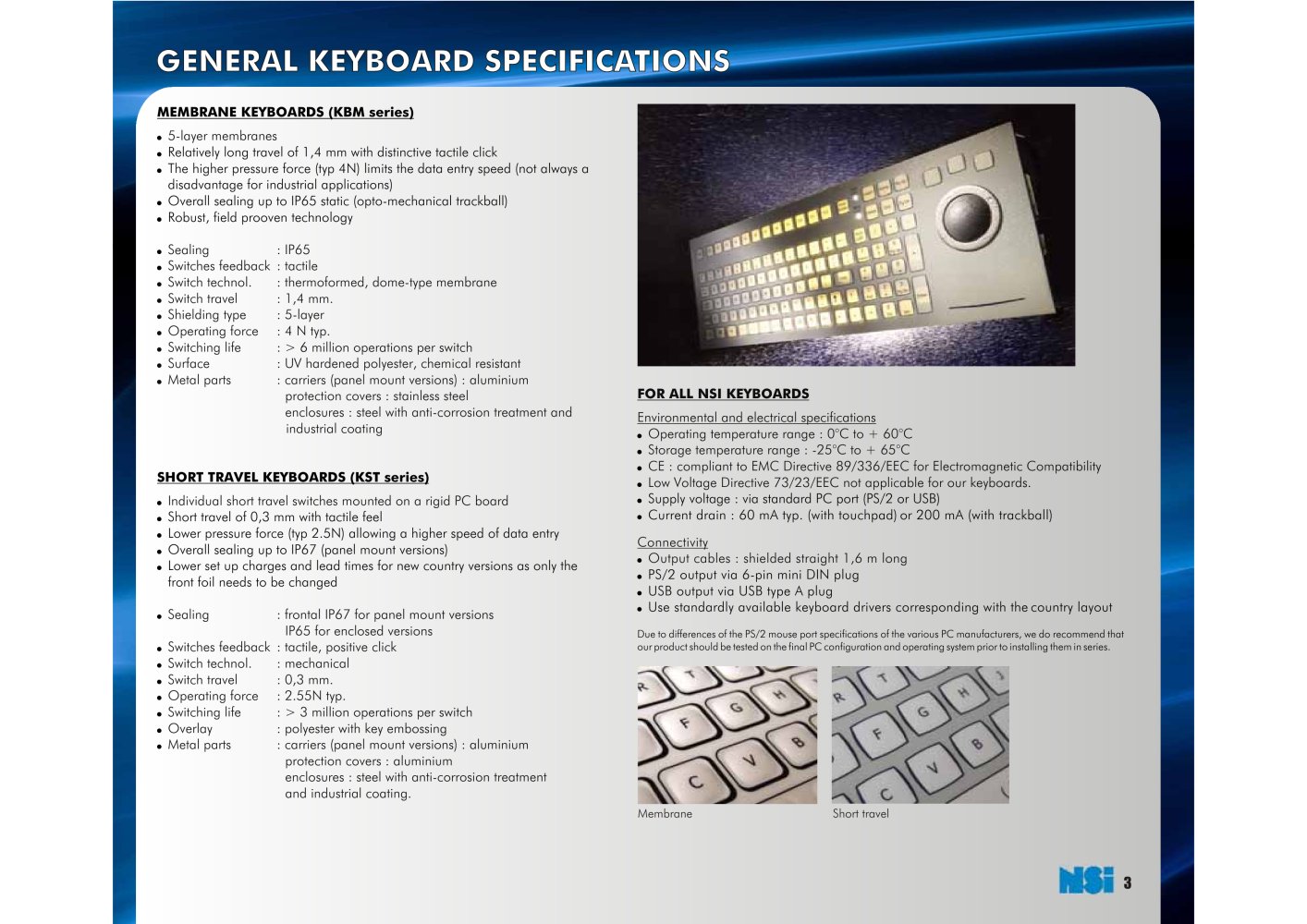

GENERAL KEYBOARD SPECIFICATIONS Membrane Short travel MEMBRANE KEYBOARDS (KBM series)

Relatively long travel of 1,4 mm with distinctive tactile click
The higher pressure force (typ 4N) limits the data entry speed (not always a disadvantage for industrial applications)
Overall sealing up to IP65 static (opto-mechanical trackball)
Robust, field prooven technology

> 6 SHORT TRAVEL KEYBOARDS (KST series)

Short travel of 0,3 mm with tactile feel
Lower pressure force (typ 2.5N) allowing a higher speed of data entry
Overall sealing up to IP67 (panel mount versions)
Lower set up charges and lead times for new country versions as only the front foil needs to be changed





>

5-layer membranes Sealing : IP65 Switches feedback : tactile
Switch technol. : thermoformed, dome-type membrane
Switch travel : 1,4 mm.
Shielding type : 5-layer
Operating force : 4 N typ.
Switching life : million operations per switch
Surface : UV hardened polyester, chemical resistant
Metal parts : carriers (panel mount versions) : aluminium protection covers : stainless steel enclosures : steel with anti-corrosion treatment and industrial coating Individual short travel switches mounted on a rigid PC board Sealing : frontal IP67 for panel mount versions IP65 for enclosed versions Switches feedback : tactile, positive click Switch technol. : mechanical Switch travel : 0,3 mm. Operating force : 2.55N typ. Switching life : 3 million operations per switch Overlay : polyester with key embossing Metal parts : carriers (panel mount versions) : aluminium protection covers : aluminium enclosures : steel with anti-corrosion treatment and industrial coating. FOR ALL NSI KEYBOARDS Environmental and electrical specifications Operating temperature range : 0°C to + 60°C Storage temperature range : -25°C to + 65°C CE : compliant to EMC Directive 89/336/EEC for Low Voltage Directive 73/23/EEC not applicable Connectivity Output cables : shielded straight 1,6 m long




Supply voltage : via standard PC port (PS/2 or USB)
Current drain : 60 mA typ. (with touchpad) or 200

PS/2 output via 6-pin mini DIN plug
USB output via USB type A plug
Use standardly available keyboard drivers corresponding Due to differences of the PS/2 mouse port specifications of the various our product should be tested on the final PC configuration and operating
