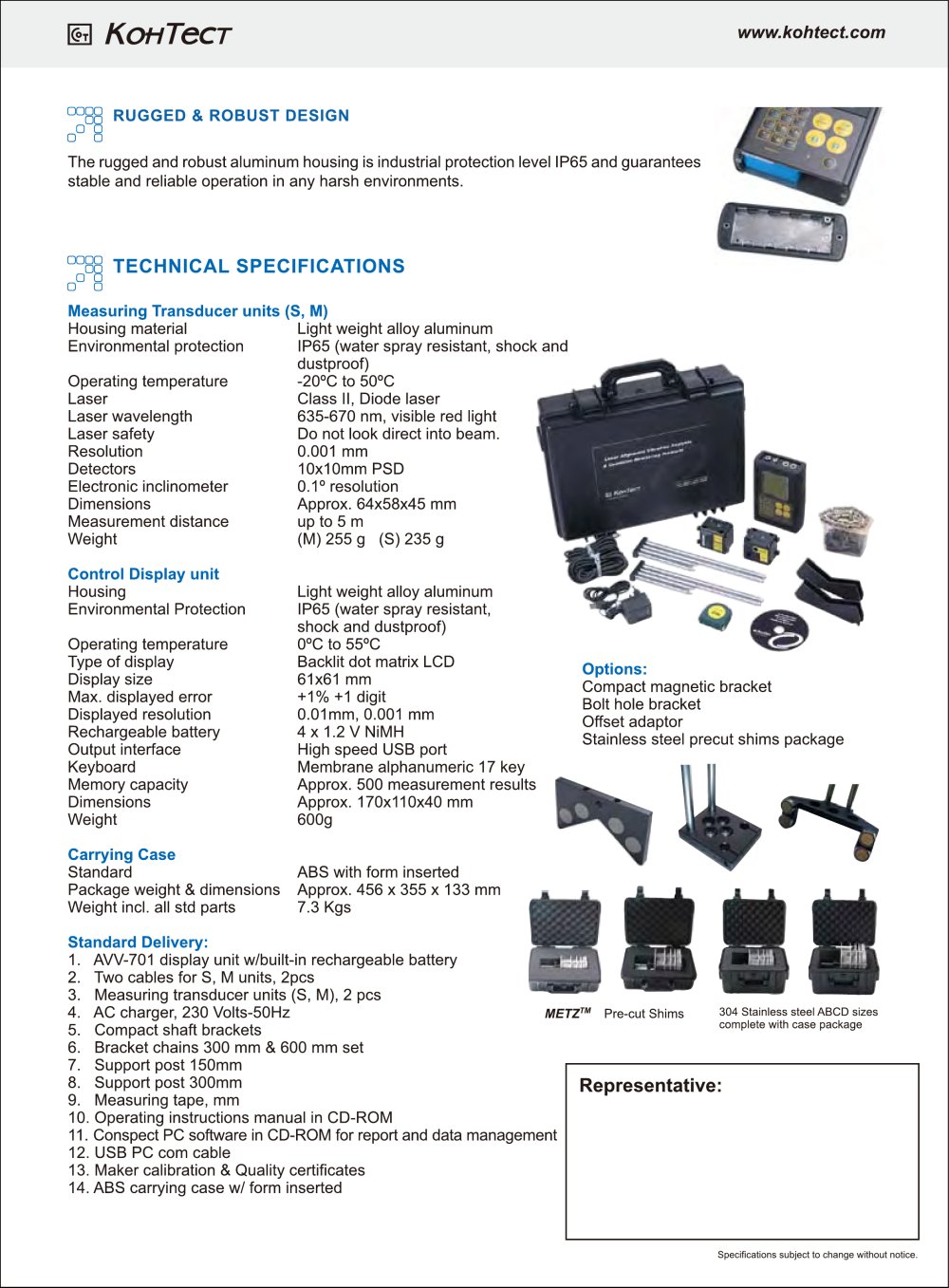

| 113 KoHTecT | |||||||||||||||||||||||||||||||||||
| www.kohtect.com | |||||||||||||||||||||||||||||||||||
| D^gg RUGGED & ROBUST DESIGN □ □ The rugged and robust aluminum housing is industrial protection level IP65 and guarantees stable and reliable operation in any harsh environments. | |||||||||||||||||||||||||||||||||||
| DD8a TECHNICAL SPECIFICATIONS □°8 Measuring Transducer units (S, M) | |||||||||||||||||||||||||||||||||||
| Housing material Environmental protection Operating temperature Laser Laser wavelength Laser safety Resolution Detectors Electronic inclinometer Dimensions Measurement distance Weight | Light weight alloy aluminum IP65 (water spray resistant, shock and dustproof) -20°C to 50°C Class II, Diode laser 635-670 nm, visible red light Do not look direct into beam. 0.001 mm 10x10mm PSD 0.1° resolution Approx. 64x58x45 mm up to 5 m (M)255g (S)235g | ||||||||||||||||||||||||||||||||||
| Housing Environmental Protection Operating temperature Type of display Display size Max. displayed error Displayed resolution Rechargeable battery Output interface Keyboard Memory capacity Dimensions Weight Carrying Case Standard Package weight & dimensions Weight incl. all std parts Standard Delivery: | Light weight alloy aluminum IP65 (water spray resistant, shock and dustproof) 0°C to 55°C Backlit dot matrix LCD 61x61 mm +1%+1 digit 0.01mm, 0.001 mm 4 x 1.2 V NiMH High speed USB port Membrane alphanumeric 17 key Approx. 500 measurement results Approx. 170x110x40 mm 600g | ||||||||||||||||||||||||||||||||||
| Compact magnetic bracket Bolt hole bracket Offset adaptor Stainless steel precut shims package | |||||||||||||||||||||||||||||||||||
| ABS with form inserted Approx. 456 x 355 x 133 mm 7.3 Kgs | |||||||||||||||||||||||||||||||||||
| see | |||||||||||||||||||||||||||||||||||
| 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. | AW-701 display unit w/built-in rechargeable battery Two cables for S, M units, 2pcs Measuring transducer units (S, M), 2 pes | ||||||||||||||||||||||||||||||||||
| AC charger, 230 Volts-50Hz | METZ™ Pre-cut Shims | 304 Stainless steel ABCD sizes complete with case package | |||||||||||||||||||||||||||||||||
| Compact shaft brackets Bracket chains 300 mm & 600 mm set Support post 150mm Support post 300mm Measuring tape, mm Operating instructions manual in CD-ROM Conspect PC software in CD-ROM for report and data management USB PC com cable Maker calibration & Quality certificates | |||||||||||||||||||||||||||||||||||
| Representative: | |||||||||||||||||||||||||||||||||||
| 14. ABS carrying case w/ form inserted | |||||||||||||||||||||||||||||||||||
| Specifications subject to change without notice. | |||||||||||||||||||||||||||||||||||
