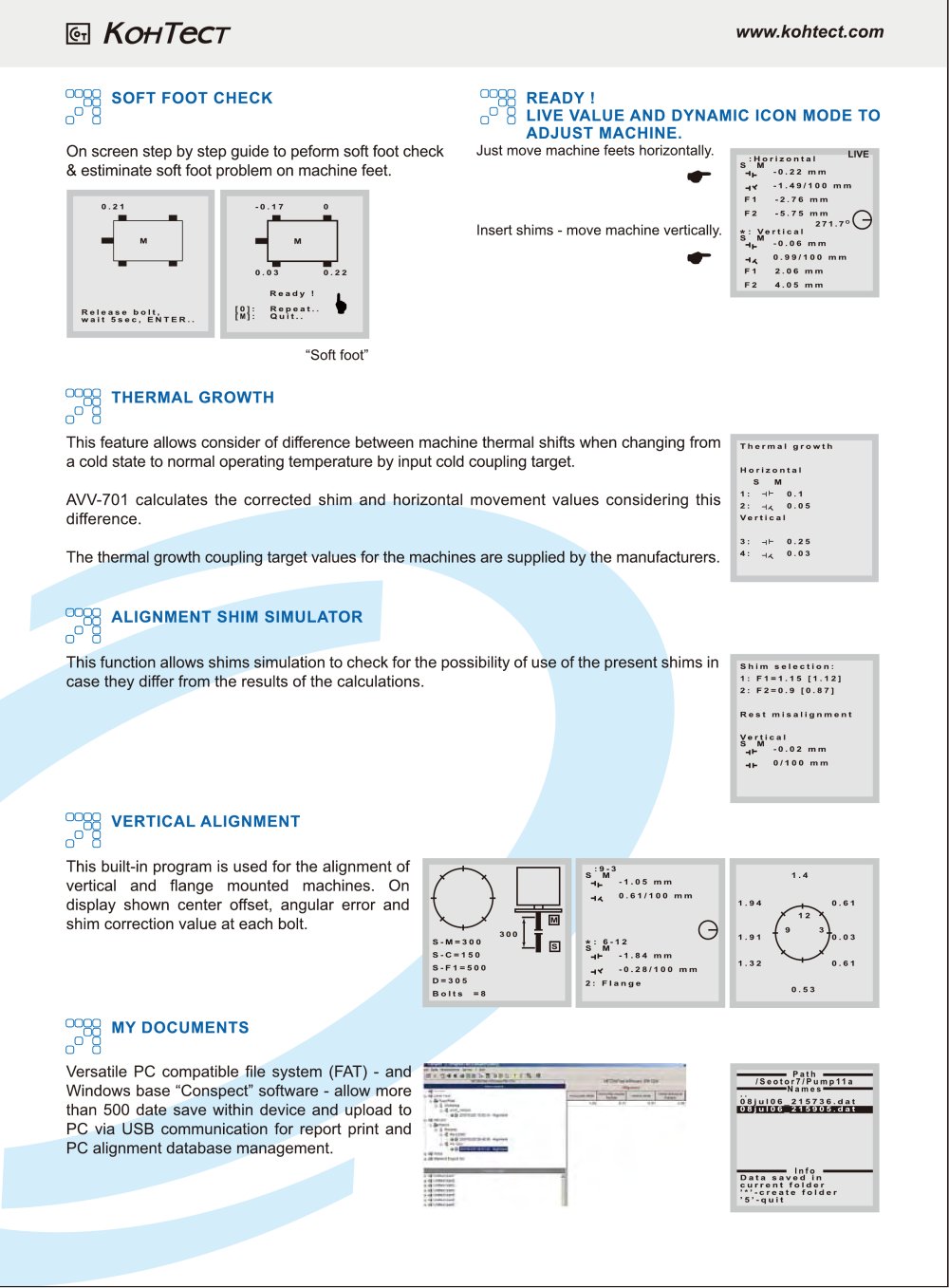

AVV-701 - NPP KOHTECT - #3

^DD88 SOFT FOOT CHECK

□ □ □ □

On screen step by step guide to peform soft foot check & estiminate soft foot problem on machine feet.

^BB READY!

□° H LIVE VALUE AND DYNAMIC ICON MODE TO ADJUST MACHINE.

Just move machine feets horizontally.

Insert shims - move machine vertically.

"Soft foot"

^D^8g THERMAL GROWTH

□ □

This feature allows consider of difference between machine thermal shifts when changing from a cold state to normal operating temperature by input cold coupling target.

AW-701 calculates the corrected shim and horizontal movement values considering this difference.

The thermal growth coupling target values for the machines are supplied by the manufacturers.

^QD8§ ALIGNMENT SHIM SIMULATOR

This function allows shims simulation to check for the possibility of use of the present shims in _Shi_m .election: case they differ from the results of the calculations. I^{1: F1=1}-¹⁵1¹-¹²'

^DD88 VERTICAL ALIGNMENT

□ □ □ □

This built-in program is used for the alignment of vertical and flange mounted machines. On display shown center offset, angular error and shim correction value at each bolt.

■

300 w

^DD88 MY DOCUMENTS

□ □ □ □

Versatile PC compatible file system (FAT) - and ^!v-iv.-.-J.¹?;"

Windows base "Conspect" software - allow more "^^"^^

than 500 date save within device and upload to

PC via USB communication for report print and

PC alignment database management. .„„ '-™—m
