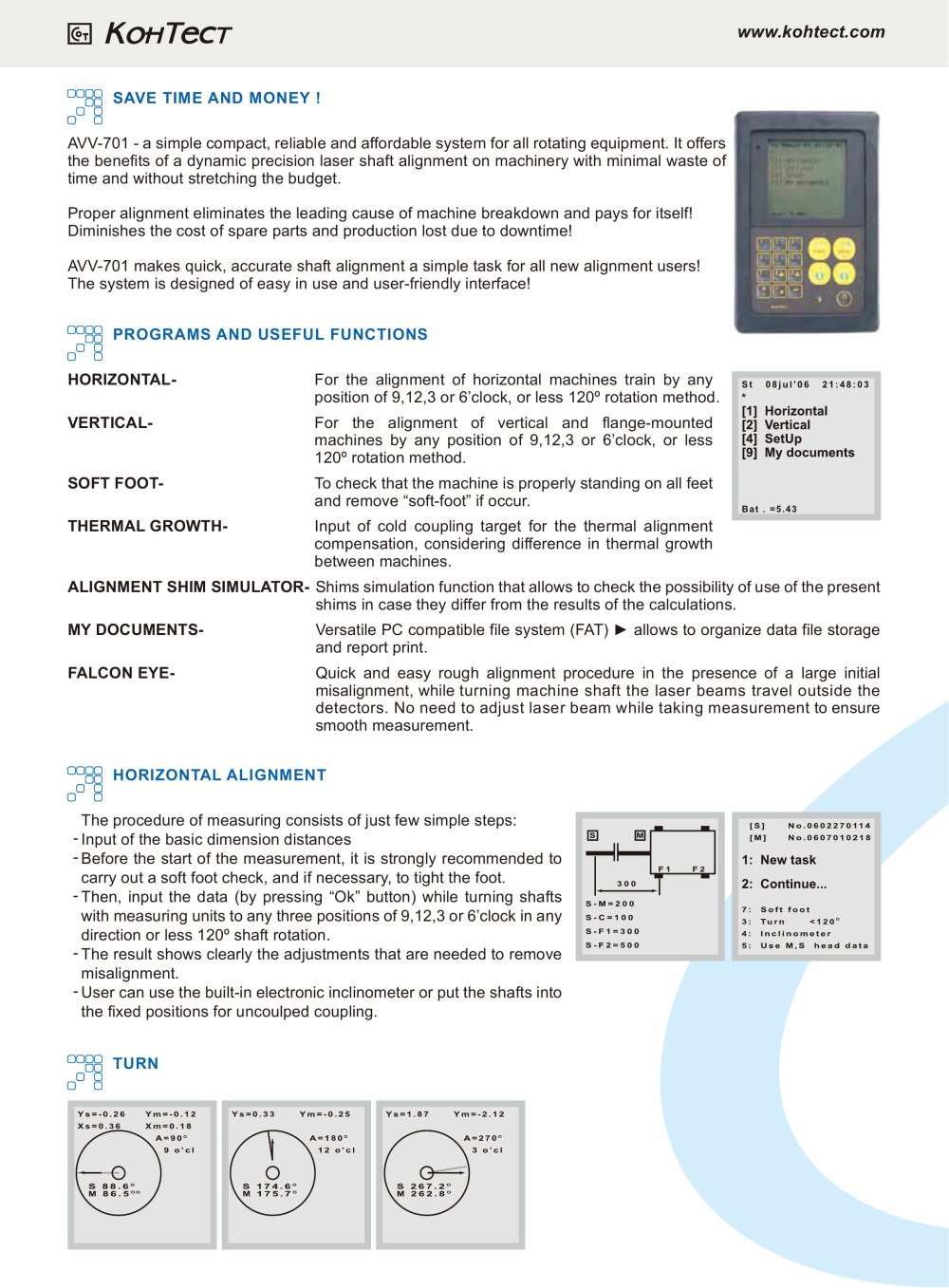

SAVE TIME AND MONEY ! AVV-701 - a simple compact, reliable and affordable system for all rotating equipment. It offers the benefits of a dynamic precision laser shaft alignment on machinery with minimal waste of time and without stretching the budget. Proper alignment eliminates the leading cause of machine breakdown and pays for itself!Diminishes the cost of spare parts and production lost due to downtime! AVV-701 makes quick, accurate shaft alignment a simple task for all new alignment users!The system is designed of easy in use and user-friendly interface! For the alignment of horizontal machines train by any position of 9,12,3 or 6’clock, or less 120º rotation method.For the alignment of vertical and flange-mounted machines by any position of 9,12,3 or 6’clock, or less 120º rotation method.To check that the machine is properly standing on all feet and remove “soft-foot” if occur. Input of cold coupling target for the thermal alignment compensation, considering difference in thermal growth between machines.Shims simulation function that allows to check the possibility of use of the present shims in case they differ from the results of the calculations.Versatile PC compatible file system (FAT) â–º allows to organize data file storage and report print.Quick and easy rough alignment procedure in the presence of a large initial misalignment, while turning machine shaft the laser beams travel outside the detectors. No need to adjust laser beam while taking measurement to ensure smooth measurement.----- PROGRAMS AND USEFUL FUNCTIONS HORIZONTAL-VERTICAL-SOFT FOOT-THERMAL GROWTH-ALIGNMENT SHIM SIMULATOR-MY DOCUMENTS- FALCON EYE- HORIZONTAL ALIGNMENT The procedure of measuring consists of just few simple steps:Input of the basic dimension distances Before the start of the measurement, it is strongly recommended to carry out a soft foot check, and if necessary, to tight the foot. Then, input the data (by pressing “Ok” button) while turning shafts with measuring units to any three positions of 9,12,3 or 6’clock in any direction or less 120º shaft rotation. The result shows clearly the adjustments that are needed to remove misalignment. User can use the built-in electronic inclinometer or put the shafts into the fixed positions for uncoulped coupling. TURN
