Differential pressure instrument - PascalMaxx 500/2000 Z - Novasina AG - #1

Text version of the page

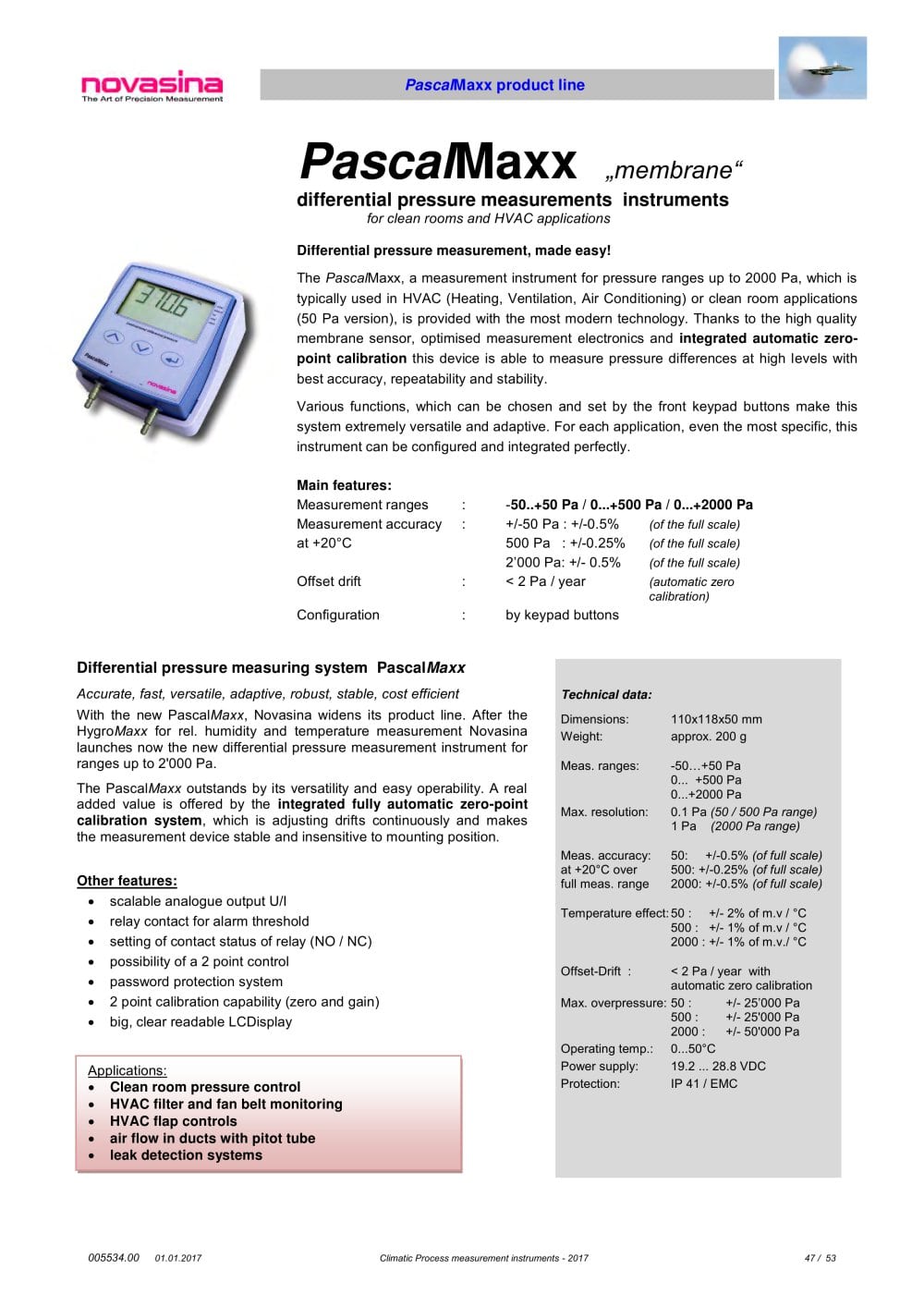

0 Pa 0 in H20 10 5 0.02 15 20 25 30 35 40 45 50 55 60 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.20 0.22 0.24 6 5 0.26 Features Applications General information DIFFERENTIAL PRESSURE MEASUREMENT INSTRUMENT FOR FILTER-SYSTEMS, VENTILATORS, FLAP-CONTROLS Attractive price, accuracy, flexibility thanks to membrane technology WITH AUTOMATIC ZERO-POINT CALIBRATION Versions : PascalMaxx 500 Z : P/N 260 0091 Meas. range : 0...500 Pa (unidirectional) Power supply : 24VDC Signal output : 0/4...20mA, 0/2...10V Relay : 230V, 2A PascalMaxx 2000 Z : P/N 260 0083 Meas. range : 0...2000 Pa (unidirectional) Power supply : 24VDC Signal output : 0/4...20mA, 0/2...10V Relay : 230V, 2A Technical data see rear side PascalMaxx The PascalMaxx differential pressure measurement instrument has been developed for the monitoring of filter systems, ventilators and flap-controls in centralised air conditioning plants. Thanks to the integrated automatic zeropoint calibration system, the device enables very accurate and stable measurements. A big, clear LCDisplay facilitates the value reading. The instrument settings are done by the front side buttons through the user friendly and intuitive user menu. The PascalMaxx can be easily configured for different applications. The range of products consists of 2 versions, with measurement range 0 to 500 Pa or 0 to 2000 Pa. A robust housing and the optional dust protection filters allow an ideal use in the air conditioning industry. The automatic zero-point calibration system makes adjustments unnecessary and thus reduces operation and maintenance costs. Furthermore it allows a mounting irrespecitve of its position. Together with the analogue output also a relay is integrated in the system for an automatic alarm or 2-point control purpose. Nominal values, hysteresis and delay can be set through the device’s user menu. The instrument functions are continuously monitored and eventual failures are indicated immediately on the LCDisplay. The PascalMaxx disposes not only of outstanding measurement features and functions but also of a unique cost efficiency.
Unique cost efficiency
Ergonomic design
Big, clear LCDisplay
Easy calibration features at 2 points
2 programmable alarm thresholds for 2-point control
Intuitive menu structure
Scalable, analogue output & 1 relay
Password protection
Automatic zero-point calibration
Filter function for display and analogue output
Integrated dust particle protection filter
SWISS-MADE Quality Measurement, monitoring and control of air conditioning plants and industrial processes :  Industrial HVAC (Heating, Ventilation, Air Conditioning) plants for processes  Clean Room applications  Tunnels and underground mining  Air lock systems  DDC-, PLC- or discrete control systems
