Non-Woven disc 2010
8Pages

{{requestButtons}}

Catalog excerpts

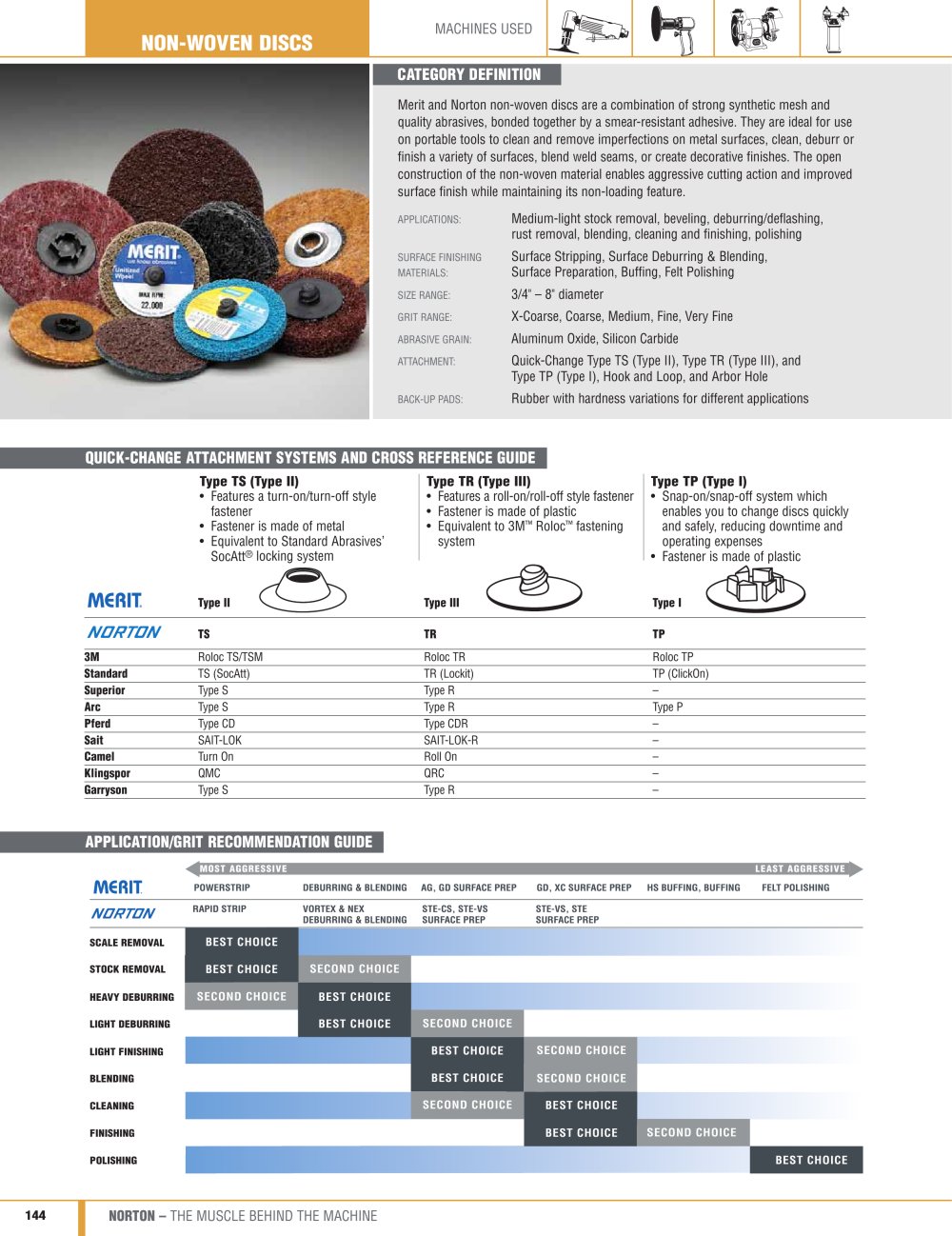

Non-Woven disc 2010 - 1

144 NORTON – THE MUSCLE BE HIND THE MACHINE Non-Woven Discs MACHINES USED Merit and Norton non-woven discs are a combination of strong synthetic mesh and quality abrasives, bonded together by a smear-resistant adhesive. They are ideal for use on portable tools to clean and remove imperfections on metal surfaces, clean, deburr or finish a variety of surfaces, blend weld seams, or create decorative finishes. The open construction of the non-woven material enables aggressive cutting action and improved surface finish while maintaining its non-loading feature. Applications: M edium-light stock removal, beveling, deburring/deflashing, rust removal, blending, cleaning and finishing, polishing Surface Finishing S urface Stripping, Surface Deburring & Blending, Ma terials: S urface Preparation, Buffing, Felt Polishing Size Rang e: 3/4" – 8" diameter Grit Rang e: X -Coarse, Coarse, Medium, Fine, Very Fine Abrasive Grain: Aluminum Oxide, Silicon Carbide Attachment: Quick-Change Type TS (Type II ), Type TR (Type II ), and T ype TP (Type I), Hook and Loop, and Arbor Hole Ba ck-up Pa ds: R ubber with hardness variations for different applications Category definition Aplication/Grit Recommendation Guide SCALE REMOVAL STOCK REMOVAL HEAVY DEBURRING LIGHT DEBURRING LIGHT FINISHING RAPID STRIP DEBURRING & BLENDING POWERSTRIP SURFACE PREP VORTEX & NEX BLENDING CLEANING FINISHING AG, GD SURFACE PREP GD, XC SURFACE PREP MOST AGGRESSIVE LEAST AGGRESSIVE STE-CS, STE-VS BEST CHOICE BEST CHOICE SECOND CHOICE SECOND CHOICE BEST CHOICE BEST CHOICE BEST CHOICE BEST CHOICE BEST CHOICE BEST CHOICE SECOND CHOICE SECOND CHOICE SECOND CHOICE SECOND CHOICE SECOND CHOICE SURFACE PREP STE-VS, STE DEBURRING & BLENDING HS BUFFING, BUFFING FELT POLISHING POLISHING BEST CHOICE Quick-Change Attachment Systems and Cross Reference Guide Type TS (Type II) • Features a turn-on/turn-off style fastener • Fastener is made of metal • Equivalent to Standard Abrasives’ SocAtt® locking system Type TR (Type II) • Features a roll-on/roll-off style fastener • Fastener is made of plastic • Equivalent to 3M™ Roloc™ fastening system Type TP (Type I) • Snap-on/snap-off system which enables you to change discs quickly and safely, reducing downtime and operating expenses • Fastener is made of plastic Type II T ype II T ype I TS TR T P 3M R oloc TS /TSM R oloc TR R oloc TP Standard TS (SocAtt) TR (Lockit) TP (ClickOn) Superior T ype S T ype R – Arc T ype S T ype R T ype P Pferd T ype CD T ype CDR – Sait S AIT -LO K S AIT -LO K-R – Camel T urn On R oll On – Klingspor QMC QRC – Garryson T ype S T ype R –

Open the catalog to page 1
Non-Woven disc 2010 - 2

www.nortonabrasives.com 145 Non-Woven Discs STRI PPING H eavy/Light Deburring L ight Deburring/Blending/Cleaning/Finishing Polishing Cross Reference Guide Featured Products and Availability Abrasive/Grit/Density Key Good B est B etter B est B etter Good GOOD GOOD GOOD PowerStrip D eburring & AG Surface GD Surface XC Surface HS Buffing B uffing F elt Polishing B lending Prep Prep Prep Rapid Strip Vortex Deburring NEX Deburring STE -CSTE -VS STE Surface & Blending & Blending S urface Prep S urface Prep Prep 3M – – EXL Unitized S urface S urface S urface Cond – – – C ond SL C ond SE Standard C...

Open the catalog to page 2
Non-Woven disc 2010 - 3

146 NORTON – THE MUSCLE BE HIND THE MACHINE Non-Woven Discs MACHINES USED Deburring & Blending Discs Vortex Deburring & B lending Discs Revolutiona ry techn ology for heavy deburring an d finishing Features B enefits • High-performance engineered abrasive • Aggressive, fast stock removal cut rate while providing a fine finish and high quality nylon fiber • Twice the wheel life over conventional wheels • New bond technology • Consistent performance with hardness/flexibility • Smear-resistant formula • Smear-free finish • Controlled porosity • Uniform, cool cut rate for longer life Size (D x...

Open the catalog to page 3
Non-Woven disc 2010 - 4

www.nortonabrasives.com 147 Non-Woven Discs MACHINES USED Surface Preparation Discs Norton Surface Preparation Discs Norton STE-CS • Aggressive, very sharp abrasive, closed structure; work best on harder materials, and low- and high-force applications Norton STE-VS • Slightly open structure, firm backing; great multi-purpose discs; work well on a variety of materials Norton STE • More open structure, flexible backing; excellent on soft materials and low-force applications Size (D) Gri t Std. Pkg. par t No. Part No. Part No. Part No. Part No. Part No. 2" XC 50 66261017819 66261016373 C...

Open the catalog to page 4
Non-Woven disc 2010 - 5

148 NORTON – THE MUSCLE BE HIND THE MACHINE Non-Woven Discs MACHINES USED Merit GD & XC Surface Preparation Discs GD • Slightly open structure, firm backing; great multi-purpose discs; work well on a variety of materials XC • More open structure, flexible backing; excellent on soft materials and low-force applications Size (D) Gri t Std. Pkg. par t No. Part No. Part No. Part No. Part No. Part No. 3/4" C 100 08834163637 08834166231 08834163845 08834166239 08834166242 08834166236 M 08834163638 08834166212 08834163846 08834166238 08834166241 08834166235 VF 08834163639 08834166211 08834163847...

Open the catalog to page 5
Non-Woven disc 2010 - 6

www.nortonabrasives.com 149 NON-WOVEN DISCS MACHINES USED Merit Buffing Discs • Tough, yet conformable, high-strength discs are smear-proof and resist tearing on burrs and sharp edges • Designed for light removal of paint or rust without affecting the base product Buffing/Polishing Discs SIZE (D) GRIT STD. PKG. PART NO. PART NO. PART NO. PART NO. PART NO. 1-1/2" C 100 08834166391 08834161647 08834166294 M 08834166392 08834166368 08834166292 F 08834166393 08834166369 08834166332 VF 08834166406 08834166417 08834166333 2" C 50 08834166394 08834161649 08834161627 M 08834164244 08834164064...

Open the catalog to page 6
Non-Woven disc 2010 - 7

150 NORTON – THE MUSCLE BE HIND THE MACHINE Non-Woven Discs MACHINES USED STE-VS Hook and Loop Discs Better Ch oice for multi-purpose Applications Features B enefits • Slightly open structure • Resists loading and chunking • High abrasive content • Continuous cut rate on soft (e.g. aluminum) and hard materials (e.g. steels and nickel alloys) • Firm backing • Low stretch Featured Products and Availability Size (D) Abrasive Gri t Std. Pkg. Part No. Part No. 2" Blank A/O C 80 66261004431 05539562621 A/O M 66261004441 05539562620 A/O VF 66261004451 05539562619 3" Blank A/O C 60 66261004432...

Open the catalog to page 7
