Trash Tamping Grapple - North Shore Manufacturing - #1

Text version of the page

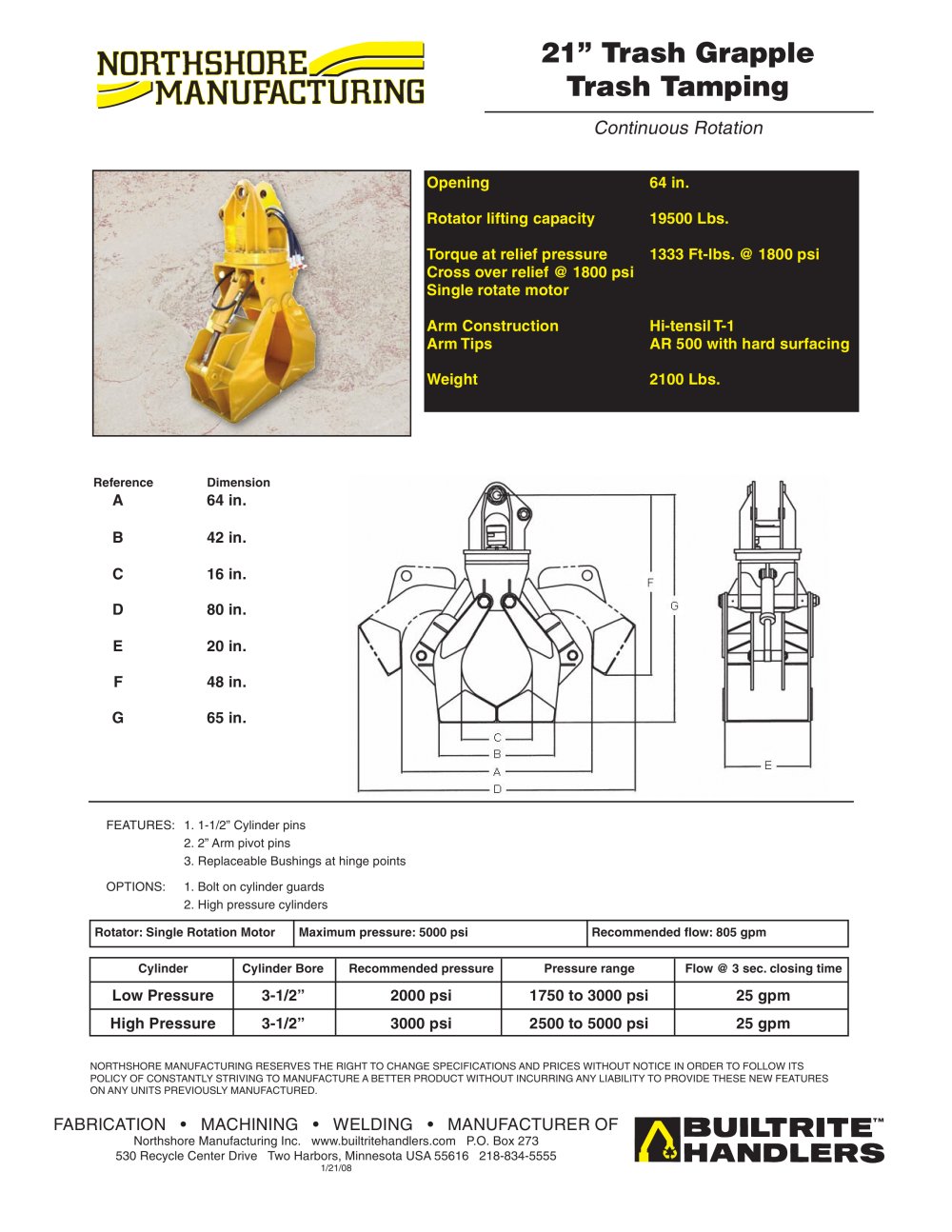

21” Trash Grapple Trash Tamping Continuous Rotation Opening Rotator lifting capacity Torque at relief pressure Cross over relief @ 1800 psi Single rotate motor Arm Construction Arm Tips Weight 64 in. 19500 Lbs. 1333 Ft-lbs. @ 1800 psi Hi-tensil T-1 AR 500 with hard surfacing 2100 Lbs. Reference Dimension A 64 in. B 42 in. C 16 in. D 80 in. E 20 in. F 48 in. G 65 in. Cylinder Cylinder Bore Recommended pressure Pressure range Flow @ 3 sec. closing time Low Pressure 3-1/2” 2000 psi 1750 to 3000 psi 25 gpm High Pressure 3-1/2” 3000 psi 2500 to 5000 psi 25 gpm Rotator: Single Rotation Motor Maximum pressure: 5000 psi Recommended flow: 805 gpm NORTHSHORE MANUFACTURING RESERVES THE RIGHT TO CHANGE SPECIFICATIONS AND PRICES WITHOUT NOTICE IN ORDER TO FOLLOW ITS POLICY OF CONSTANTLY STRIVING TO MANUFACTURE A BETTER PRODUCT WITHOUT INCURRING ANY LIABILITY TO PROVIDE THESE NEW FEATURES ON ANY UNITS PREVIOUSLY MANUFACTURED. FABRICATION • MACHINING • WELDING • MANUFACTURER OF Northshore Manufacturing Inc. www.builtritehandlers.com P.O. Box 273 530 Recycle Center Drive Two Harbors, Minnesota USA 55616 218-834-5555 1/21/08 FEATURES: 1. 1-1/2” Cylinder pins 2. 2” Arm pivot pins 3. Replaceable Bushings at hinge points OPTIONS: 1. Bolt on cylinder guards 2. High pressure cylinders
