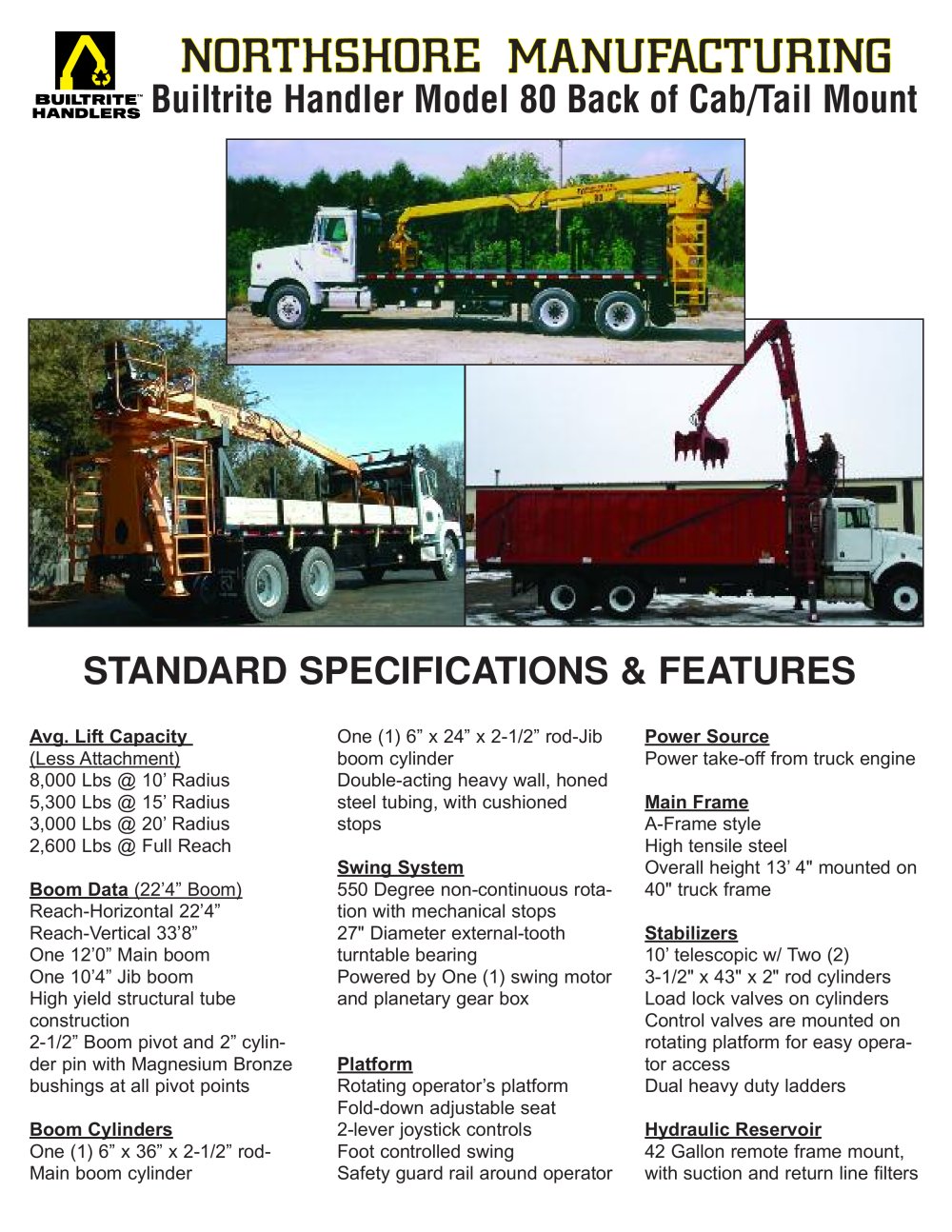

80-TM Truck Mounted Material Handler specification sheet - North Shore Manufacturing - #1

Text version of the page

Builtrite Handler Model 80 Back of Cab/Tail Mount Avg. Lift Capacity (Less Attachment) 8,000 Lbs @ 10’ Radius 5,300 Lbs @ 15’ Radius 3,000 Lbs @ 20’ Radius 2,600 Lbs @ Full Reach Boom Data (22’4” Boom) Reach-Horizontal 22’4” Reach-Vertical 33’8” One 12’0” Main boom One 10’4” Jib boom High yield structural tube construction 2-1/2” Boom pivot and 2” cylinder pin with Magnesium Bronze bushings at all pivot points Boom Cylinders One (1) 6” x 36” x 2-1/2” rod- Main boom cylinder One (1) 6” x 24” x 2-1/2” rod-Jib boom cylinder Double-acting heavy wall, honed steel tubing, with cushioned stops Swing System 550 Degree non-continuous rotation with mechanical stops 27" Diameter external-tooth turntable bearing Powered by One (1) swing motor and planetary gear box Platform Rotating operator’s platform Fold-down adjustable seat 2-lever joystick controls Foot controlled swing Safety guard rail around operator Power Source Power take-off from truck engine Main Frame A-Frame style High tensile steel Overall height 13’ 4" mounted on 40" truck frame Stabilizers 10’ telescopic w/ Two (2) 3-1/2" x 43" x 2" rod cylinders Load lock valves on cylinders Control valves are mounted on rotating platform for easy operator access Dual heavy duty ladders Hydraulic Reservoir 42 Gallon remote frame mount, with suction and return line filters STANDARD SPECIFICATIONS & FEATURES
