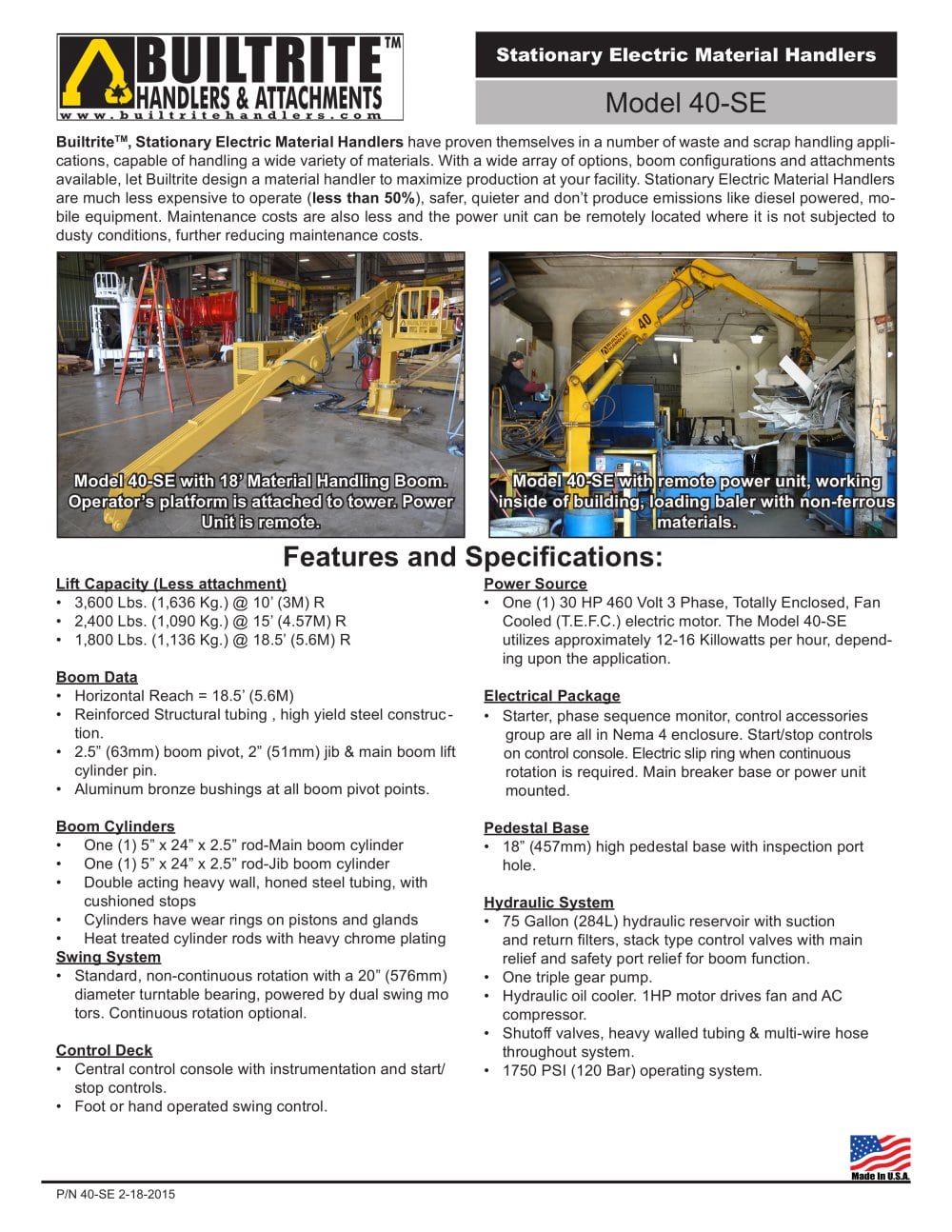

Builtrite Model 40 Material Handler Lift Capacity (Less Attachment) 3,600 Lbs @ 10’ Radius 2,400 Lbs @ 15’ Radius 1,800 Lbs @ Full Reach (20’4”) Boom Data (20’4”Boom) Reach-Horizontal 20’4” Structural tubing with reinforced plate 2” Boom and cylinder pins with Magnesium Bronze bushings at all pivot points Boom Cylinders One (1) 5” x 24” x 2-1/2” rod- Main boom cylinder One (1) 5” x 24” x 2-1/2” rod-Jib boom cylinder Double-acting heavy wall, honed steel tubing, with cushioned stops Cylinders have wear rings on piston and glands Heat treated cylinder rods with heavy chrome plating Swing System 550 Degree rotation on a 20” diameter turntable bearing Powered by two swing motors Control Deck Central control console with instrumentation and start/stop controls Foot operated swing control Power Source One (1) 30 HP 440 Volt 3Ph T.E.F.C. electric motor Electrical Package Starter phase sequence, control accessories group, breaker in Nema 4 enclosure, start/stop button on control console STANDARD SPECIFICATIONS & FEATURES
