Builtrite Model 1300 Material Handler

Swing System

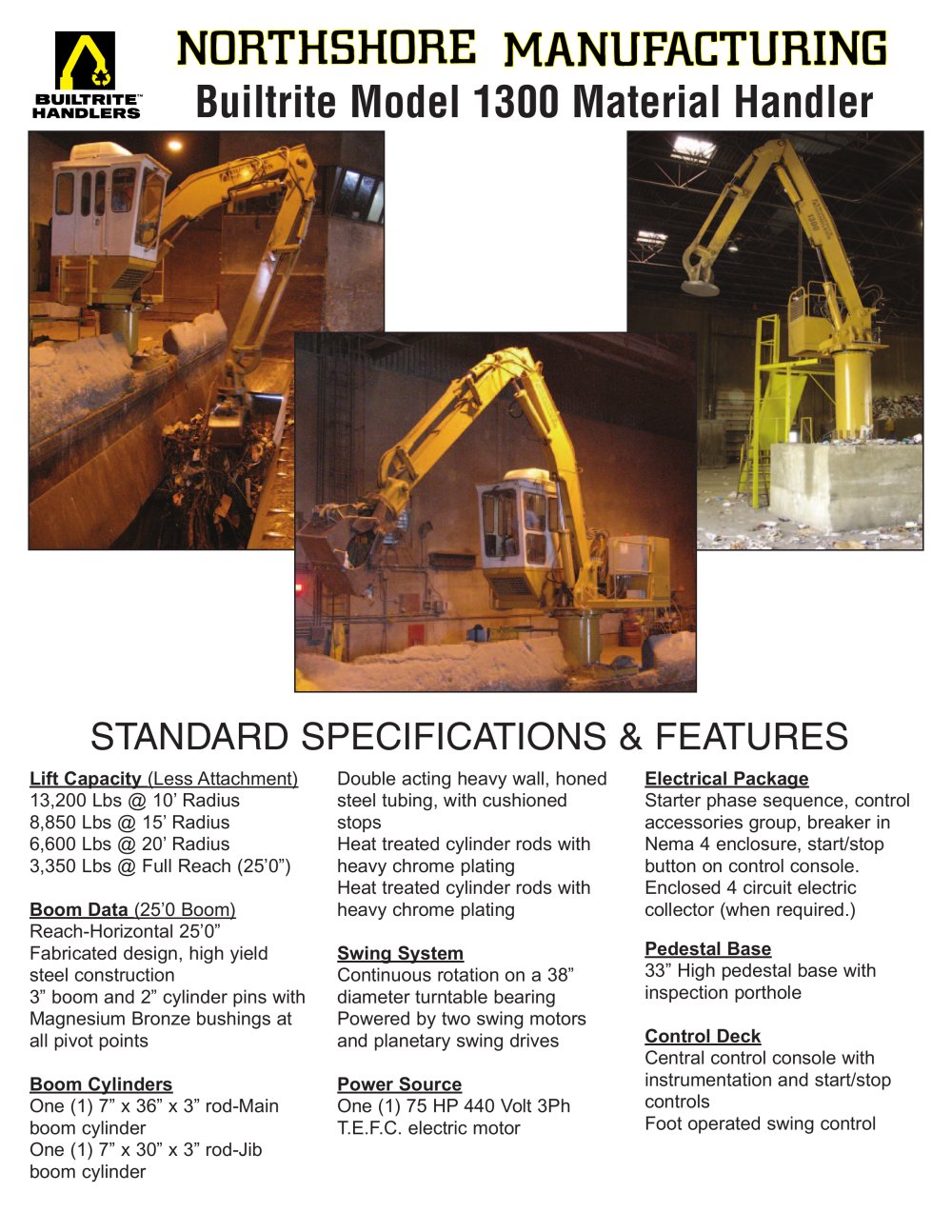

STANDARD SPECIFICATIONS & FEATURES

Lift Capacity (Less Attachment) Electrical Package Pedestal Base 13,200 Lbs @ 10’Radius8,850 Lbs @ 15’Radius 6,600 Lbs @ 20’Radius 3,350 Lbs @ Full Reach (25’0”) Starter phase sequence, controlaccessories group, breaker in Nema 4 enclosure, start/stop button on control console. Enclosed 4 circuit electric collector (when required.) Boom Data Boom Cylinders (25’0 Boom) Reach-Horizontal 25’0”Fabricated design, high yield steel construction 3” boom and 2” cylinder pins with Magnesium Bronze bushings at all pivot points Continuous rotation on a 38”diameter turntable bearing Powered by two swing motors and planetary swing drives 33” High pedestal base withinspection porthole Power Source Control Deck Central control console withinstrumentation and start/stop controls Foot operated swing control One (1) 7” x 36” x 3” rod-Mainboom cylinder One (1) 7” x 30” x 3” rod-Jib boom cylinder Double acting heavy wall, honedsteel tubing, with cushioned stops Heat treated cylinder rods with heavy chrome plating Heat treated cylinder rods with heavy chrome plating One (1) 75 HP440 Volt 3PhT.E.F.C. electric motor
