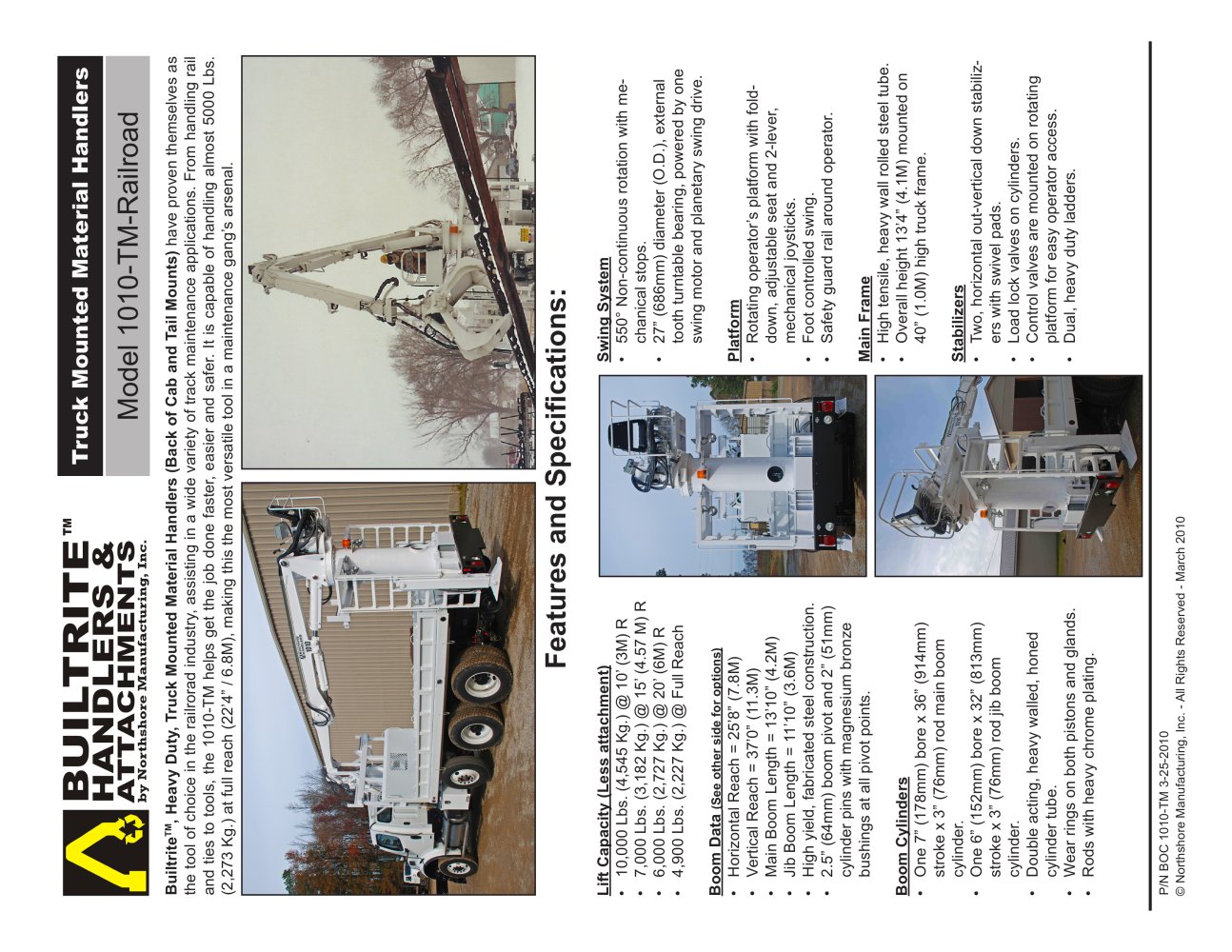

1010-TM Truck Mounted Material Handler - Back of the Cab specification sheet - North Shore Manufacturing - #1

Text version of the page

Truck Mounted Material Handlers Model 1010-TM-Railroad BuiltriteTM, Heavy Duty, Truck Mounted Material Handlers (Back of Cab and Tail Mounts) have proven themselves as the tool of choice in the railrorad industry, assisting in a wide variety of track maintenance applications. From handling rail and ties to tools, the 1010-TM helps get the job done faster, easier and safer. It is capable of handling almost 5000 Lbs. (2,273 Kg.) at full reach (22’4” / 6.8M), making this the most versatile tool in a maintenance gang’s arsenal. P/N BOC 1010-TM 3-25-2010 Features and Specifications: Lift Capacity (Less attachment) • 10,000 Lbs. (4,545 Kg.) @ 10’ (3M) R • 7,000 Lbs. (3,182 Kg.) @ 15’ (4.57 M) R • 6,000 Lbs. (2,727 Kg.) @ 20’ (6M) R • 4,900 Lbs. (2,227 Kg.) @ Full Reach Boom Data (See other side for options) • Horizontal Reach = 25’8” (7.8M) • Vertical Reach = 37’0” (11.3M) • Main Boom Length = 13’10” (4.2M) • Jib Boom Length = 11’10” (3.6M) • High yield, fabricated steel construction. • 2.5” (64mm) boom pivot and 2” (51mm) cylinder pins with magnesium bronze bushings at all pivot points. Boom Cylinders • One 7” (178mm) bore x 36” (914mm) stroke x 3” (76mm) rod main boom cylinder. • One 6” (152mm) bore x 32” (813mm) stroke x 3” (76mm) rod jib boom cylinder. • Double acting, heavy walled, honed cylinder tube. • Wear rings on both pistons and glands. • Rods with heavy chrome plating. Swing System • 550° Non-continuous rotation with me- chanical stops. • 27” (686mm) diameter (O.D.), external tooth turntable bearing, powered by one swing motor and planetary swing drive. Platform • Rotating operator’s platform with fold- down, adjustable seat and 2-lever, mechanical joysticks. • Foot controlled swing. • Safety guard rail around operator. Main Frame • High tensile, heavy wall rolled steel tube. • Overall height 13’4” (4.1M) mounted on 40” (1.0M) high truck frame. Stabilizers • Two, horizontal out-vertical down stabiliz- ers with swivel pads. • Load lock valves on cylinders. • Control valves are mounted on rotating platform for easy operator access. • Dual, heavy duty ladders. © Northshore Manufacturing, Inc. - All Rights Reserved - March 2010
