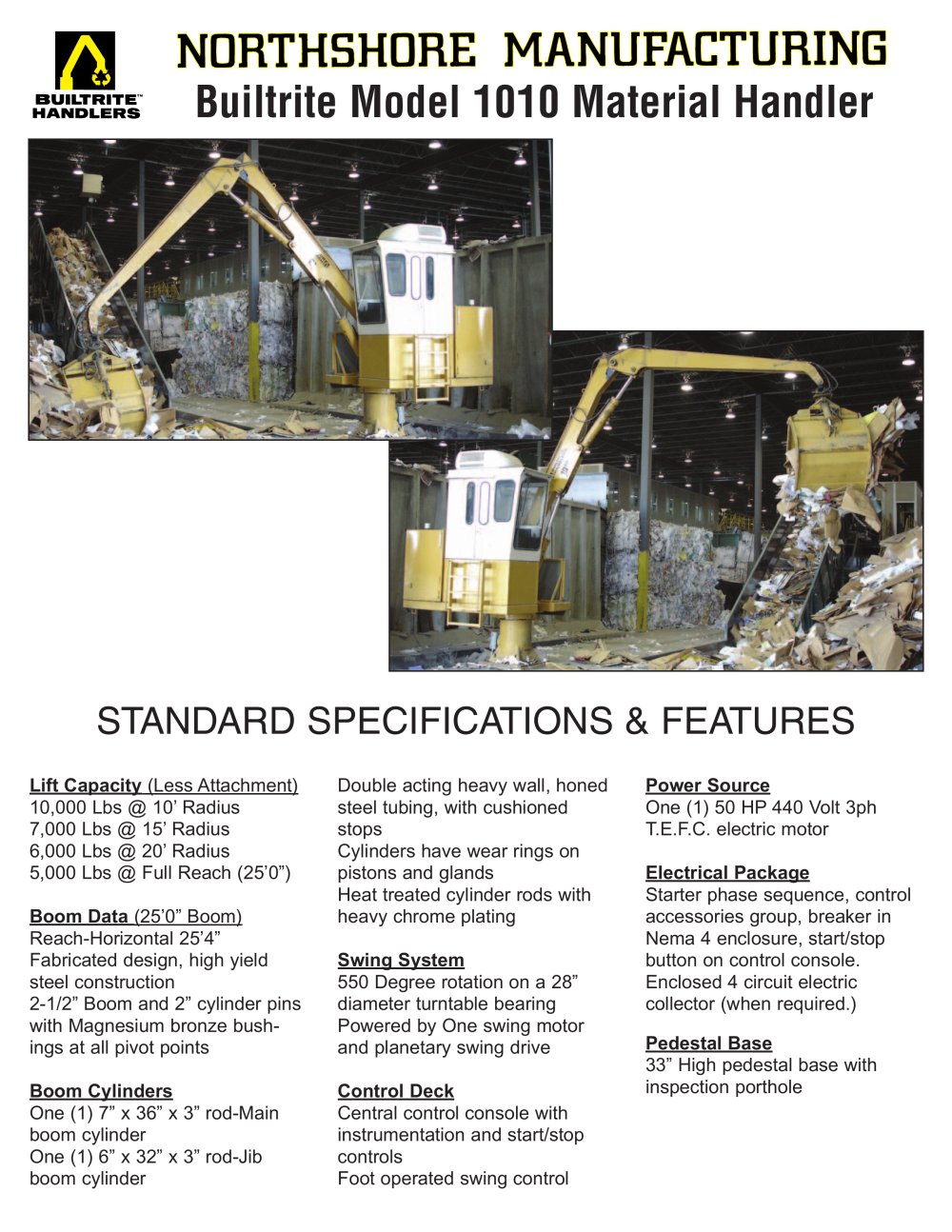

Builtrite Model 1010 Material Handler Lift Capacity (Less Attachment) 10,000 Lbs @ 10’ Radius 7,000 Lbs @ 15’ Radius 6,000 Lbs @ 20’ Radius 5,000 Lbs @ Full Reach (25’0”) Boom Data (25’0” Boom) Reach-Horizontal 25’4” Fabricated design, high yield steel construction 2-1/2” Boom and 2” cylinder pins with Magnesium bronze bushings at all pivot points Boom Cylinders One (1) 7” x 36” x 3” rod-Main boom cylinder One (1) 6” x 32” x 3” rod-Jib boom cylinder Double acting heavy wall, honed steel tubing, with cushioned stops Cylinders have wear rings on pistons and glands Heat treated cylinder rods with heavy chrome plating Swing System 550 Degree rotation on a 28” diameter turntable bearing Powered by One swing motor and planetary swing drive Control Deck Central control console with instrumentation and start/stop controls Foot operated swing control STANDARD SPECIFICATIONS & FEATURES Power Source One (1) 50 HP 440 Volt 3ph T.E.F.C. electric motor Electrical Package Starter phase sequence, control accessories group, breaker in Nema 4 enclosure, start/stop button on control console. Enclosed 4 circuit electric collector (when required.) Pedestal Base 33” High pedestal base with inspection porthole
