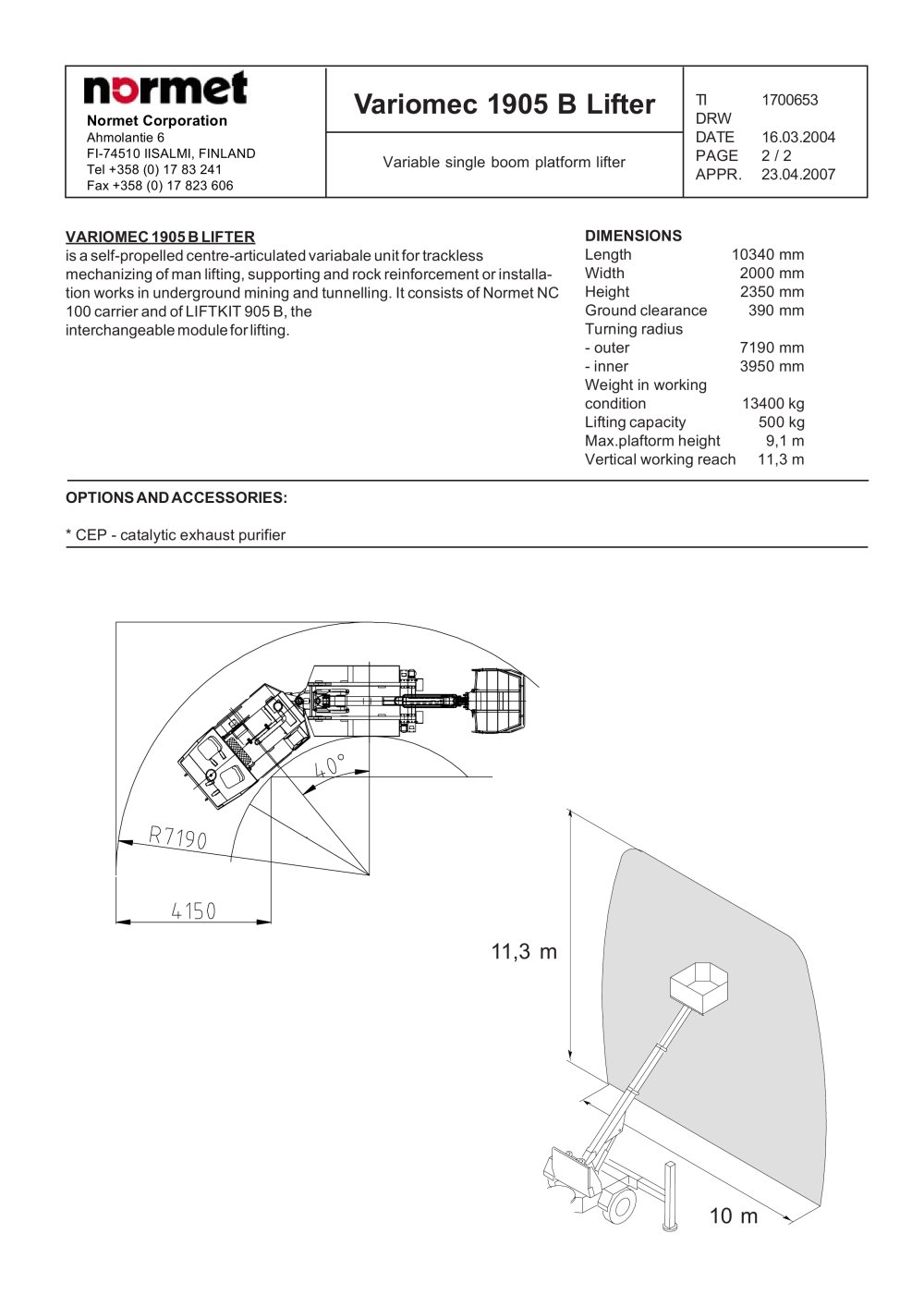

Variomec 1905 B Lifter TI 1700653 DRW DATE 16.03.2004 PAGE 2 / 2 APPR. 23.04.2007 Variable single boom platform lifter Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 VARIOMEC 1905 B LIFTER is a self-propelled centre-articulated variabale unit for trackless mechanizing of man lifting, supporting and rock reinforcement or installation works in underground mining and tunnelling. It consists of Normet NC 100 carrier and of LIFTKIT 905 B, the interchangeable module for lifting. OPTIONS AND ACCESSORIES: * CEP - catalytic exhaust purifier DIMENSIONS Length 10340 mm Width 2000 mm Height 2350 mm Ground clearance 390 mm Turning radius - outer 7190 mm - inner 3950 mm Weight in working condition 13400 kg Lifting capacity 500 kg Max.plaftorm height 9,1 m Vertical working reach 11,3 m 10 m 11,3 m
