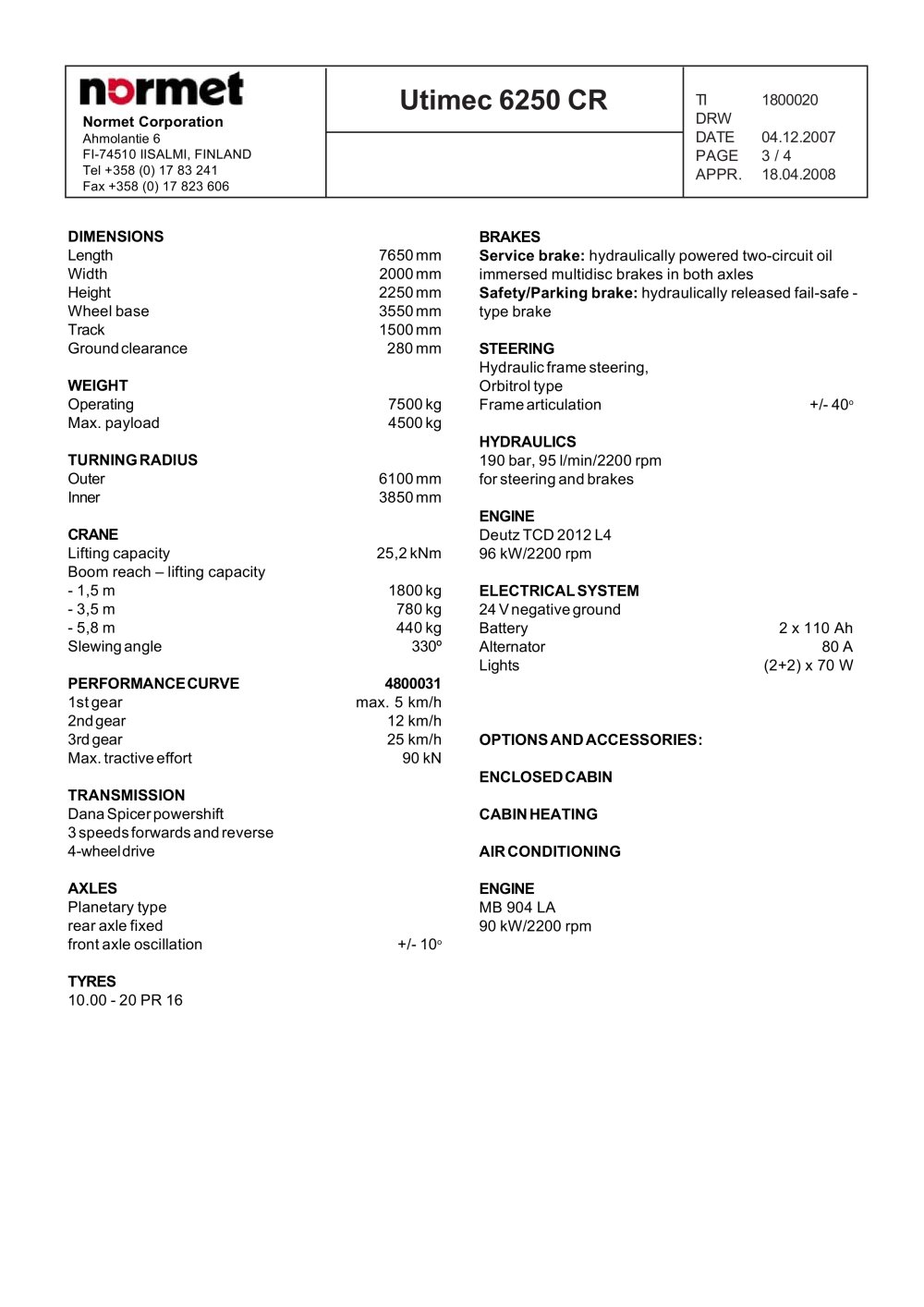

Utimec 6250 CR TI 1800020 DRW DATE 04.12.2007 PAGE 3 / 4 APPR. 18.04.2008 Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 DIMENSIONS Length 7650 mm Width 2000 mm Height 2250 mm Wheel base 3550 mm Track 1500 mm Ground clearance 280 mm WEIGHT Operating 7500 kg Max. payload 4500 kg TURNING RADIUS Outer 6100 mm Inner 3850 mm CRANE Lifting capacity 25,2 kNm Boom reach – lifting capacity - 1,5 m 1800 kg - 3,5 m 780 kg - 5,8 m 440 kg Slewing angle 330º PERFORMANCE CURVE 4800031 1st gear max. 5 km/h 2nd gear 12 km/h 3rd gear 25 km/h Max. tractive effort 90 kN TRANSMISSION Dana Spicer powershift 3 speeds forwards and reverse 4-wheel drive AXLES Planetary type rear axle fixed front axle oscillation +/- 10o TYRES 10.00 - 20 PR 16 BRAKES Service brake: hydraulically powered two-circuit oil immersed multidisc brakes in both axles Safety/Parking brake: hydraulically released fail-safe - type brake STEERING Hydraulic frame steering, Orbitrol type Frame articulation +/- 40o HYDRAULICS 190 bar, 95 l/min/2200 rpm for steering and brakes ENGINE Deutz TCD 2012 L4 96 kW/2200 rpm ELECTRICAL SYSTEM 24 V negative ground Battery 2 x 110 Ah Alternator 80 A Lights (2+2) x 70 W OPTIONS AND ACCESSORIES: ENCLOSED CABIN CABIN HEATING AIR CONDITIONING ENGINE MB 904 LA 90 kW/2200 rpm
