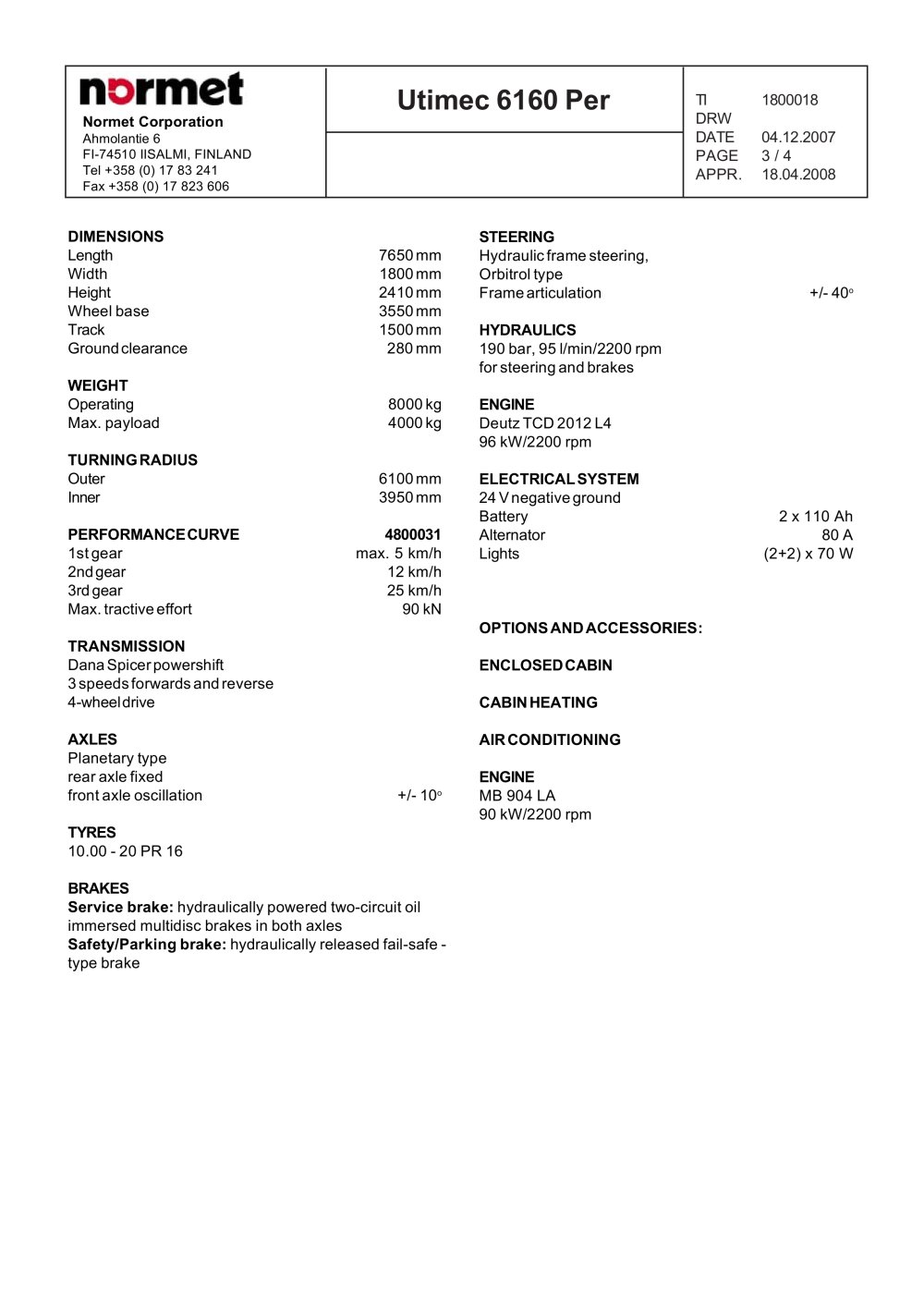

Utimec 6160 Per TI 1800018
DRW
DATE 04.12.2007
PAGE 3 / 4
APPR. 18.04.2008
Normet Corporation
Ahmolantie 6
FI-74510 IISALMI, FINLAND
Tel +358 (0) 17 83 241
Fax +358 (0) 17 823 606
DIMENSIONS
Length 7650 mm
Width 1800 mm
Height 2410 mm
Wheel base 3550 mm
Track 1500 mm
Ground clearance 280 mm
WEIGHT
Operating 8000 kg
Max. payload 4000 kg
TURNING RADIUS
Outer 6100 mm
Inner 3950 mm
PERFORMANCE CURVE 4800031
1st gear max. 5 km/h
2nd gear 12 km/h
3rd gear 25 km/h
Max. tractive effort 90 kN
TRANSMISSION
Dana Spicer powershift
3 speeds forwards and reverse
4-wheel drive
AXLES
Planetary type
rear axle fixed
front axle oscillation +/- 10o
TYRES
10.00 - 20 PR 16
BRAKES
Service brake: hydraulically powered two-circuit oil
immersed multidisc brakes in both axles
Safety/Parking brake: hydraulically released fail-safe -
type brake
STEERING
Hydraulic frame steering,
Orbitrol type
Frame articulation +/- 40o
HYDRAULICS
190 bar, 95 l/min/2200 rpm
for steering and brakes
ENGINE
Deutz TCD 2012 L4
96 kW/2200 rpm
ELECTRICAL SYSTEM
24 V negative ground
Battery 2 x 110 Ah
Alternator 80 A
Lights (2+2) x 70 W
OPTIONS AND ACCESSORIES:
ENCLOSED CABIN
CABIN HEATING
AIR CONDITIONING
ENGINE
MB 904 LA
90 kW/2200 rpm
