Utimec 1600 Agitator - Normet International Ltd. - #3

Text version of the page

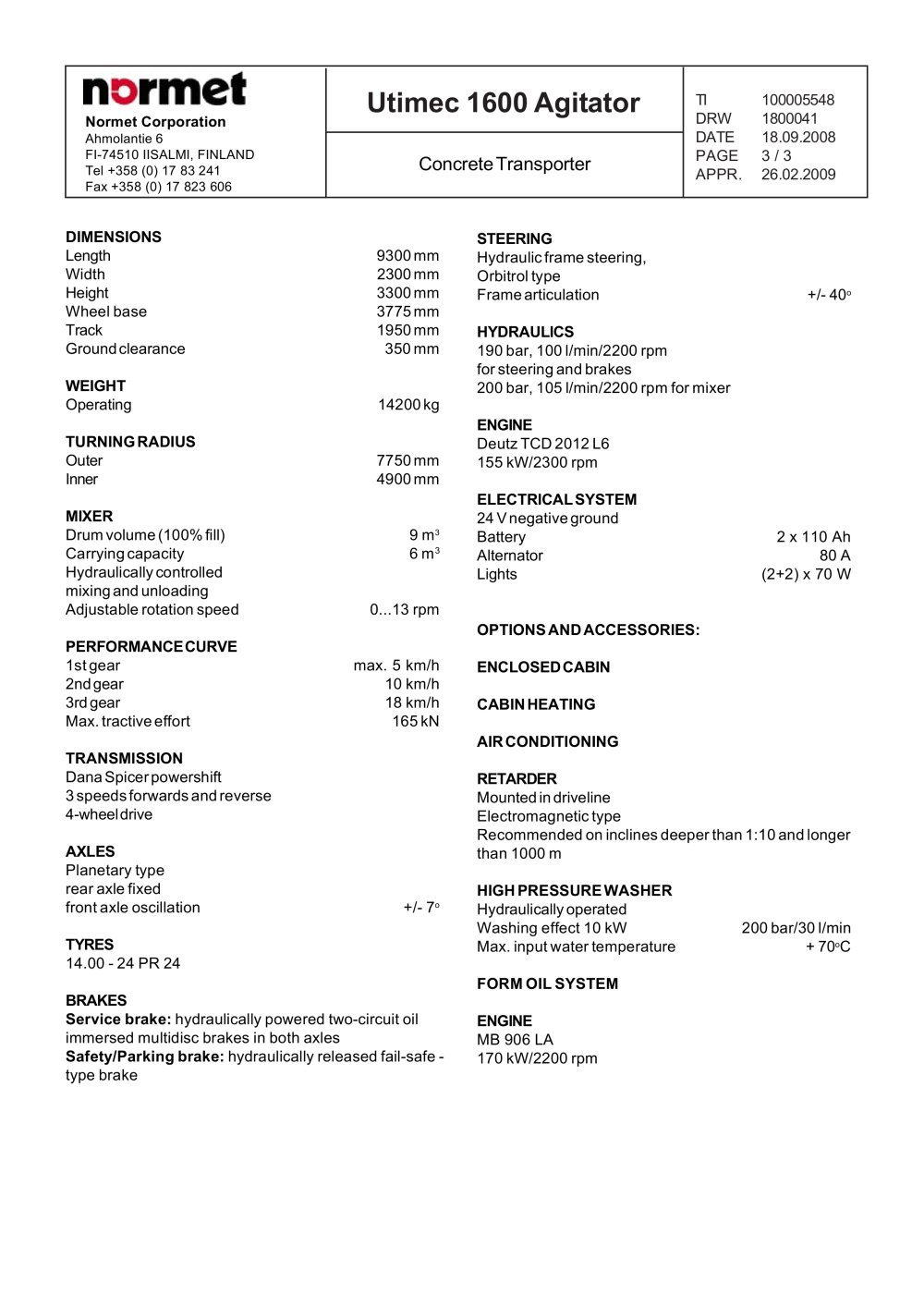

Utimec 1600 Agitator TI 100005548 DRW 1800041 DATE 18.09.2008 PAGE 3 / 3 APPR. 26.02.2009 Concrete Transporter Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 DIMENSIONS Length 9300 mm Width 2300 mm Height 3300 mm Wheel base 3775 mm Track 1950 mm Ground clearance 350 mm WEIGHT Operating 14200 kg TURNING RADIUS Outer 7750 mm Inner 4900 mm MIXER Drum volume (100% fill) 9 m3 Carrying capacity 6 m3 Hydraulically controlled mixing and unloading Adjustable rotation speed 0...13 rpm PERFORMANCE CURVE 1st gear max. 5 km/h 2nd gear 10 km/h 3rd gear 18 km/h Max. tractive effort 165 kN TRANSMISSION Dana Spicer powershift 3 speeds forwards and reverse 4-wheel drive AXLES Planetary type rear axle fixed front axle oscillation +/- 7o TYRES 14.00 - 24 PR 24 BRAKES Service brake: hydraulically powered two-circuit oil immersed multidisc brakes in both axles Safety/Parking brake: hydraulically released fail-safe - type brake STEERING Hydraulic frame steering, Orbitrol type Frame articulation +/- 40o HYDRAULICS 190 bar, 100 l/min/2200 rpm for steering and brakes 200 bar, 105 l/min/2200 rpm for mixer ENGINE Deutz TCD 2012 L6 155 kW/2300 rpm ELECTRICAL SYSTEM 24 V negative ground Battery 2 x 110 Ah Alternator 80 A Lights (2+2) x 70 W OPTIONS AND ACCESSORIES: ENCLOSED CABIN CABIN HEATING AIR CONDITIONING RETARDER Mounted in driveline Electromagnetic type Recommended on inclines deeper than 1:10 and longer than 1000 m HIGH PRESSURE WASHER Hydraulically operated Washing effect 10 kW 200 bar/30 l/min Max. input water temperature + 70oC FORM OIL SYSTEM ENGINE MB 906 LA 170 kW/2200 rpm
