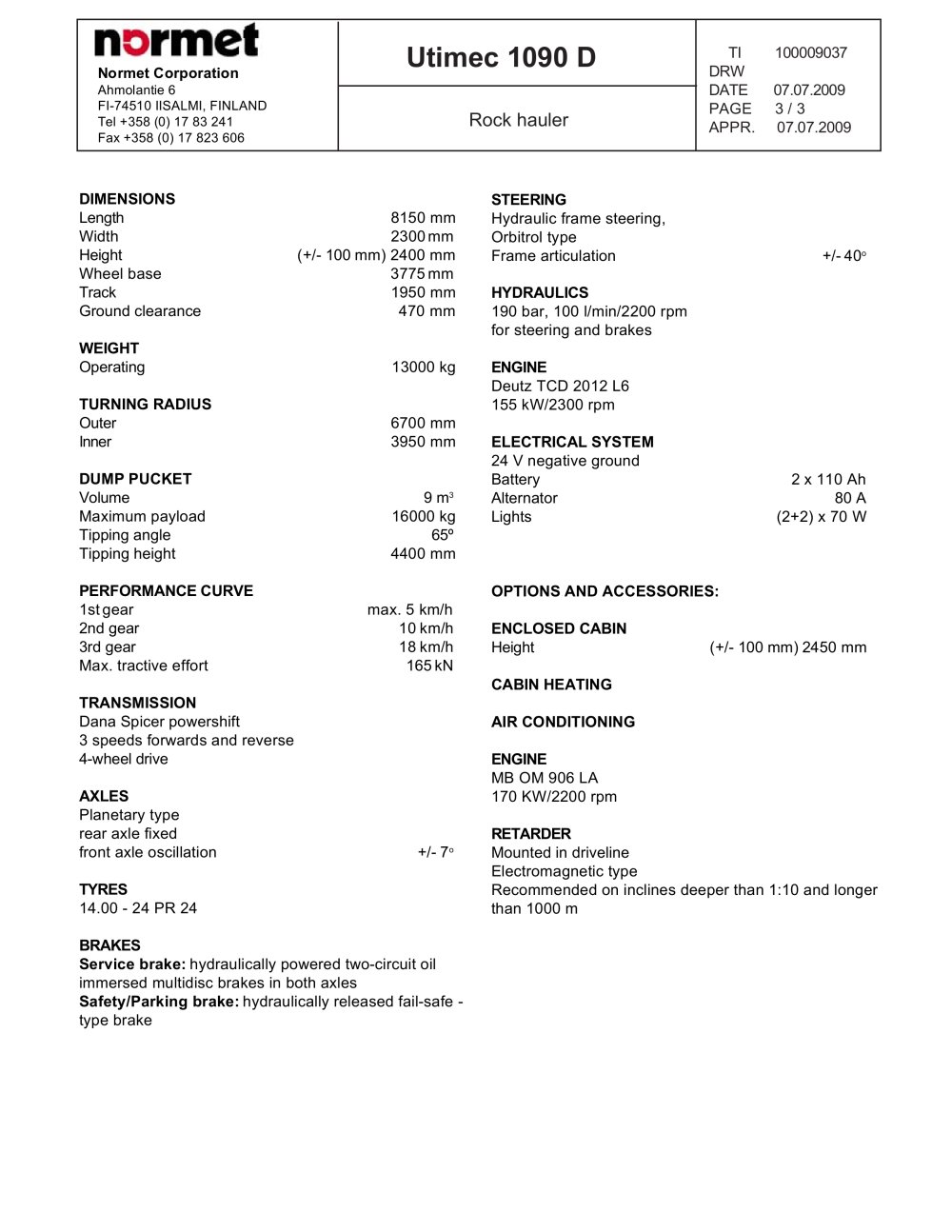

............ 1090 D TI 100009037 DRW DATE 07.07.2009 PAGE 3 / 3 Rock hauler APPR. 07.07.2009 Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 DIMENSIONS Length 8150 mm Width 2300 mm Height (+/- 100 mm) 2400 mm Wheel base 3775 mm Track 1950 mm Ground clearance 470 mm WEIGHT Operating 13000 kg TURNING RADIUS Outer 6700 mm Inner 3950 mm DUMP PUCKET Volume 9 m3 Maximum payload 16000 kg Tipping angle 65º Tipping height 4400 mm PERFORMANCE CURVE 1st gear max. 5 km/h 2nd gear 10 km/h 3rd gear 18 km/h Max. tractive effort 165 kN TRANSMISSION Dana Spicer powershift 3 speeds forwards and reverse 4-wheel drive AXLES Planetary type rear axle fixed front axle oscillation +/- 7o TYRES 14.00 - 24 PR 24 BRAKES Service brake: hydraulically powered two-circuit oil immersed multidisc brakes in both axles Safety/Parking brake: hydraulically released fail-safe - type brake STEERING Hydraulic frame steering, Orbitrol type Frame articulation +/- 40o HYDRAULICS 190 bar, 100 l/min/2200 rpm for steering and brakes ENGINE Deutz TCD 2012 L6 155 kW/2300 rpm ELECTRICAL SYSTEM 24 V negative ground Battery 2 x 110 Ah Alternator 80 A Lights (2+2) x 70 W OPTIONS AND ACCESSORIES: ENCLOSED CABIN Height (+/- 100 mm) 2450 mm CABIN HEATING AIR CONDITIONING ENGINE MB OM 906 LA 170 KW/2200 rpm RETARDER Mounted in driveline Electromagnetic type Recommended on inclines deeper than 1:10 and longer than 1000 m
