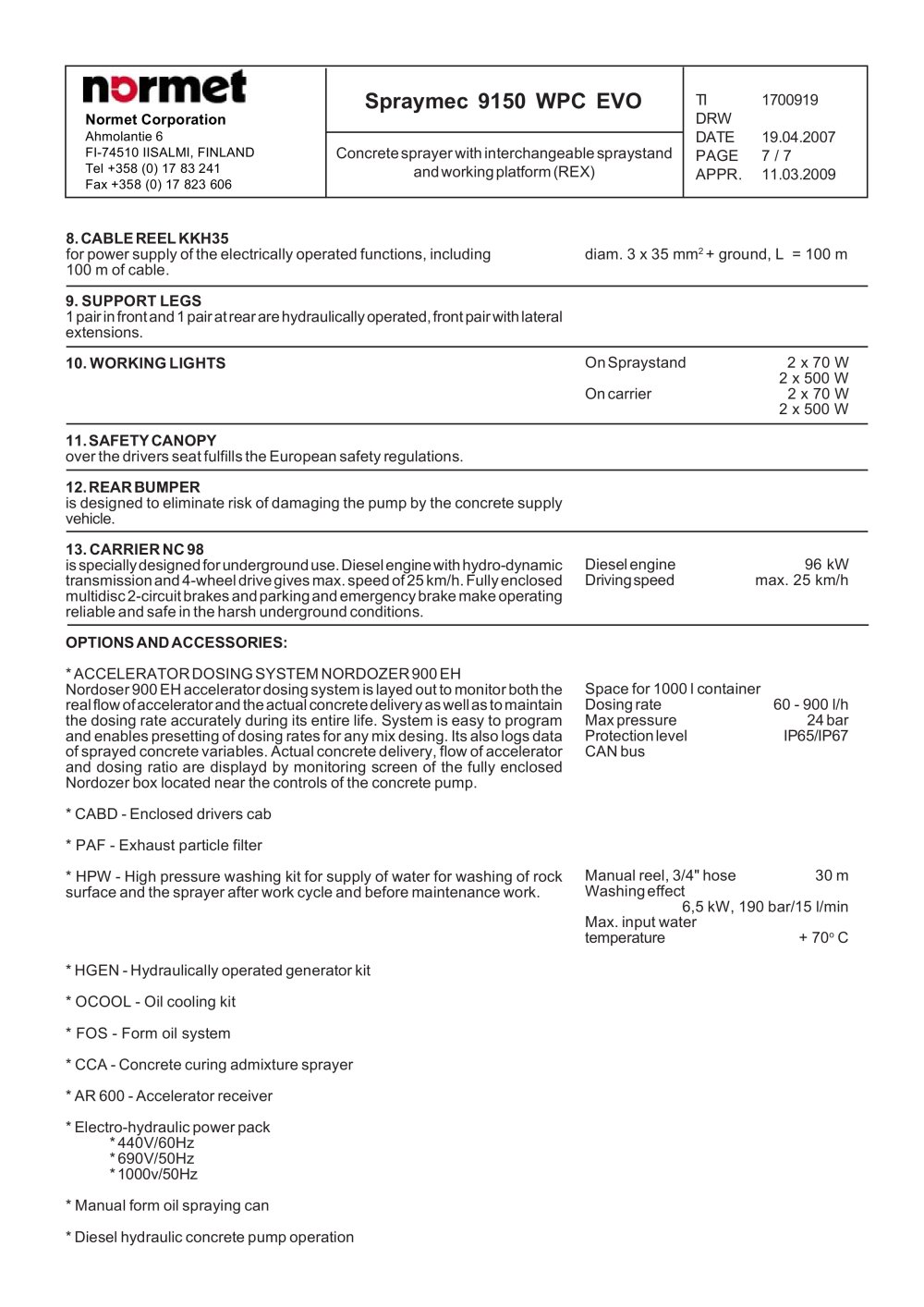

Spraymec 9150 WPC EVO TI 1700919
DRW
DATE 19.04.2007
PAGE 7 / 7
APPR. 11.03.2009
Concrete sprayer with interchangeable spraystand
and working platform (REX)
Normet Corporation
Ahmolantie 6
FI-74510 IISALMI, FINLAND
Tel +358 (0) 17 83 241
Fax +358 (0) 17 823 606
8. CABLE REEL KKH35
for power supply of the electrically operated functions, including
100 m of cable.
9. SUPPORT LEGS
1 pair in front and 1 pair at rear are hydraulically operated, front pair with lateral
extensions.
10. WORKING LIGHTS
11. SAFETY CANOPY
over the drivers seat fulfills the European safety regulations.
12. REAR BUMPER
is designed to eliminate risk of damaging the
pump by the concrete supply
vehicle.
13. CARRIER NC 98
is specially designed for underground use. Diesel engine with hydro-dynamic
transmission and 4-wheel drive gives max. speed of 25 km/h. Fully enclosed
multidisc 2-circuit brakes and parking and emergency brake make operating
reliable and safe in the harsh underground conditions.
OPTIONS AND ACCESSORIES:
* ACCELERATOR DOSING SYSTEM NORDOZER 900 EH
Nordoser 900 EH accelerator dosing system is layed out to monitor both the
real flow of accelerator and the actual concrete delivery as well as to maintain
the dosing rate accurately during its entire life. System is easy to program
and enables presetting of dosing rates for any mix desing. Its also logs data
of sprayed concrete variables. Actual concrete delivery, flow of accelerator
and dosing ratio are displayd by monitoring screen of the fully enclosed
Nordozer box located near the controls of the concrete
pump.
* CABD - Enclosed drivers cab
* PAF - Exhaust particle filter
* HPW - High pressure washing kit for supply of water for washing of rock
surface and the sprayer after work cycle and before maintenance work.
* HGEN - Hydraulically operated generator kit
* OCOOL - Oil cooling kit
* FOS - Form oil system
* CCA - Concrete curing admixture sprayer
* AR 600 - Accelerator receiver
* Electro-hydraulic power pack
* 440V/60Hz
* 690V/50Hz
* 1000v/50Hz
* Manual form oil spraying can
* Diesel hydraulic concrete
pump operation
diam. 3 x 35 mm2 + ground, L = 100 m
On Spraystand 2 x 70 W
2 x 500 W
On carrier 2 x 70 W
2 x 500 W
Diesel engine 96 kW
Driving speed max. 25 km/h
Space for 1000 l container
Dosing rate 60 - 900 l/h
Max pressure 24 bar
Protection level IP65/IP67
CAN bus
Manual reel, 3/4" hose 30 m
Washing effect
6,5 kW, 190 bar/15 l/min
Max. input water
temperature + 70o C
