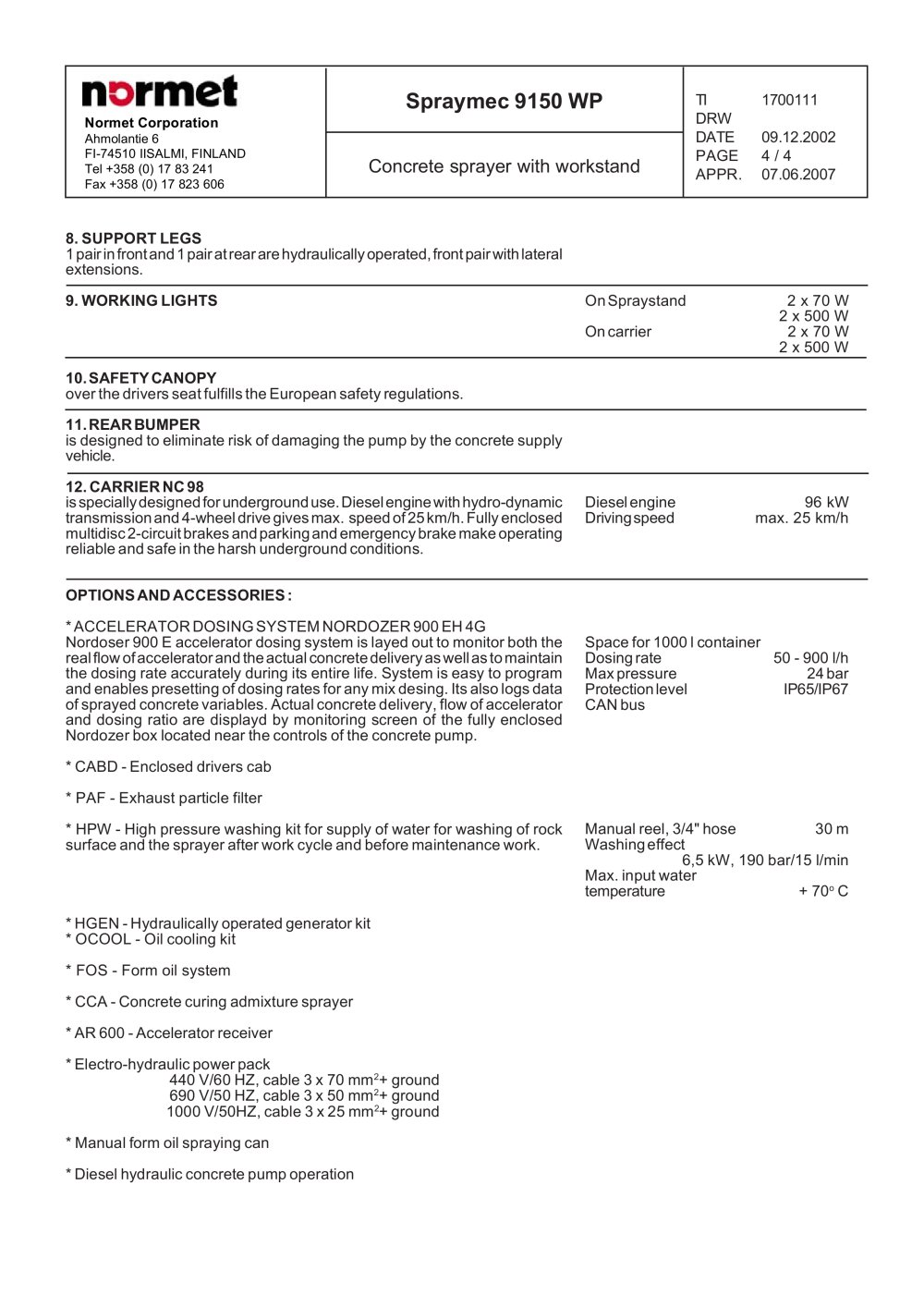

Spraymec 9150 WP TI 1700111 DRW DATE 09.12.2002 PAGE 4 / 4 Concrete sprayer with workstand APPR. 07.06.2007 Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 8. SUPPORT LEGS 1 pair in front and 1 pair at rear are hydraulically operated, front pair with lateral extensions. 9. WORKING LIGHTS 10. SAFETY CANOPY over the drivers seat fulfills the European safety regulations. 11. REAR BUMPER is designed to eliminate risk of damaging the pump by the concrete supply vehicle. 12. CARRIER NC 98 is specially designed for underground use. Diesel engine with hydro-dynamic transmission and 4-wheel drive gives max. speed of 25 km/h. Fully enclosed multidisc 2-circuit brakes and parking and emergency brake make operating reliable and safe in the harsh underground conditions. OPTIONS AND ACCESSORIES : * ACCELERATOR DOSING SYSTEM NORDOZER 900 EH 4G Nordoser 900 E accelerator dosing system is layed out to monitor both the real flow of accelerator and the actual concrete delivery as well as to maintain the dosing rate accurately during its entire life. System is easy to program and enables presetting of dosing rates for any mix desing. Its also logs data of sprayed concrete variables. Actual concrete delivery, flow of accelerator and dosing ratio are displayd by monitoring screen of the fully enclosed Nordozer box located near the controls of the concrete pump. * CABD - Enclosed drivers cab * PAF - Exhaust particle filter * HPW - High pressure washing kit for supply of water for washing of rock surface and the sprayer after work cycle and before maintenance work. * HGEN - Hydraulically operated generator kit * OCOOL - Oil cooling kit * FOS - Form oil system * CCA - Concrete curing admixture sprayer * AR 600 - Accelerator receiver * Electro-hydraulic power pack 440 V/60 HZ, cable 3 x 70 mm2+ ground 690 V/50 HZ, cable 3 x 50 mm2+ ground 1000 V/50HZ, cable 3 x 25 mm2+ ground * Manual form oil spraying can * Diesel hydraulic concrete pump operation On Spraystand 2 x 70 W 2 x 500 W On carrier 2 x 70 W 2 x 500 W Diesel engine 96 kW Driving speed max. 25 km/h Space for 1000 l container Dosing rate 50 - 900 l/h Max pressure 24 bar Protection level IP65/IP67 CAN bus Manual reel, 3/4" hose 30 m Washing effect 6,5 kW, 190 bar/15 l/min Max. input water temperature + 70o C
