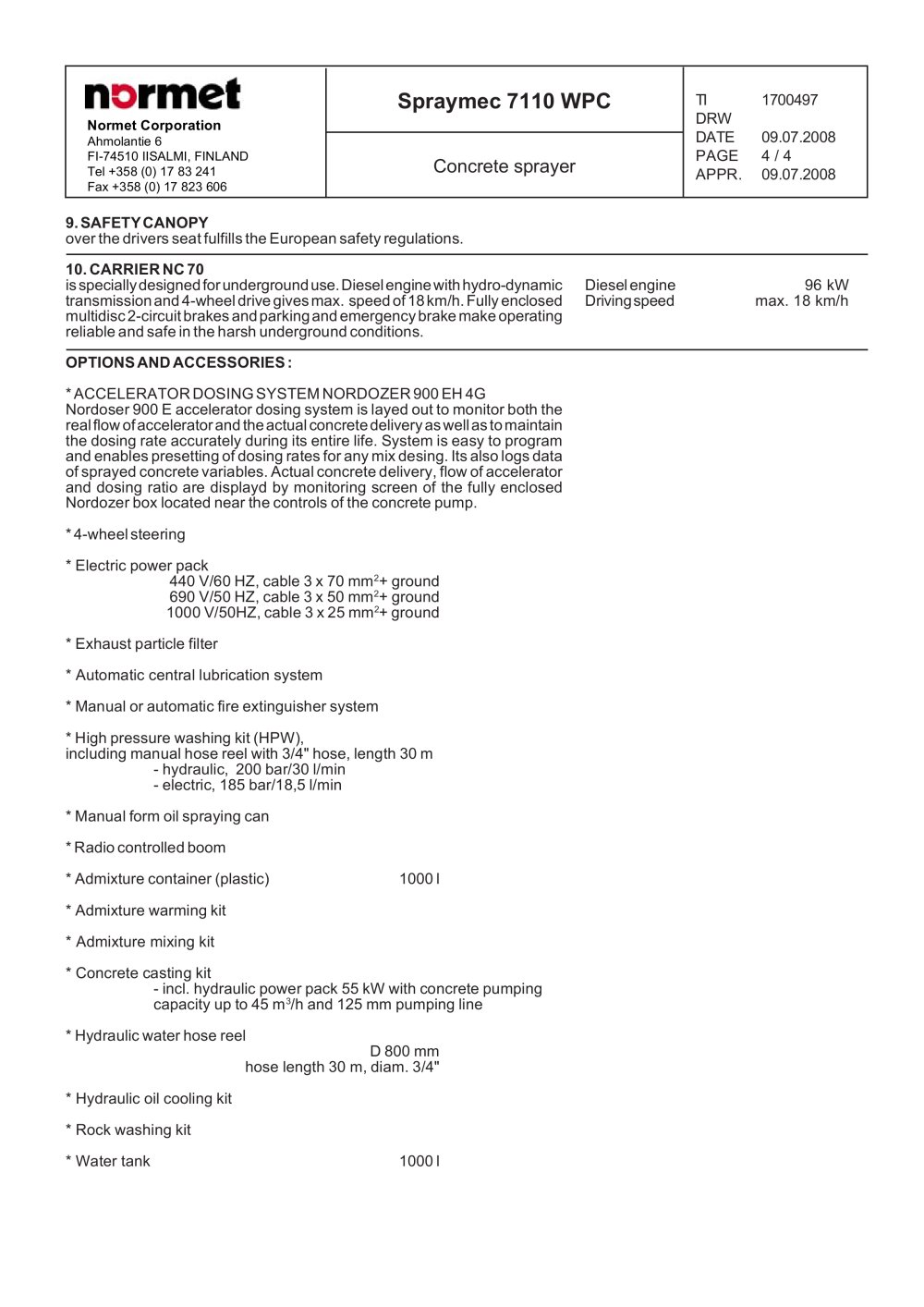

Spraymec 7110 WPC TI 1700497 DRW DATE 09.07.2008 PAGE 4 / 4 Concrete sprayer APPR. 09.07.2008 Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 9. SAFETY CANOPY over the drivers seat fulfills the European safety regulations. 10. CARRIER NC 70 is specially designed for underground use. Diesel engine with hydro-dynamic transmission and 4-wheel drive gives max. speed of 18 km/h. Fully enclosed multidisc 2-circuit brakes and parking and emergency brake make operating reliable and safe in the harsh underground conditions. OPTIONS AND ACCESSORIES : * ACCELERATOR DOSING SYSTEM NORDOZER 900 EH 4G Nordoser 900 E accelerator dosing system is layed out to monitor both the real flow of accelerator and the actual concrete delivery as well as to maintain the dosing rate accurately during its entire life. System is easy to program and enables presetting of dosing rates for any mix desing. Its also logs data of sprayed concrete variables. Actual concrete delivery, flow of accelerator and dosing ratio are displayd by monitoring screen of the fully enclosed Nordozer box located near the controls of the concrete pump. * 4-wheel steering * Electric power pack 440 V/60 HZ, cable 3 x 70 mm2+ ground 690 V/50 HZ, cable 3 x 50 mm2+ ground 1000 V/50HZ, cable 3 x 25 mm2+ ground * Exhaust particle filter * Automatic central lubrication system * Manual or automatic fire extinguisher system * High pressure washing kit (HPW), including manual hose reel with 3/4" hose, length 30 m - hydraulic, 200 bar/30 l/min - electric, 185 bar/18,5 l/min * Manual form oil spraying can * Radio controlled boom * Admixture container (plastic) 1000 l * Admixture warming kit * Admixture mixing kit * Concrete casting kit - incl. hydraulic power pack 55 kW with concrete pumping capacity up to 45 m3/h and 125 mm pumping line * Hydraulic water hose reel D 800 mm hose length 30 m, diam. 3/4" * Hydraulic oil cooling kit * Rock washing kit * Water tank 1000 l Diesel engine 96 kW Driving speed max. 18 km/h
