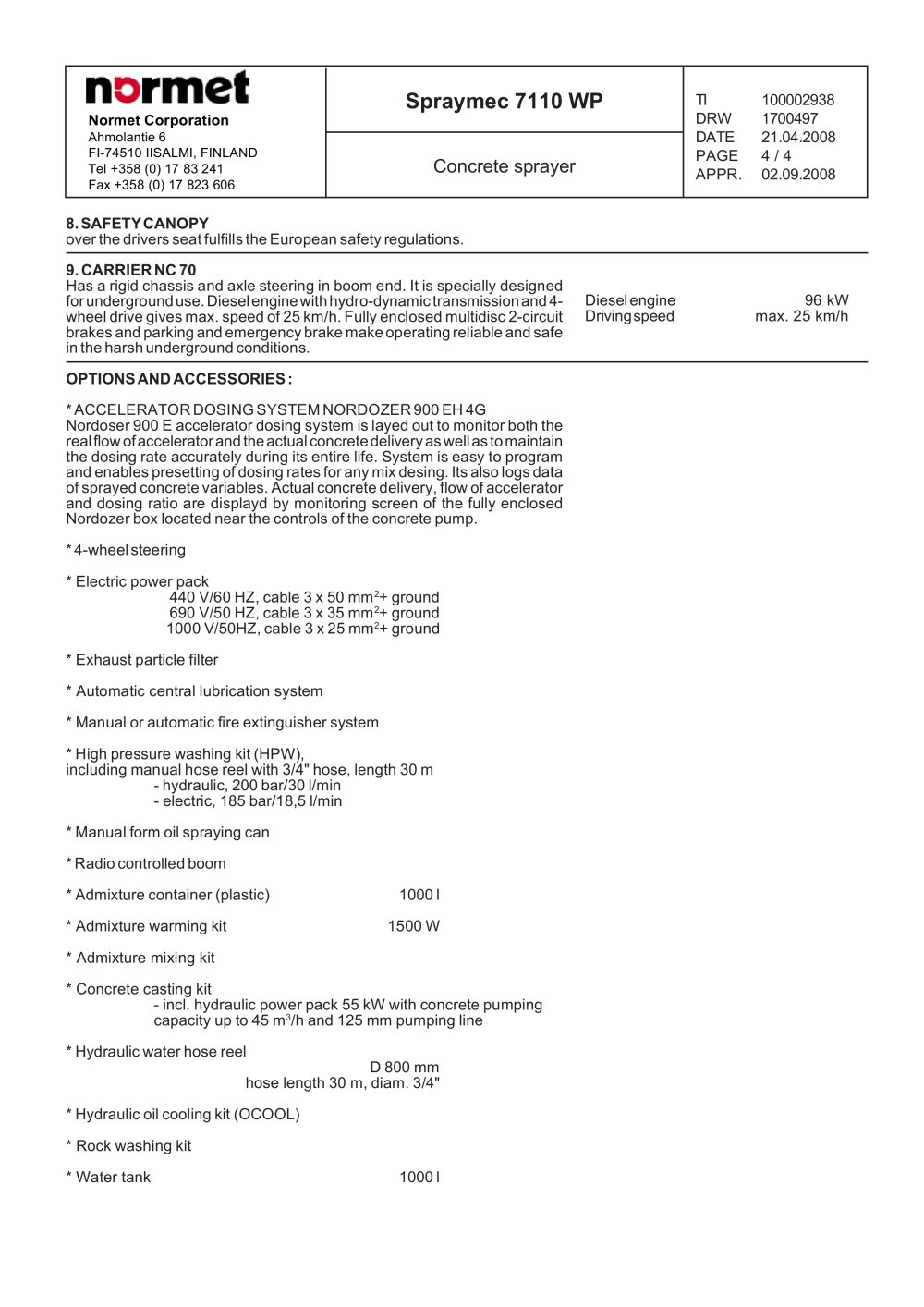

Spraymec 7110 WP TI 100002938
DRW 1700497
DATE 21.04.2008
PAGE 4 / 4
Concrete sprayer APPR. 02.09.2008
Normet Corporation
Ahmolantie 6
FI-74510 IISALMI, FINLAND
Tel +358 (0) 17 83 241
Fax +358 (0) 17 823 606
8. SAFETY CANOPY
over the drivers seat fulfills the European safety regulations.
9. CARRIER NC 70
Has a rigid chassis and axle steering in boom end. It is specially designed
for underground use. Diesel engine with hydro-dynamic transmission and 4-
wheel drive gives max. speed of 25 km/h. Fully enclosed multidisc 2-circuit
brakes and parking and emergency brake make operating reliable and safe
in the harsh underground conditions.
OPTIONS AND ACCESSORIES :
* ACCELERATOR DOSING SYSTEM NORDOZER 900 EH 4G
Nordoser 900 E accelerator dosing system is layed out to monitor both the
real flow of accelerator and the actual concrete delivery as well as to maintain
the dosing rate accurately during its entire life. System is easy to program
and enables presetting of dosing rates for any mix desing. Its also logs data
of sprayed concrete variables. Actual concrete delivery, flow of accelerator
and dosing ratio are displayd by monitoring screen of the fully enclosed
Nordozer box located near the controls of the
concrete pump.
* 4-wheel steering
* Electric power pack
440 V/60 HZ, cable 3 x 50 mm2+ ground
690 V/50 HZ, cable 3 x 35 mm2+ ground
1000 V/50HZ, cable 3 x 25 mm2+ ground
* Exhaust particle filter
* Automatic central lubrication system
* Manual or automatic fire extinguisher system
* High pressure washing kit (HPW),
including manual hose reel with 3/4" hose, length 30 m
- hydraulic, 200 bar/30 l/min
- electric, 185 bar/18,5 l/min
* Manual form oil spraying can
* Radio controlled boom
* Admixture container (plastic) 1000 l
* Admixture warming kit 1500 W
* Admixture mixing kit
* Concrete casting kit
- incl. hydraulic power pack 55 kW with concrete pumping
capacity up to 45 m3/h and 125 mm pumping line
* Hydraulic water hose reel
D 800 mm
hose length 30 m, diam. 3/4"
* Hydraulic oil cooling kit (OCOOL)
* Rock washing kit
* Water tank 1000 l
Diesel engine 96 kW
Driving speed max. 25 km/h
