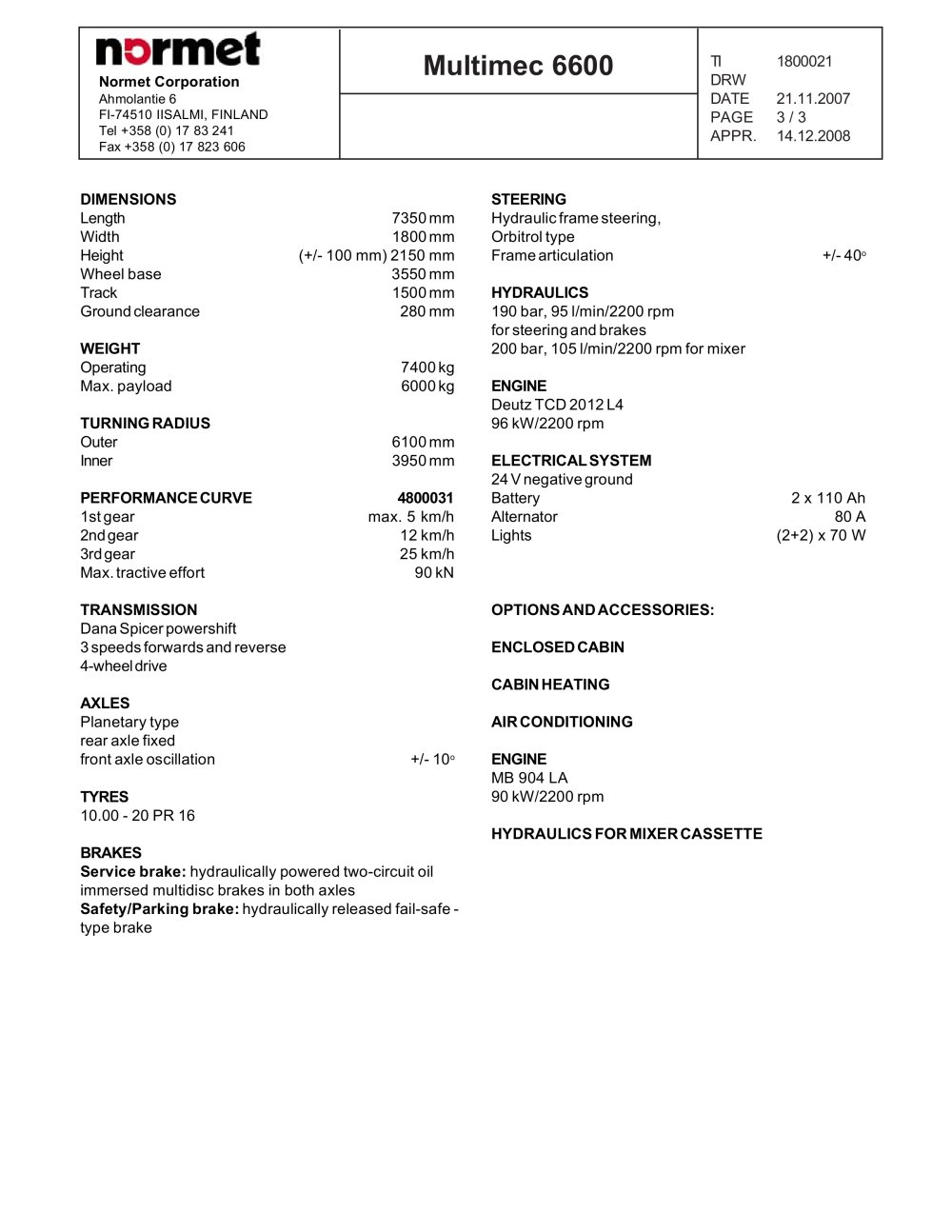

Multimec 6600 TI 1800021 DRW DATE 21.11.2007 PAGE 3 / 3 APPR. 14.12.2008 Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 STEERING Hydraulic frame steering, Orbitrol type Frame articulation +/- 40o HYDRAULICS 190 bar, 95 l/min/2200 rpm for steering and brakes 200 bar, 105 l/min/2200 rpm for mixer ENGINE Deutz TCD 2012 L4 96 kW/2200 rpm ELECTRICAL SYSTEM 24 V negative ground Battery 2 x 110 Ah Alternator 80 A Lights (2+2) x 70 W OPTIONS AND ACCESSORIES: ENCLOSED CABIN CABIN HEATING AIR CONDITIONING ENGINE MB 904 LA 90 kW/2200 rpm HYDRAULICS FOR MIXER CASSETTE DIMENSIONS Length 7350 mm Width 1800 mm Height (+/- 100 mm) 2150 mm Wheel base 3550 mm Track 1500 mm Ground clearance 280 mm WEIGHT Operating 7400 kg Max. payload 6000 kg TURNING RADIUS Outer 6100 mm Inner 3950 mm PERFORMANCE CURVE 4800031 1st gear max. 5 km/h 2nd gear 12 km/h 3rd gear 25 km/h Max. tractive effort 90 kN TRANSMISSION Dana Spicer powershift 3 speeds forwards and reverse 4-wheel drive AXLES Planetary type rear axle fixed front axle oscillation +/- 10o TYRES 10.00 - 20 PR 16 BRAKES Service brake: hydraulically powered two-circuit oil immersed multidisc brakes in both axles Safety/Parking brake: hydraulically released fail-safe - type brake
