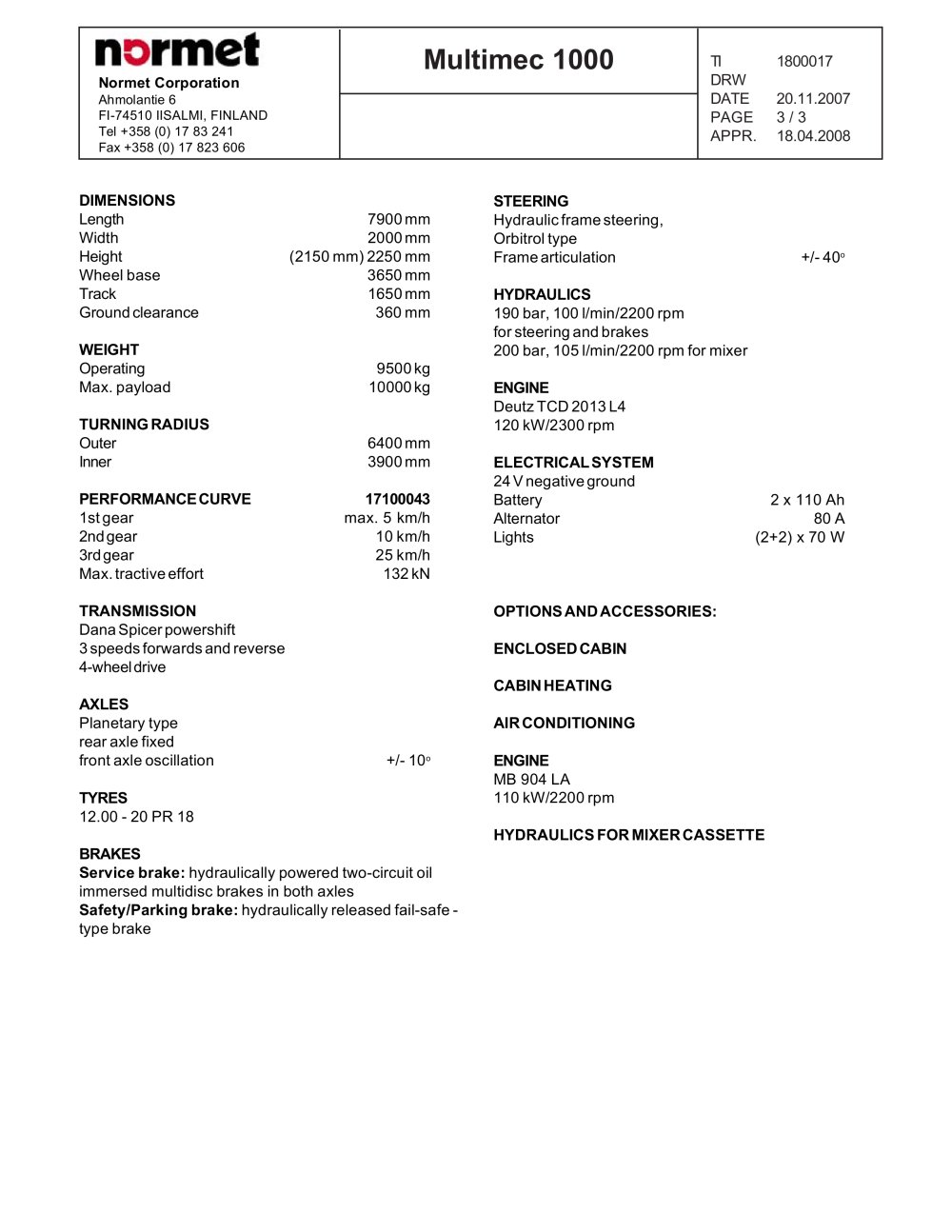

Multimec 1000 TI 1800017 DRW DATE 20.11.2007 PAGE 3 / 3 APPR. 18.04.2008 Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 STEERING Hydraulic frame steering, Orbitrol type Frame articulation +/- 40o HYDRAULICS 190 bar, 100 l/min/2200 rpm for steering and brakes 200 bar, 105 l/min/2200 rpm for mixer ENGINE Deutz TCD 2013 L4 120 kW/2300 rpm ELECTRICAL SYSTEM 24 V negative ground Battery 2 x 110 Ah Alternator 80 A Lights (2+2) x 70 W OPTIONS AND ACCESSORIES: ENCLOSED CABIN CABIN HEATING AIR CONDITIONING ENGINE MB 904 LA 110 kW/2200 rpm HYDRAULICS FOR MIXER CASSETTE DIMENSIONS Length 7900 mm Width 2000 mm Height (2150 mm) 2250 mm Wheel base 3650 mm Track 1650 mm Ground clearance 360 mm WEIGHT Operating 9500 kg Max. payload 10000 kg TURNING RADIUS Outer 6400 mm Inner 3900 mm PERFORMANCE CURVE 17100043 1st gear max. 5 km/h 2nd gear 10 km/h 3rd gear 25 km/h Max. tractive effort 132 kN TRANSMISSION Dana Spicer powershift 3 speeds forwards and reverse 4-wheel drive AXLES Planetary type rear axle fixed front axle oscillation +/- 10o TYRES 12.00 - 20 PR 18 BRAKES Service brake: hydraulically powered two-circuit oil immersed multidisc brakes in both axles Safety/Parking brake: hydraulically released fail-safe - type brake
