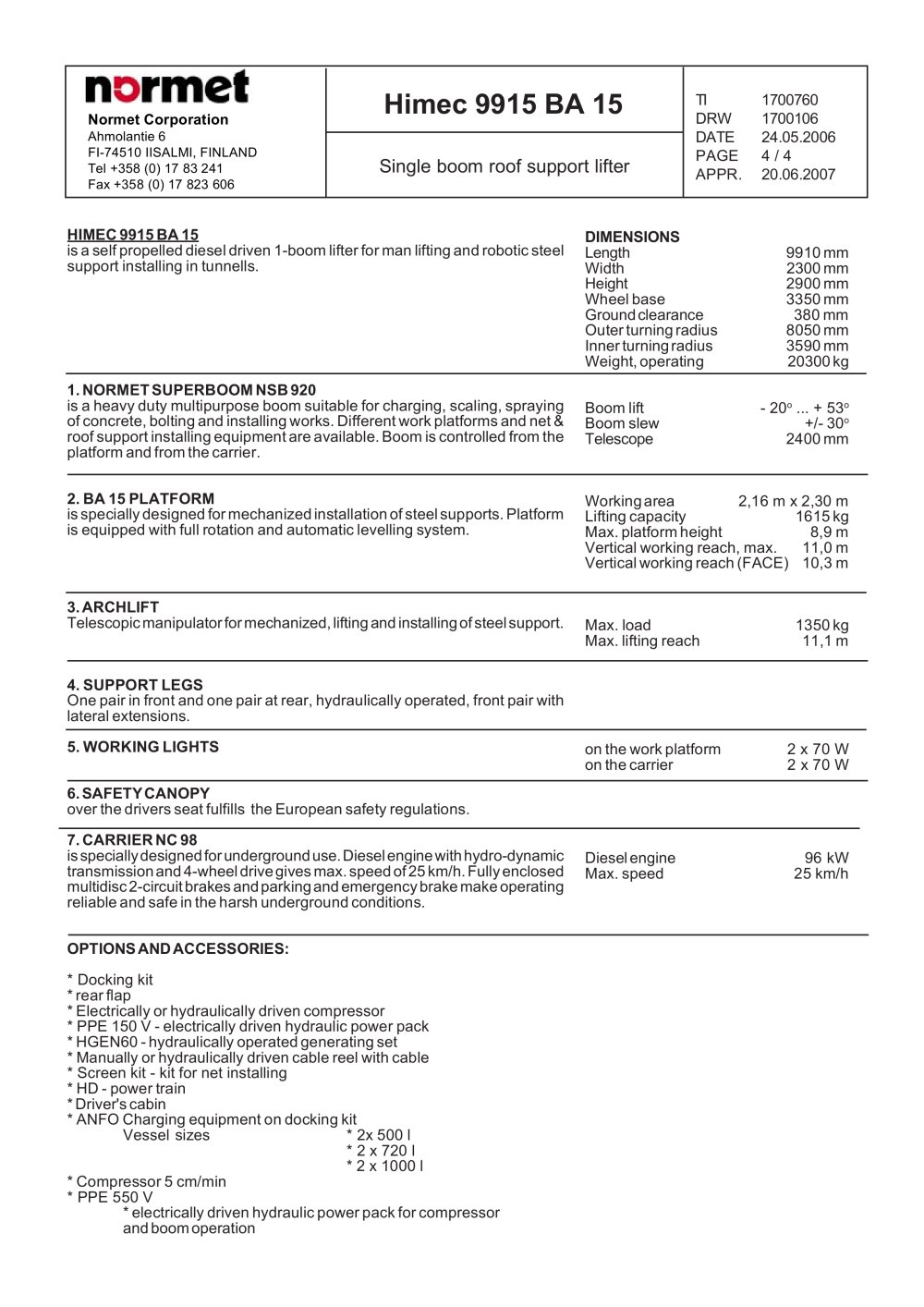

Himec 9915 BA 15 TI 1700760 DRW 1700106 DATE 24.05.2006 PAGE 4 / 4 Single boom roof support lifter APPR. 20.06.2007 Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 HIMEC 9915 BA 15 is a self propelled diesel driven 1-boom lifter for man lifting and robotic steel support installing in tunnells. 1. NORMET SUPERBOOM NSB 920 is a heavy duty multipurpose boom suitable for charging, scaling, spraying of concrete, bolting and installing works. Different work platforms and net & roof support installing equipment are available. Boom is controlled from the platform and from the carrier. 2. BA 15 PLATFORM is specially designed for mechanized installation of steel supports. Platform is equipped with full rotation and automatic levelling system. 3. ARCHLIFT Telescopic manipulator for mechanized, lifting and installing of steel support. 4. SUPPORT LEGS One pair in front and one pair at rear, hydraulically operated, front pair with lateral extensions. 5. WORKING LIGHTS 6. SAFETY CANOPY over the drivers seat fulfills the European safety regulations. 7. CARRIER NC 98 is specially designed for underground use. Diesel engine with hydro-dynamic transmission and 4-wheel drive gives max. speed of 25 km/h. Fully enclosed multidisc 2-circuit brakes and parking and emergency brake make operating reliable and safe in the harsh underground conditions. OPTIONS AND ACCESSORIES: * Docking kit * rear flap * Electrically or hydraulically driven compressor * PPE 150 V - electrically driven hydraulic power pack * HGEN60 - hydraulically operated generating set * Manually or hydraulically driven cable reel with cable * Screen kit - kit for net installing * HD - power train * Driver's cabin * ANFO Charging equipment on docking kit Vessel sizes * 2x 500 l * 2 x 720 l * 2 x 1000 l * Compressor 5 cm/min * PPE 550 V * electrically driven hydraulic power pack for compressor and boom operation DIMENSIONS Length 9910 mm Width 2300 mm Height 2900 mm Wheel base 3350 mm Ground clearance 380 mm Outer turning radius 8050 mm Inner turning radius 3590 mm Weight, operating 20300 kg Boom lift - 20o ... + 53o Boom slew +/- 30o Telescope 2400 mm Working area 2,16 m x 2,30 m Lifting capacity 1615 kg Max. platform height 8,9 m Vertical working reach, max. 11,0 m Vertical working reach (FACE) 10,3 m Max. load 1350 kg Max. lifting reach 11,1 m on the work platform 2 x 70 W on the carrier 2 x 70 W Diesel engine 96 kW Max. speed 25 km/h
