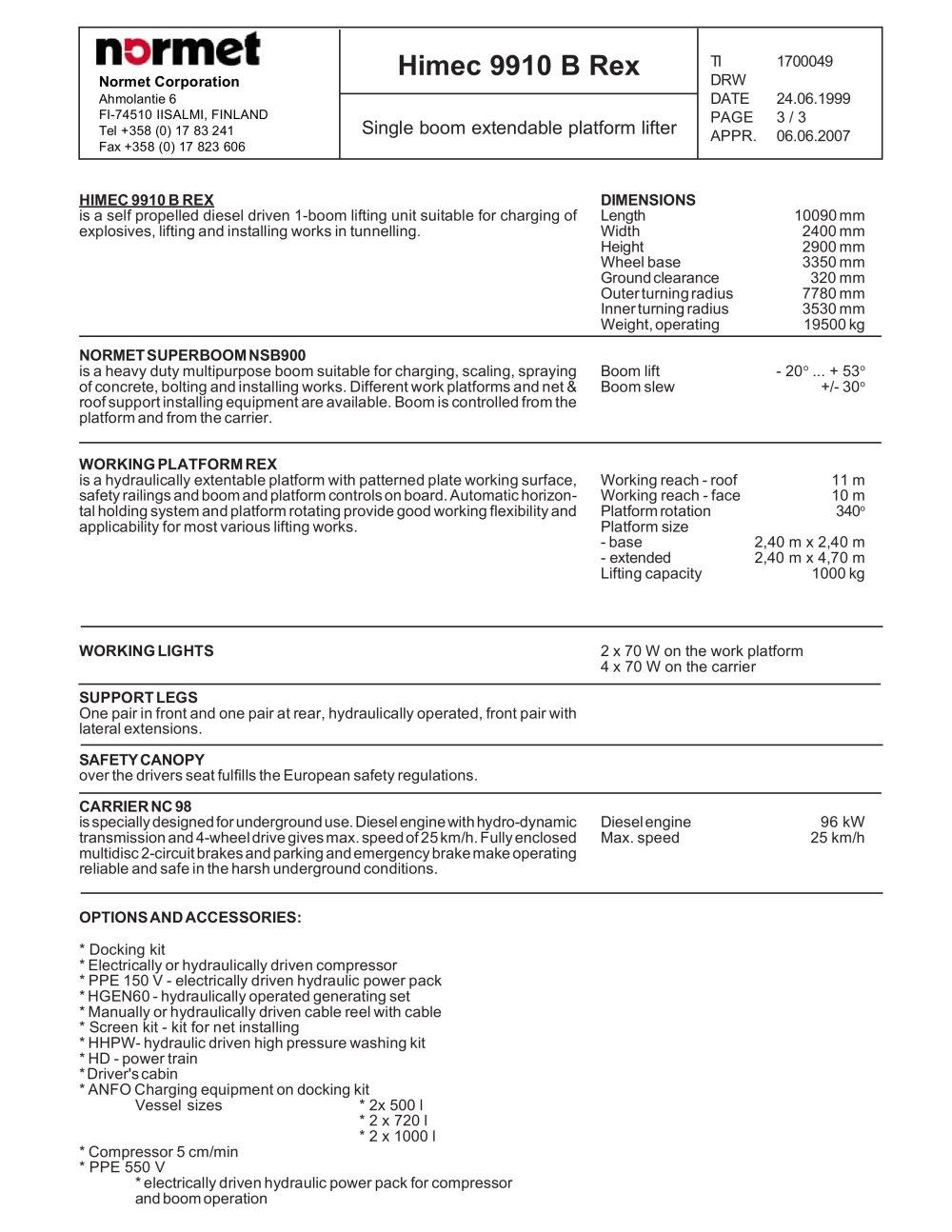

Himec 9910 B Rex TI 1700049 DRW DATE 24.06.1999 PAGE 3 / 3 Single boom extendable platform lifter APPR. 06.06.2007 Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 HIMEC 9910 B REX is a self propelled diesel driven 1-boom lifting unit suitable for charging of explosives, lifting and installing works in tunnelling. NORMET SUPERBOOM NSB900 is a heavy duty multipurpose boom suitable for charging, scaling, spraying of concrete, bolting and installing works. Different work platforms and net & roof support installing equipment are available. Boom is controlled from the platform and from the carrier. WORKING PLATFORM REX is a hydraulically extentable platform with patterned plate working surface, safety railings and boom and platform controls on board. Automatic horizontal holding system and platform rotating provide good working flexibility and applicability for most various lifting works. WORKING LIGHTS SUPPORT LEGS One pair in front and one pair at rear, hydraulically operated, front pair with lateral extensions. SAFETY CANOPY over the drivers seat fulfills the European safety regulations. CARRIER NC 98 is specially designed for underground use. Diesel engine with hydro-dynamic transmission and 4-wheel drive gives max. speed of 25 km/h. Fully enclosed multidisc 2-circuit brakes and parking and emergency brake make operating reliable and safe in the harsh underground conditions. OPTIONS AND ACCESSORIES: * Docking kit * Electrically or hydraulically driven compressor * PPE 150 V - electrically driven hydraulic power pack * HGEN60 - hydraulically operated generating set * Manually or hydraulically driven cable reel with cable * Screen kit - kit for net installing * HHPW- hydraulic driven high pressure washing kit * HD - power train * Driver's cabin * ANFO Charging equipment on docking kit Vessel sizes * 2x 500 l * 2 x 720 l * 2 x 1000 l * Compressor 5 cm/min * PPE 550 V * electrically driven hydraulic power pack for compressor and boom operation DIMENSIONS Length 10090 mm Width 2400 mm Height 2900 mm Wheel base 3350 mm Ground clearance 320 mm Outer turning radius 7780 mm Inner turning radius 3530 mm Weight, operating 19500 kg Boom lift - 20o ... + 53o Boom slew +/- 30o Working reach - roof 11 m Working reach - face 10 m Platform rotation 340o Platform size - base 2,40 m x 2,40 m - extended 2,40 m x 4,70 m Lifting capacity 1000 kg 2 x 70 W on the work platform 4 x 70 W on the carrier Diesel engine 96 kW Max. speed 25 km/h
