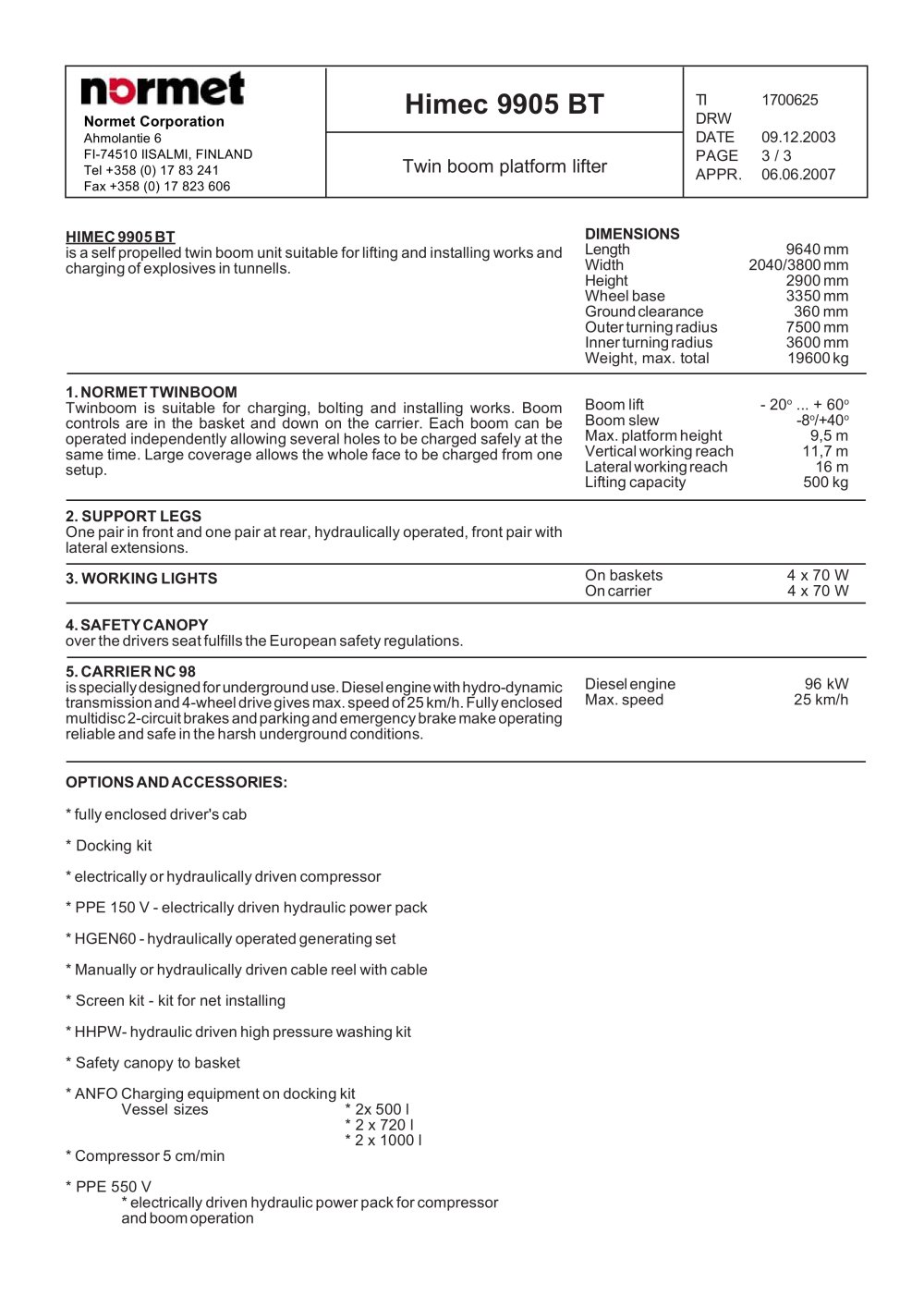

Himec 9905 BT - 3 Pages

Himec 9905 BT TI 1700625
DRW
DATE 09.12.2003
PAGE 3 / 3
Twin boom platform lifter APPR. 06.06.2007
Normet Corporation
Ahmolantie 6
FI-74510 IISALMI, FINLAND
Tel +358 (0) 17 83 241
Fax +358 (0) 17 823 606
HIMEC 9905 BT
is a self propelled twin boom unit suitable for lifting and installing works and
charging of explosives in tunnells.
1. NORMET TWINBOOM
Twinboom is suitable for charging, bolting and installing works. Boom
controls are in the basket and down on the carrier. Each boom can be
operated independently allowing several holes to be charged safely at the
same time. Large coverage allows the whole face to be charged from one
setup.
2. SUPPORT LEGS
One pair in front and one pair at rear, hydraulically operated, front pair with
lateral extensions.
3. WORKING LIGHTS
4. SAFETY CANOPY
over the drivers seat fulfills the European safety regulations.
5. CARRIER NC 98
is specially designed for underground use. Diesel engine with hydro-dynamic
transmission and 4-wheel drive gives max. speed of 25 km/h. Fully enclosed
multidisc 2-circuit brakes and parking and emergency brake make operating
reliable and safe in the harsh underground conditions.
OPTIONS AND ACCESSORIES:
* fully enclosed driver's cab
* Docking kit
* electrically or hydraulically driven compressor
* PPE 150 V - electrically driven hydraulic power pack
* HGEN60 - hydraulically operated generating set
* Manually or hydraulically driven cable reel with cable
* Screen kit - kit for net installing
* HHPW- hydraulic driven high pressure washing kit
* Safety canopy to basket
* ANFO Charging equipment on docking kit
Vessel sizes * 2x 500 l
* 2 x 720 l
* 2 x 1000 l
* Compressor 5 cm/min
* PPE 550 V
* electrically driven hydraulic power pack for compressor
and boom operation
DIMENSIONS
Length 9640 mm
Width 2040/3800 mm
Height 2900 mm
Wheel base 3350 mm
Ground clearance 360 mm
Outer turning radius 7500 mm
Inner turning radius 3600 mm
Weight, max. total 19600 kg
Boom lift - 20o ... + 60o
Boom slew -8o/+40o
Max. platform height 9,5 m
Vertical working reach 11,7 m
Lateral working reach 16 m
Lifting capacity 500 kg
On baskets 4 x 70 W
On carrier 4 x 70 W
Diesel engine 96 kW
Max. speed 25 km/h

Himec 9905 BT
  1. P. 1

  2. P. 2

    Himec 9905 BT TI 1700625DRWDATE 09.12.2003PAGE 2 / 3Twin boom platform lifter APPR. 06.06.2007Normet CorporationAhmolantie 6FI-74510 IISALMI, FINLANDTel...
  3. P. 3

    Himec 9905 BT TI 1700625DRWDATE 09.12.2003PAGE 1 / 3Twin boom platform lifter APPR. 06.06.2007Normet CorporationAhmolantie 6FI-74510 IISALMI, FINLANDTel...
