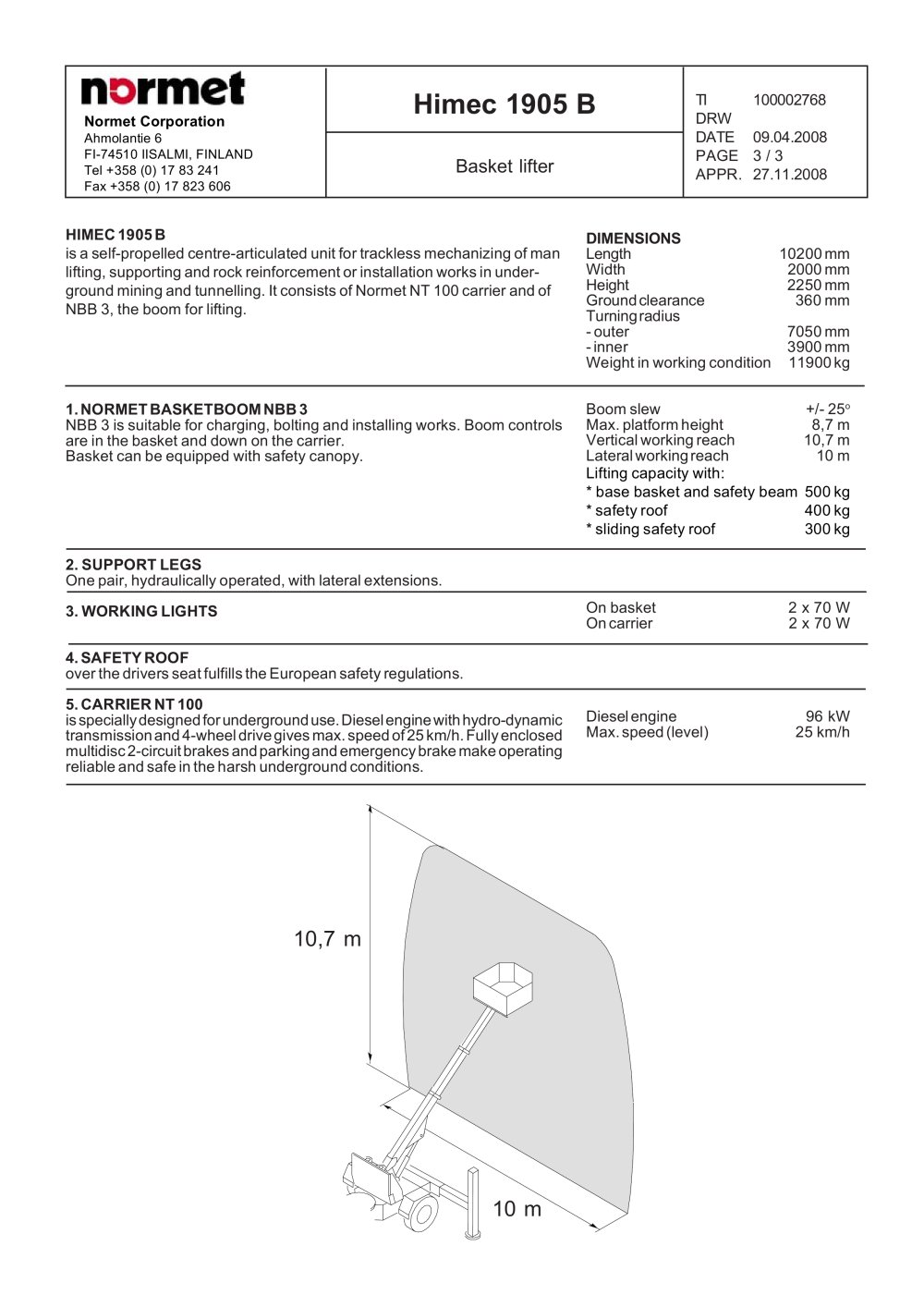

Himec 1905 B TI 100002768 DRW DATE 09.04.2008 PAGE 3 / 3 Basket lifter APPR. 27.11.2008 Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 HIMEC 1905 B is a self-propelled centre-articulated unit for trackless mechanizing of man lifting, supporting and rock reinforcement or installation works in underground mining and tunnelling. It consists of Normet NT 100 carrier and of NBB 3, the boom for lifting. 1. NORMET BASKETBOOM NBB 3 NBB 3 is suitable for charging, bolting and installing works. Boom controls are in the basket and down on the carrier. Basket can be equipped with safety canopy. 2. SUPPORT LEGS One pair, hydraulically operated, with lateral extensions. 3. WORKING LIGHTS 4. SAFETY ROOF over the drivers seat fulfills the European safety regulations. 5. CARRIER NT 100 is specially designed for underground use. Diesel engine with hydro-dynamic transmission and 4-wheel drive gives max. speed of 25 km/h. Fully enclosed multidisc 2-circuit brakes and parking and emergency brake make operating reliable and safe in the harsh underground conditions. 10,7 m 10 m DIMENSIONS Length 10200 mm Width 2000 mm Height 2250 mm Ground clearance 360 mm Turning radius - outer 7050 mm - inner 3900 mm Weight in working condition 11900 kg Boom slew +/- 25o Max. platform height 8,7 m Vertical working reach 10,7 m Lateral working reach 10 m Lifting capacity with: * base basket and safety beam 500 kg * safety roof 400 kg * sliding safety roof 300 kg On basket 2 x 70 W On carrier 2 x 70 W Diesel engine 96 kW Max. speed (level) 25 km/h
