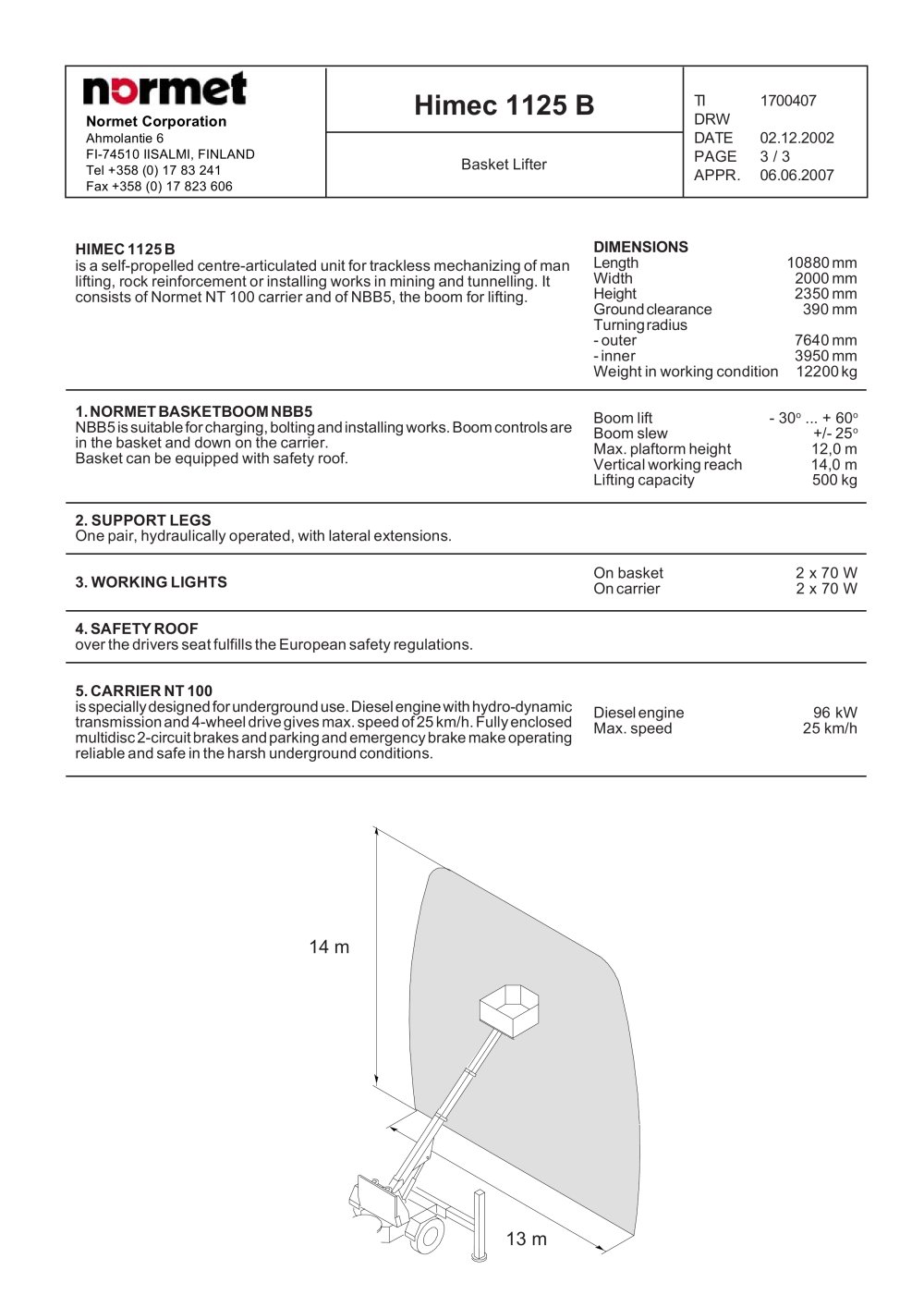

Himec 1125 B Basket Lifter TI 1700407 DRW DATE 02.12.2002 PAGE 3 / 3 APPR. 06.06.2007 Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 14 m 13 m DIMENSIONS Length 10880 mm Width 2000 mm Height 2350 mm Ground clearance 390 mm Turning radius - outer 7640 mm - inner 3950 mm Weight in working condition 12200 kg Boom lift - 30o ... + 60o Boom slew +/- 25o Max. plaftorm height 12,0 m Vertical working reach 14,0 m Lifting capacity 500 kg On basket 2 x 70 W On carrier 2 x 70 W Diesel engine 96 kW Max. speed 25 km/h HIMEC 1125 B is a self-propelled centre-articulated unit for trackless mechanizing of man lifting, rock reinforcement or installing works in mining and tunnelling. It consists of Normet NT 100 carrier and of NBB5, the boom for lifting. 1. NORMET BASKETBOOM NBB5 NBB5 is suitable for charging, bolting and installing works. Boom controls are in the basket and down on the carrier. Basket can be equipped with safety roof. 2. SUPPORT LEGS One pair, hydraulically operated, with lateral extensions. 3. WORKING LIGHTS 4. SAFETY ROOF over the drivers seat fulfills the European safety regulations. 5. CARRIER NT 100 is specially designed for underground use. Diesel engine with hydro-dynamic transmission and 4-wheel drive gives max. speed of 25 km/h. Fully enclosed multidisc 2-circuit brakes and parking and emergency brake make operating reliable and safe in the harsh underground conditions.
