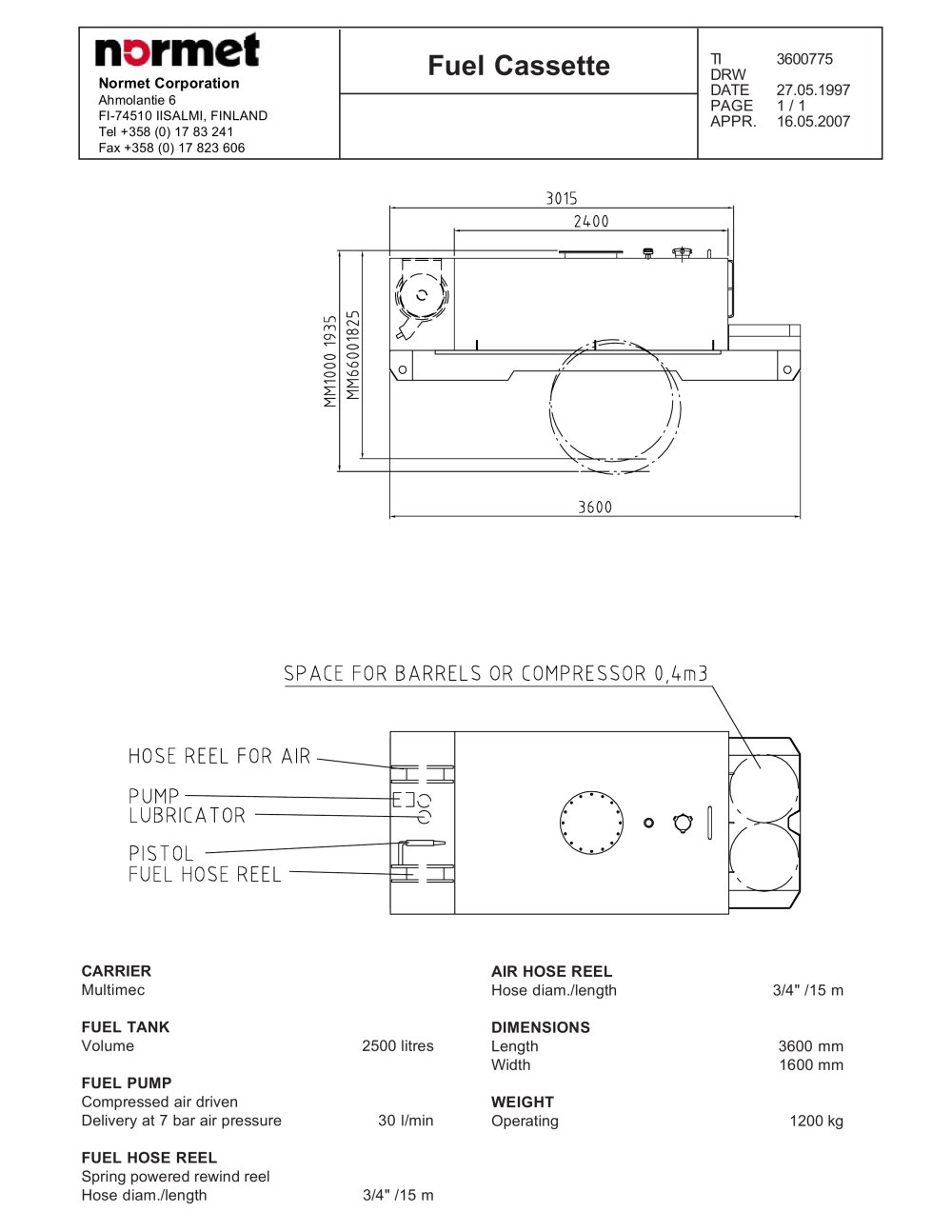

Fuel Cassette TI 3600775 DRW DATE 27.05.1997 PAGE 1 / 1 APPR. 16.05.2007 Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 CARRIER Multimec FUEL TANK Volume 2500 litres FUEL PUMP Compressed air driven Delivery at 7 bar air pressure 30 l/min FUEL HOSE REEL Spring powered rewind reel Hose diam./length 3/4" /15 m AIR HOSE REEL Hose diam./length 3/4" /15 m DIMENSIONS Length 3600 mm Width 1600 mm WEIGHT Operating 1200 kg
